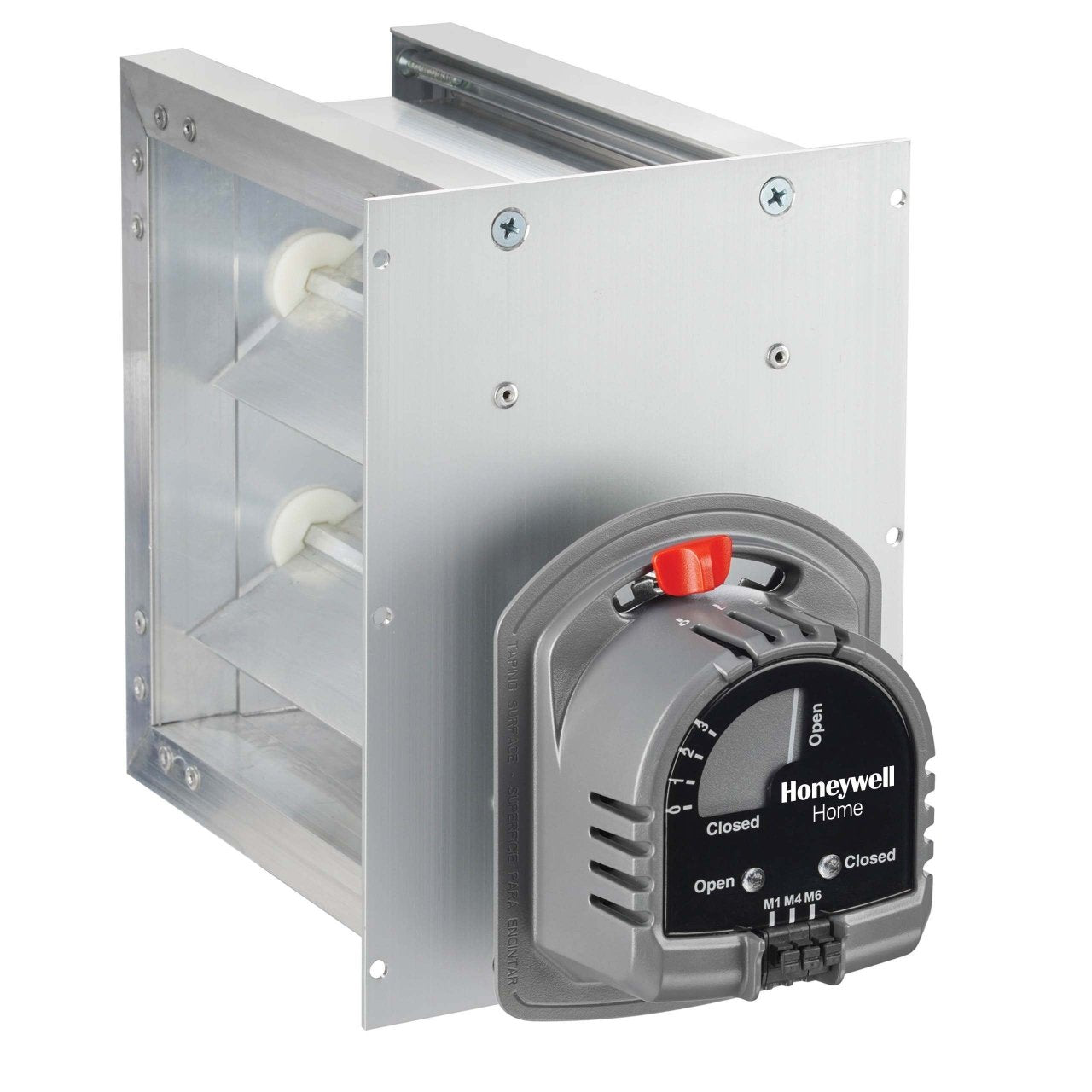

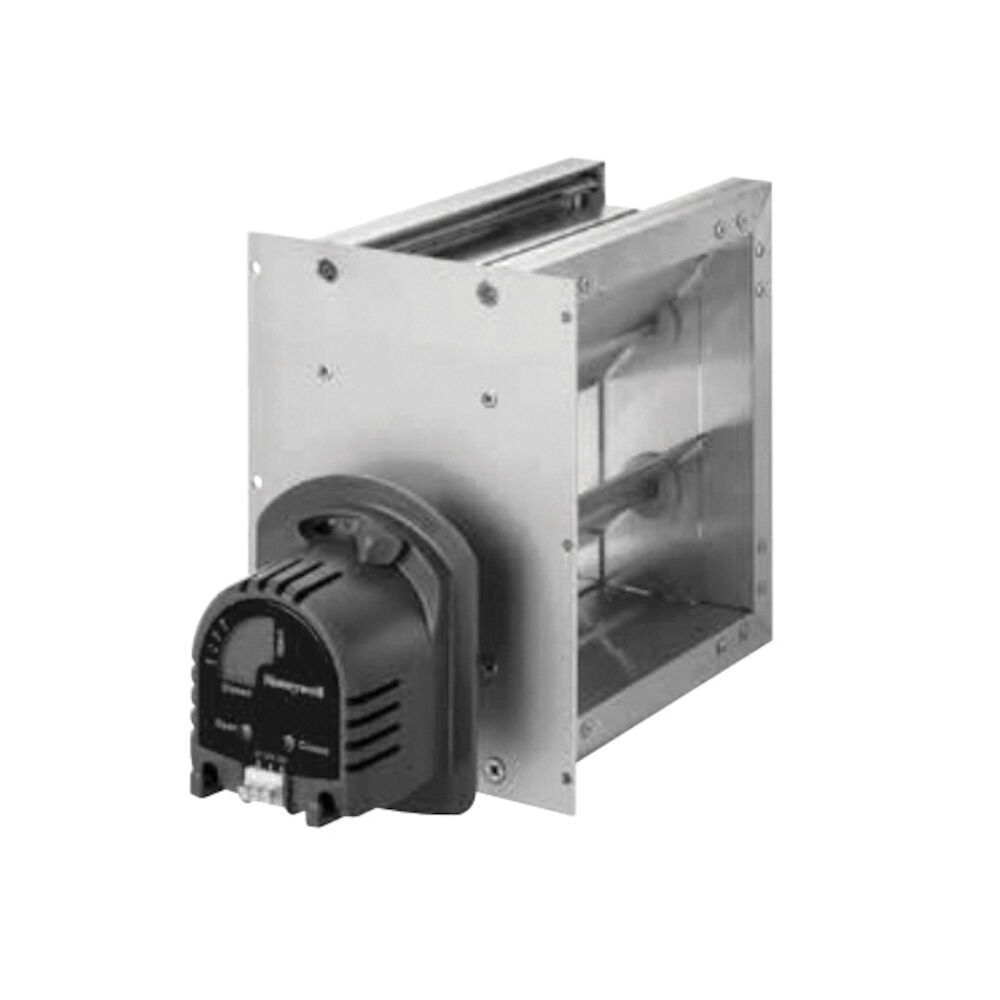

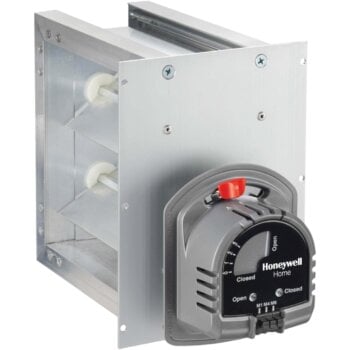

Honeywell ZD6X12TZ/U Zone Damper

Product Description

The Honeywell ZD6X12TZ/U is a zone damper that operates with a power close and spring open mechanism. It utilizes a twenty-four volt motor for efficient air management in HVAC systems. Commonly used in TrueZONE and electronic zoning systems, this damper is designed for applications where a normally-open damper is required.

• Durable aluminum frame
• Visual position indicator for monitoring status
• Parallel blade construction

Product Highlights

This zone damper is perfect for HVAC zoning and comes with a straightforward installation process.

Product Information

Standard Information

• Brand: Honeywell Home
• Manufacturer Part Number: ZD6X12TZ/U

Technical Specifications

• Damper Type: Zone
• Damper Duct Shape Type: Rectangular
• Activation: Electric
• Input Voltage: 24 VAC
• Actuator Power Consumption: 8 VA
• Output Current: 0.32 A
• Rotation Angle: 90 degrees
• Motor Type: Power Open/Spring Closed
• Blade Action: Parallel
• Timing: 30 seconds Power Open / 10 seconds Spring Return
• Operating Temperature: 40 to 140 degrees F
• Material: Aluminum
• Blade Material: Aluminum
• Mounting Type: Bottom Mount
• Dimensions: 6 x 12 inches
• Product Height: 12 inches
• Product Length: 6 inches
• Product Width: 4 inches
• Weight: 5.1 lbs
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
• Actuator Housing Material: Molded Plastic
• Color: Aluminum
