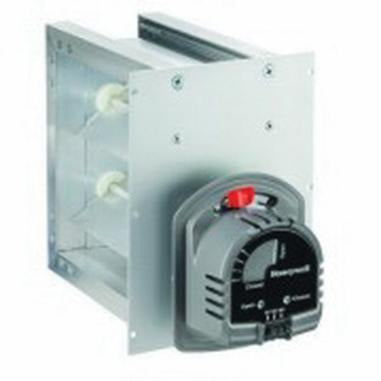

Honeywell ZD18X12TZ/U Truzone Parallel Blade Rectangular Damper 24 V (18 x 12)

Product Description

Honeywell ZD18X12TZ/U is a TruZone parallel blade rectangular zone damper with a 24 V motor, sized 18 x 12 inches, for controlling airflow in HVAC zoning systems. It provides power-close, spring-open operation with a 71 in-lb spring return motor, 8 VA rating, and push-terminal electrical connection. The damper has an extruded aluminum frame and blades, adjustable closed-position stops, a 1 in-WC pressure rating, and operates from 40 to 140 degrees F.

• Power-close, spring-open operation; 24 V motor, 71 in-lb torque, 8 VA rating
• Extruded aluminum frame and parallel blades; rated up to 1 in-WC and less than 1% leakage at 1/2 in-WC
• Push-terminal two-wire installation with optional third wire for LED; 30 s power open and 10 s spring return timing; mountable in any orientation

Product Highlights

18 x 12 in TruZone parallel blade zone damper with 24 V spring-return motor, extruded aluminum construction, 1 in-WC rating

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD18X12TZ/U
