Honeywell ZD16X10/U Damper

Product Description

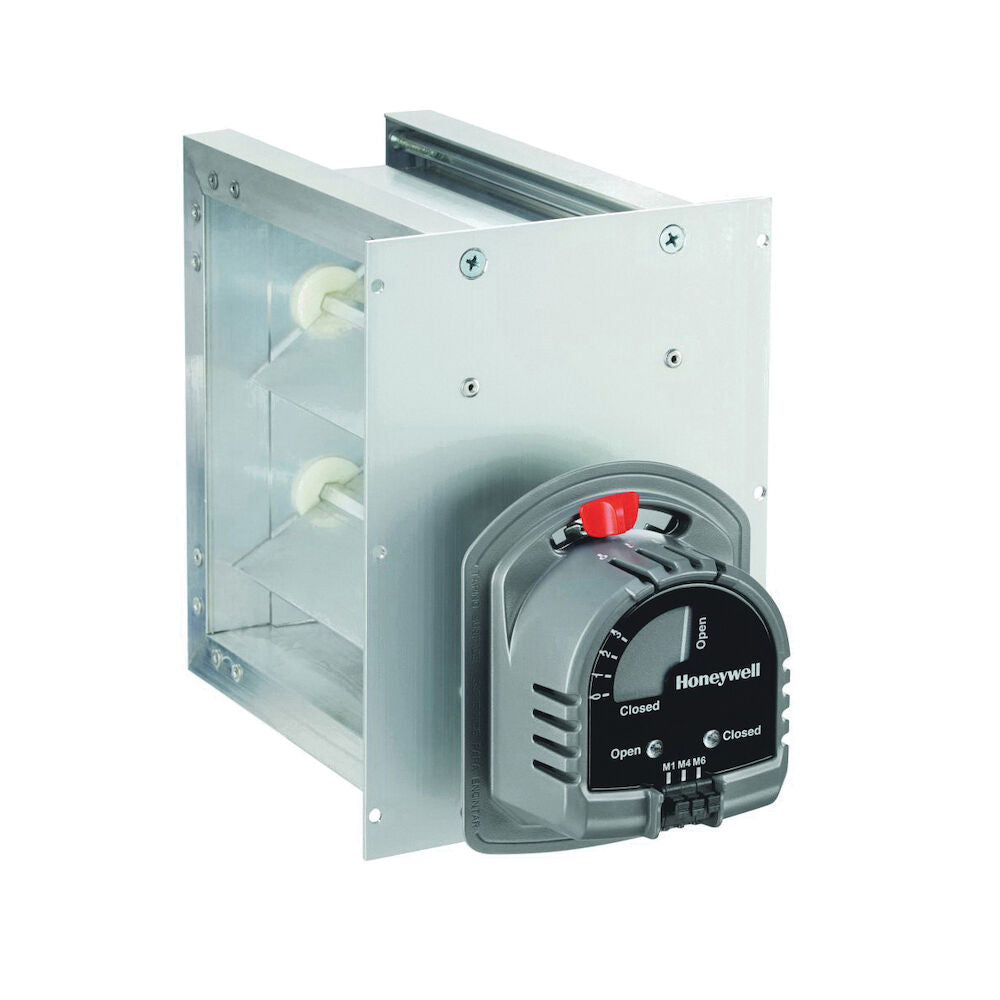

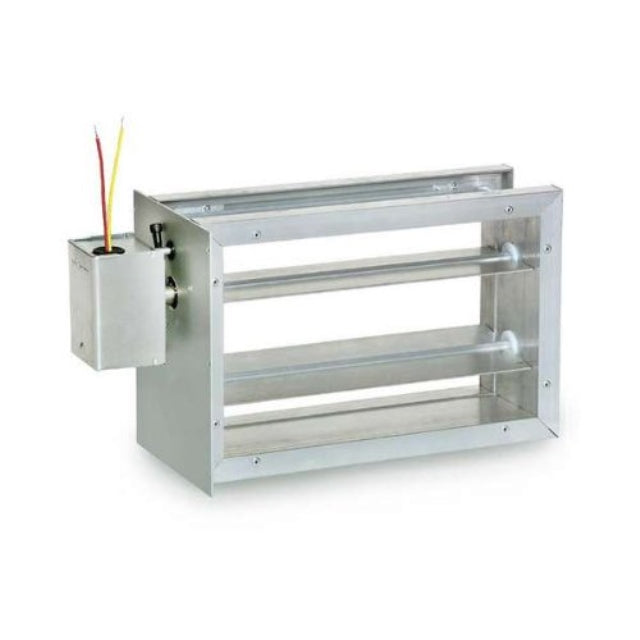

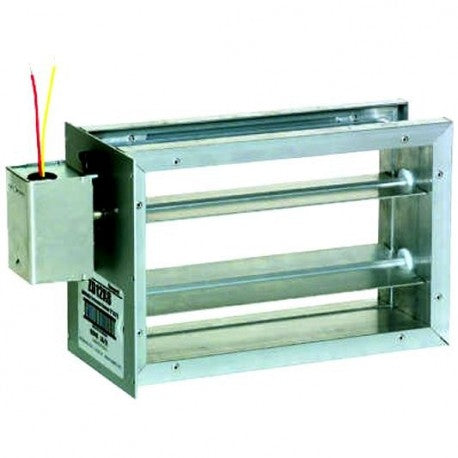

The Honeywell ZD16X10/U is a damper designed for HVAC systems. This unit features a power-close and spring-open operation, utilizing a twenty-four volt motor to effectively control airflow in electronic zoning setups like TrueZONE. It has a rectangular shape with a robust aluminum frame and parallel blade design, ensuring durability and performance.

• Power-close and spring-open motor for efficient operation.
• Compatible with HVAC zoning systems.
• Includes a visual position indicator for ease of monitoring.

Product Highlights

This product is suited for efficient flow management in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: ZD16X10/U

Technical Specifications

• Shape: Rectangular
• Voltage Rating: 24 VAC
• Amperage Rating: 0.32 A
• Blade Action: Parallel
• Motor Type: Power Closed, Spring Open
• Series: ZD Series
• Operating Temperature: 32 to 120 degF
• Timing: 30 s
• Actuator Location: Side Mount
• Number of Wires: 2-Wire
• Power Options: Power Close, Spring Open
• Size: 16 inches x 10 inches
• Style: New Construction
• Type: Supply Air Damper
• Indicator Type: LED
• Shipping Height: 7 inches
• Shipping Length: 24 inches
• Shipping Weight: 6 lb
• Shipping Width: 10.25 inches
• Application: Parallel Blade Damper
• Used With: Honeywell zoning systems
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
• Material: Aluminum
• Rotation Angle: 90 deg
• Domestic / Import: Import
