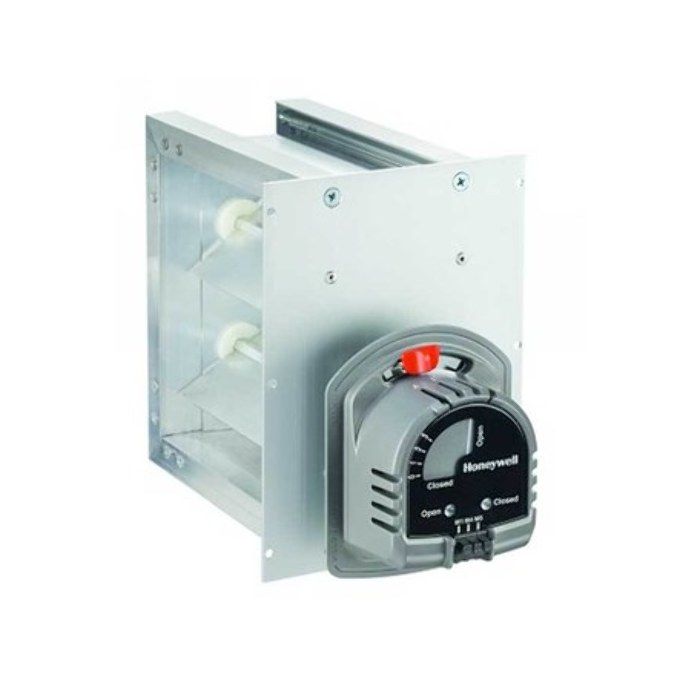

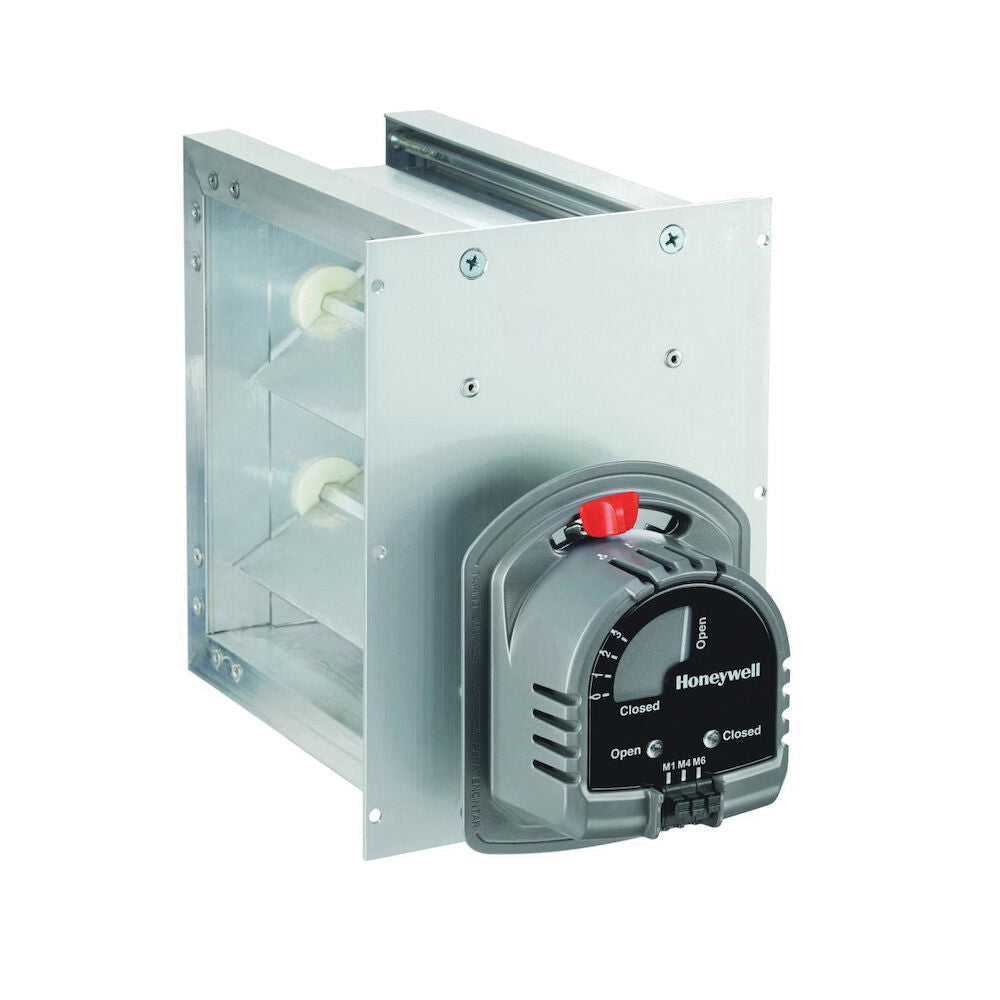

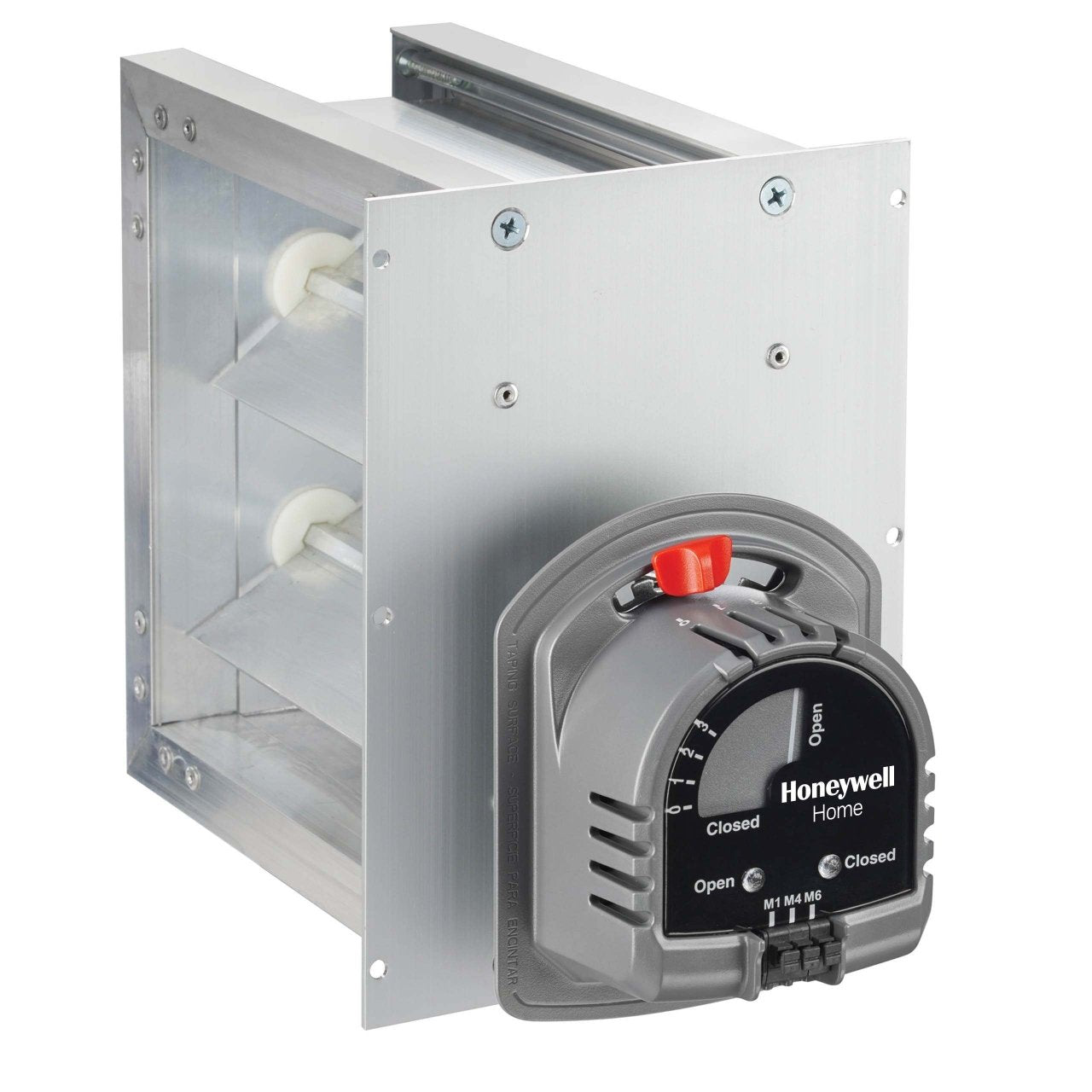

HONEYWELL ZD12X16TZ/U TrueZONE Damper

Product Description

The HONEYWELL ZD12X16TZ/U is a TrueZONE series damper designed for HVAC systems. This rectangular damper uses a twenty-four volt motor to control airflow effectively. It features a power-close and spring-open operation, making it ideal for normally open applications. The extruded aluminum construction ensures durability, with blades designed for low leakage.

• Power close and spring open operation
• Rectangular shape fits various duct types
• Low leakage design enhances efficiency

Product Highlights

This damper includes a mechanical visual position indicator and LED indication for operational status. It operates efficiently in a temperature range from thirty-two to one hundred twenty degrees Fahrenheit.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: ZD12X16TZ/U

Technical Specifications

• Type: Zoning Damper
• Mounting Type: Bottom Mount
• Damper Duct Shape Type: Rectangular
• Normal Position: Open
• Voltage Rating: 24 VAC
• Amperage Rating: 0.32 A
• Actuator Power Consumption: 8 VA
• Rotation Angle: 90 degrees
• Timing: 30 seconds
• Operating Temperature: 32 to 120 degrees F
• Material: Aluminum
• Blade Material: Aluminum
• Actuator Housing Material: Molded Plastic
• Product Height: 16 inches
• Product Width: 12 inches
• Product Length: 12 inches
• Shipping Height: 15.625 inches
• Shipping Width: 6.5 inches
• Shipping Depth: 16 inches
• Shipping Weight: 3.1 pounds
• Weight: 3.1 pounds
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Activation: Electric
• Motor Type: Power Closed, Spring Open
