Product Description

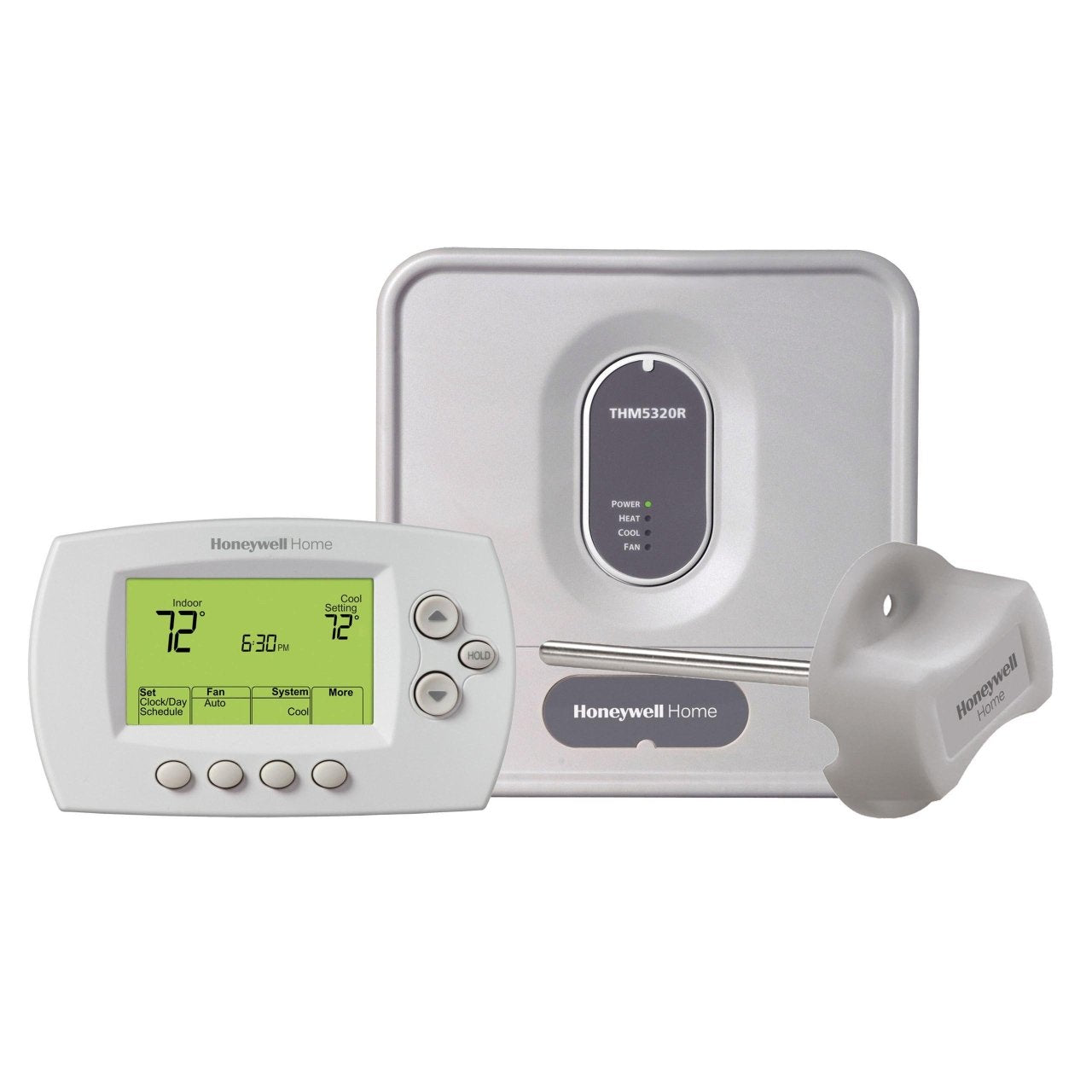

The HONEYWELL YTH6320R1001/U is a wireless programmable Focuspro kit that includes a return air sensor, equipment interface module, and a wireless FocusPRO 5-1-1 programmable thermostat. It uses RedLINK wireless technology and maintains safe indoor temperatures if power is lost at the wireless thermostat.
- Displays outdoor temperature and humidity.
- All HVAC equipment is wired to the module.
- Powered by RedLINK reliability, no interference with other wireless devices.
Product Highlights
This kit simplifies thermostat installation without running new wires. It maintains home energy efficiency with the FocusPRO 6000 programmable wireless thermostat.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: YTH6320R1001/U
Technical Specifications
-

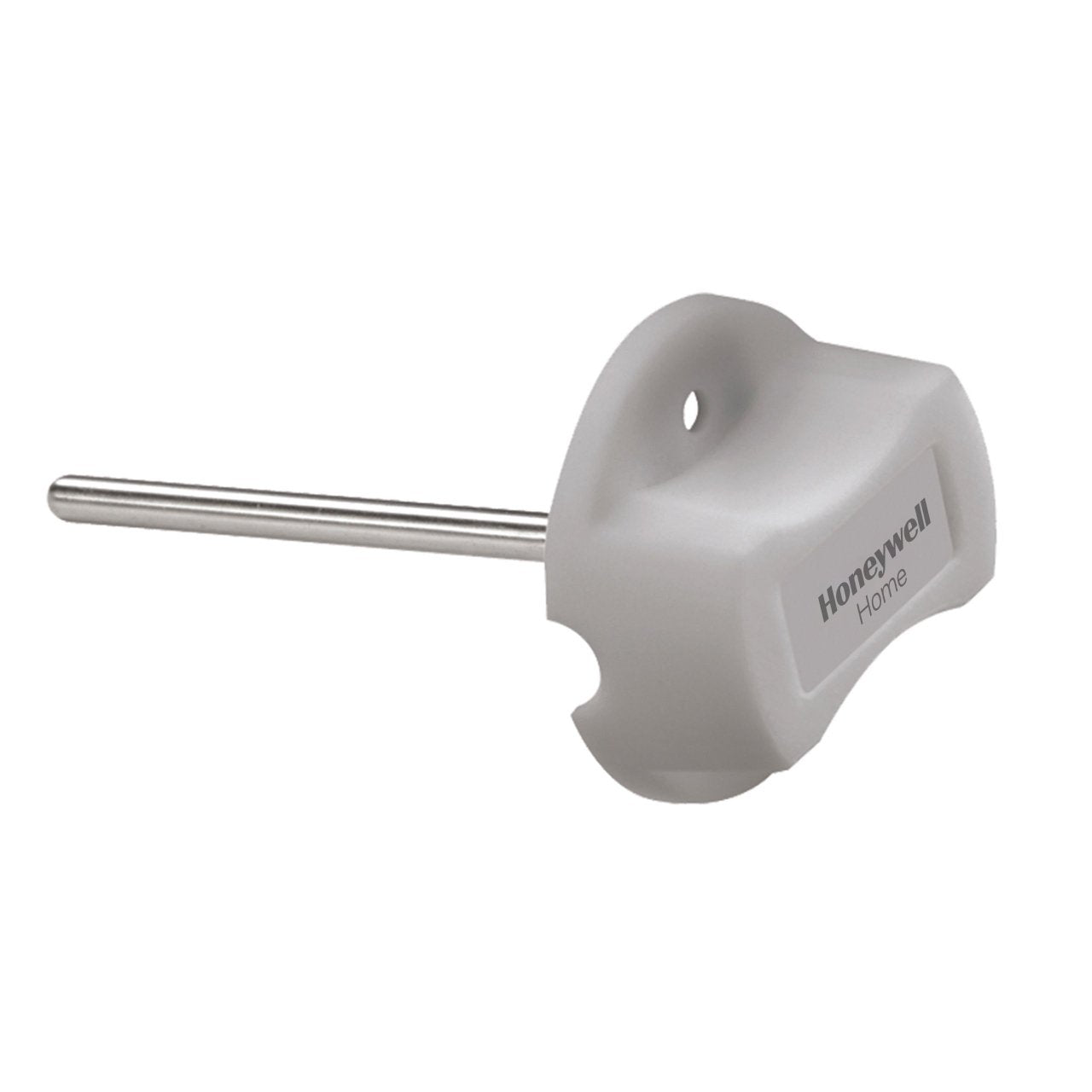

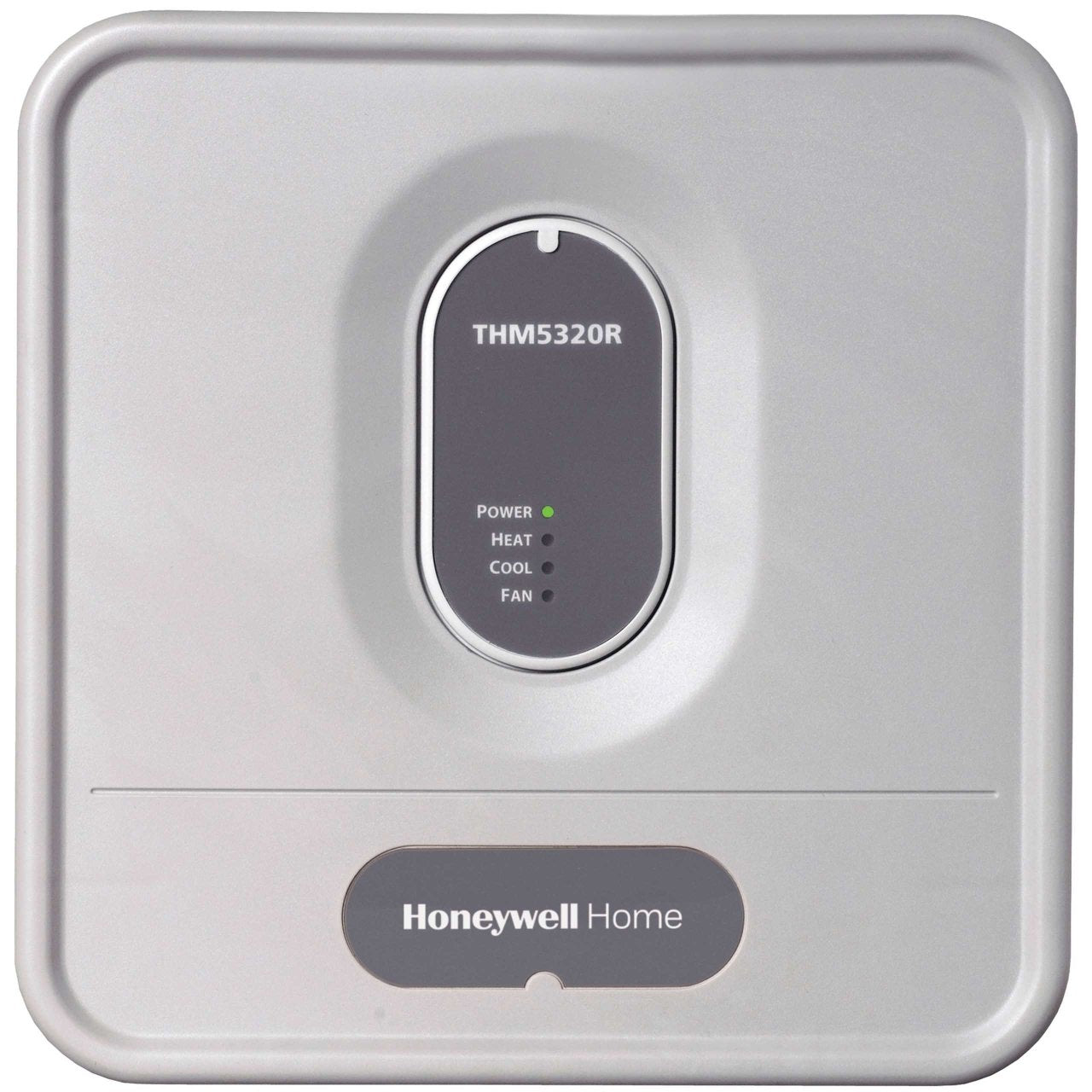

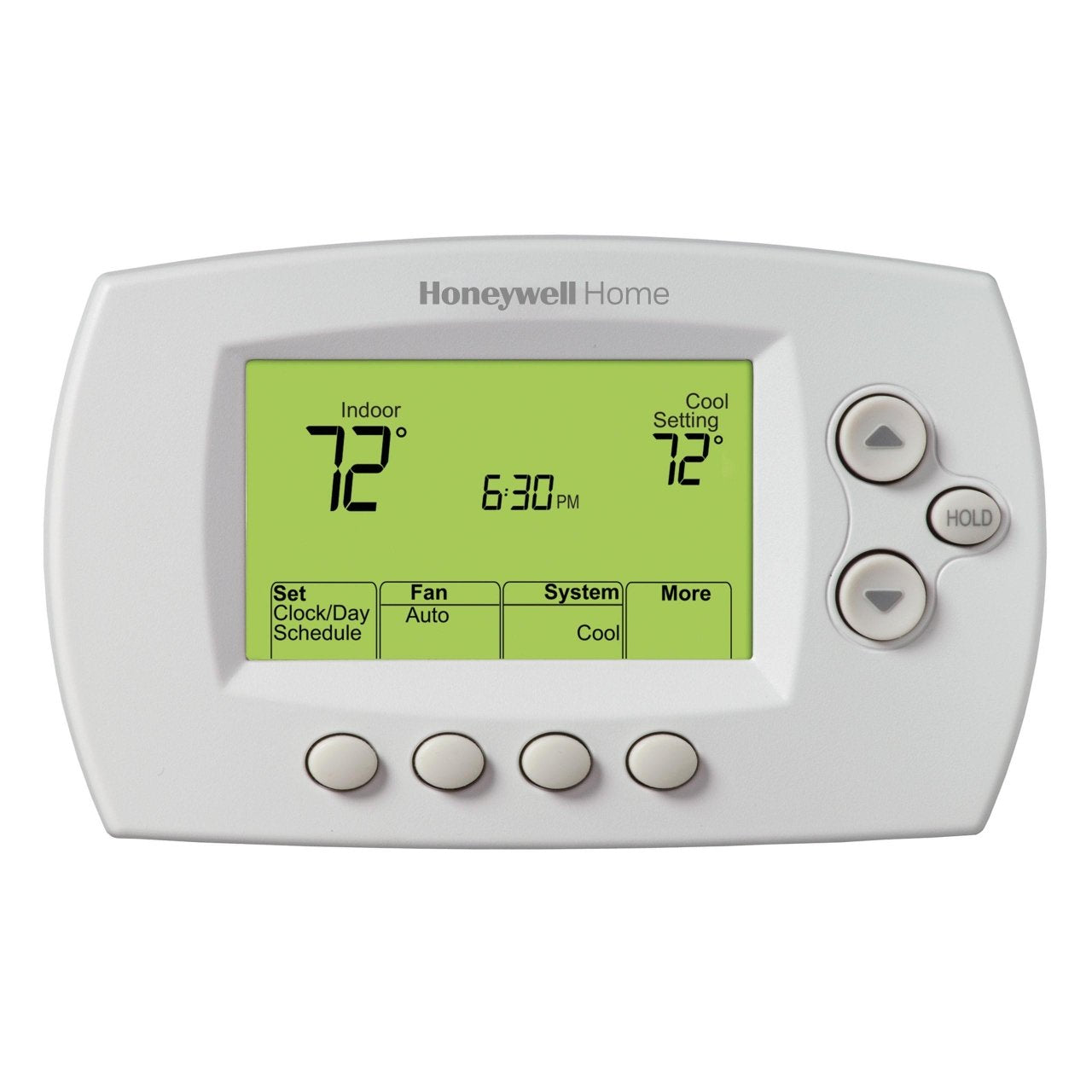

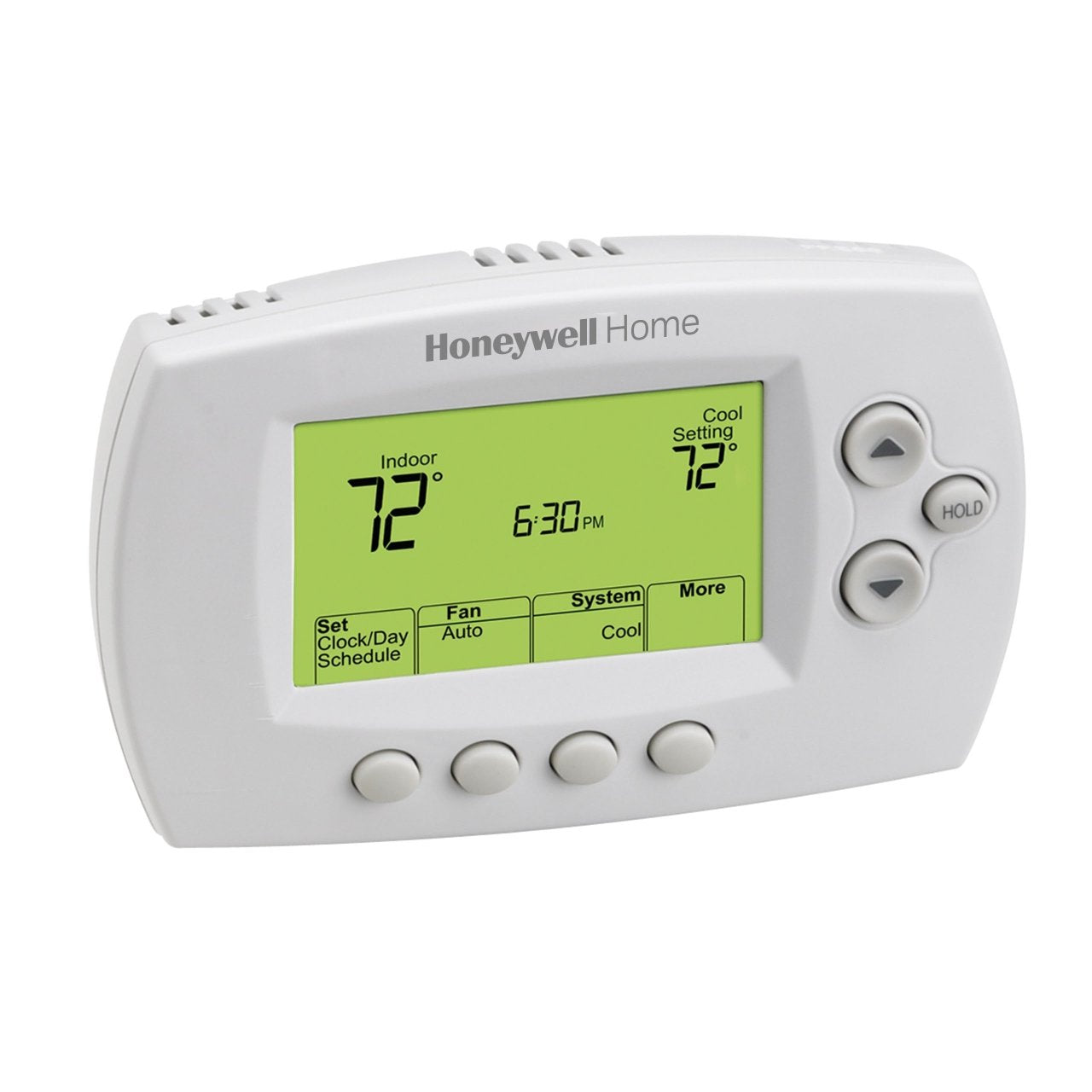

Includes: C7735A1000 Return Air Sensor, THM5320R1000 Equipment Interface Module, TH6320R1004 Wireless FocusPro 5-1-1 Programmable Thermostat
-
Programmability: 5-1-1, 5-2 days Program
-
Series: FocusPro
-
Stages: Up to 2 Heat/2 Cool Conventional Systems, Up to 3 Heat/2 Cool Heat Pump
-
Switch Position: HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON (Fan)
-
Terminal Designation: C, R, RC, RH, W (O/B), W2 (AUX/E), Y, Y2, G, L, RAS
-
Changeover: Auto/Manual
-
Item Name: Wireless Thermostat Kit
-
Power Source: Battery
-
Type: Wireless Programmable Thermostat
-
Application: Conventional Systems, Heat Pumps with Auxiliary Heat
-
Product Features: Standard display size 3.75 sq. in.
-
Thermostat Type: Electronic
-
Smart Home Integration: Yes
-
Display Size: 2.67 sq in
-
Touchscreen: No
-
Display Language: English
-
Displayed Information: Indoor Temperature, Status Display
-
Modes of Operation: Heat, Cool, Auto, Off, Emergency Heat
-
Program Type: 5-1-1 Programmable, 5-2 Programmable
-
Energy Star Certified: No
-
Alerts and Reminders: Battery Replacement, High Indoor Temperature, Low Indoor Temperature
-
Warranty: 5 Years
-
Communication Type: RedLINK
-
WiFi: No
-
WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
-
Z-Wave: No
-
RedLINK: Yes
-
Sensor Type: Thermistor
-
Ambient Operating Temperature (Max): 122 °F, 50 °C
-
Ambient Operating Temperature (Min): 32 °F, 0 °C
-
Differential Temperature: ± 1 °F, ± 0.5 °C
-
Ambient Relative Humidity (Max): 90% RH, Non-Condensing
-
Ambient Relative Humidity (Min): 5% RH, Non-Condensing
-
Demand Response: No
-
Cycle Rate: Heating 4 CPH
-
Electrical Connection Type: Screw terminals
-
Interstage Differential Temperature: 1 to 1.5 °F
-
Mounting Type: Horizontal Mount
-
Number of Fan Speeds: 1
-
Number of Wires: 2
-
Operating Frequency: 50 Hz, 60 Hz
-
Operating Voltage (Max): 24 Vac
-
Scale Markings: Not Applicable
-
Set point Temperature (Max): Heating: 90 °F, Cooling: 99 °F, Heating: 32 °C, Cooling: 37 °C
-
Set point Temperature (Min): Heating: 40 °F, Cooling: 50 °F, Heating: 4.5 °C, Cooling: 10 °C
-
Shipping and Storage Temperature (Max): 120 °F, 49 °C
-
Shipping and Storage Temperature (Min): -20 °F, -29 °C
-
Switch Action: SPST
-
Mounting Location: Wall, Internal
-
Switch Type: Relay
-
Product Height: 3.56 in, 91 mm
-
Product Width: 5.81 in, 147 mm
-
Product Depth: 1.5 in, 38 mm
-
Bulb Diameter: Not Applicable
-
Bulb Length: Not Applicable
-
Hazmat Information: NOT RESTRICTED - SPECIAL PROVISION A123
-
Humidity Rating: 5-90 % RH
-
Ambient Temperature Rating: 32-122 F
-
Amperage Rating: 1 A
-
Auto Changeover: Yes
-
Auxiliary Heat Support: Yes
-
Battery Type: AA
-
Compatible Models: THM6000R7001/U
-
Depth: 1.5 in
-
Display Type: Backlit LCD
-
For Use With: HVAC Systems
-
Function Type: Temperature Control
-
Height: 3.56 in
-
Humidity Control: No
-
Installation / Mounting Type: Wall Mount
-
Number of Stages: 3H/2C
-
Package Quantity: 1
-
Packaged Depth: 14.75 in
-
Packaged Height: 5.25 in
-
Packaged Width: 9.63 in
-
Product Family: FocusPRO 6000
-
Product Weight: 3.2 lbs
-
Setpoint Temperature Range: 40-99 F
-
Shipping Weight: 5 lbs
-
Terminal Designations: C~R~RC~Rh~W-O/B~W2-Aux/E~Y~Y2~G~L~RAS~RAS
-
Voltage Rating: 24 V
-
Width: 5.81 in
-
Dimensions: 3-9/16" x 5-13/16" x 2-1/2"
-
Program: 0
-
Stage: 3 Heat/2 Cool HP
-
Wireless: Yes
-
Item Weight: 3.20 lbs per EA
