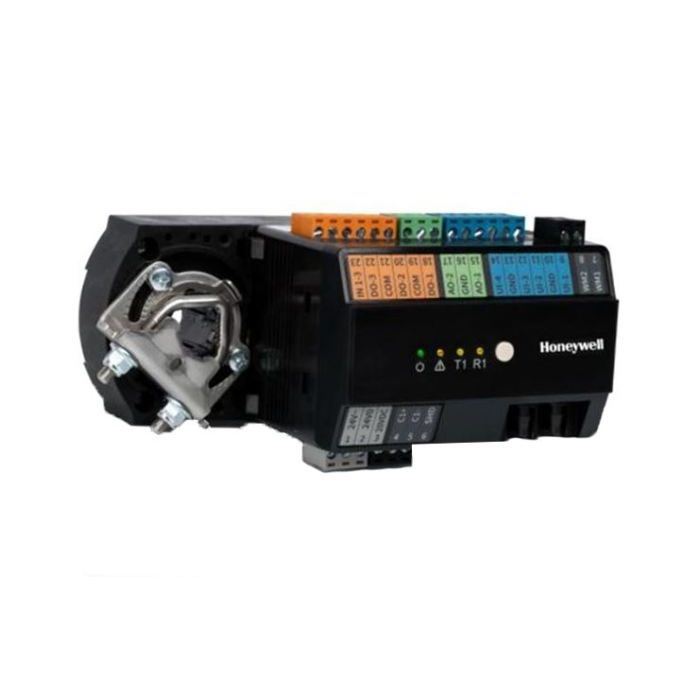

Honeywell WEB-VA423B24N Spyder5 Controller, 9 IO

Product Description

The Honeywell WEB-VA423B24N is a Spyder5 controller designed for Variable Air Volume (VAV) systems. This programmable controller includes four universal inputs (UI), two analog outputs (AO), and three digital outputs (DO). It features BACnet MS/TP communication and RS-485 ports, making it suitable for a variety of building automation applications. The integrated actuator adds functionality and convenience to the unit.

• Built-in actuator and real-time clock
• Supports BACnet MS/TP communication
• Compact design ideal for small enclosures

Product Highlights

This controller supports the flexible application of building automation systems and is compliant with various standards.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: WEB-VA423B24N

Technical Specifications

• IO: 9
• Type: Programmable
• Ports: RS-485
• Power Voltage: 24 VAC
• Power Consumption: 20 VA
• Operating Conditions: 32 F to 122 F (0 C to 50 C), 5% to 95% RH non-condensing
• Application: VAV
• Approval: UL916, UL2043 Certified, BTL-listed
