Product Description

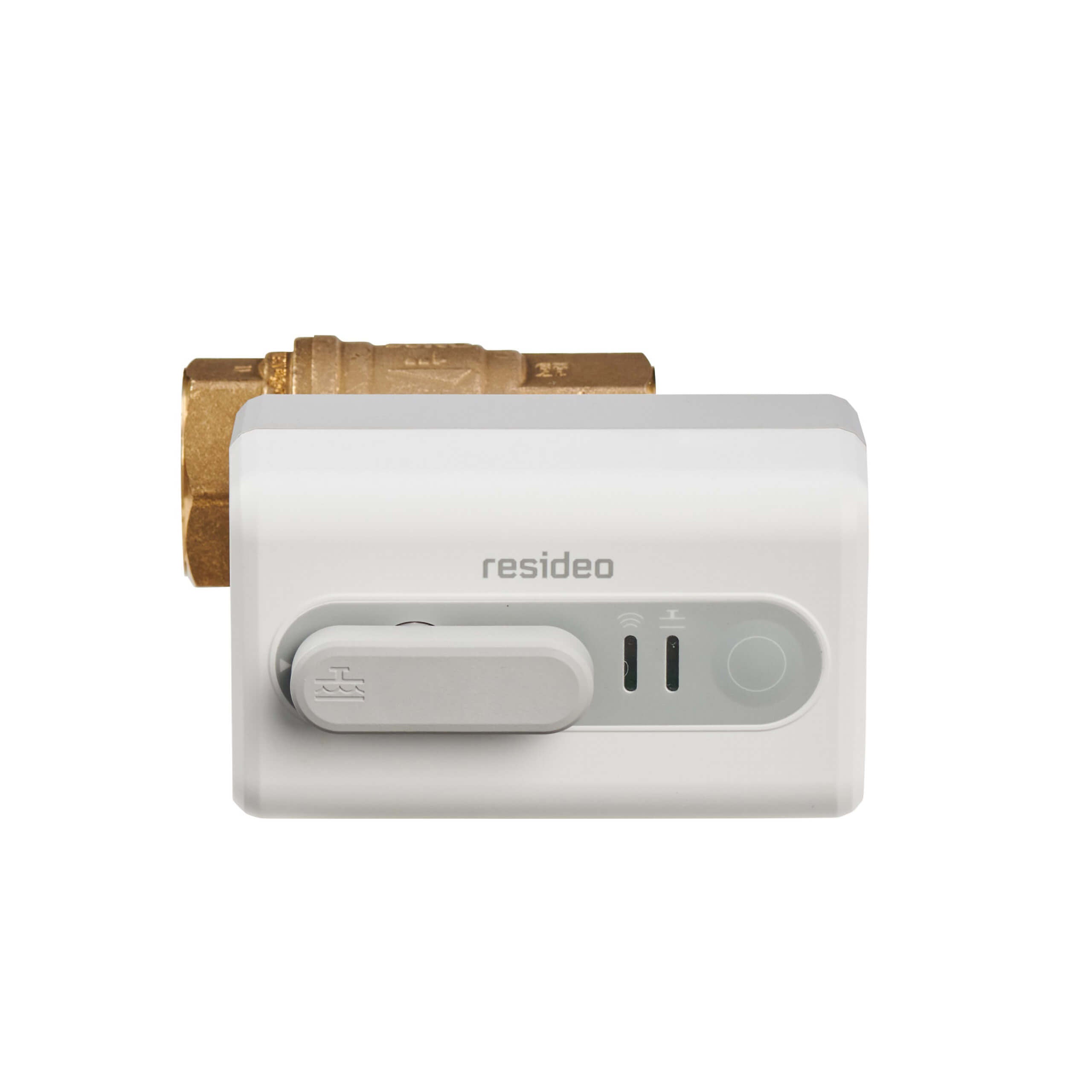

The HONEYWELL VWS02Y-3/4 is a WiFi actuator with a 3/4" NPT connection. This device automatically shuts off the water flow when the included sensor cable or a paired Resideo WiFi Water Leak and Freeze Detector detects a water leak. It helps protect your home from potential damage.
- Automatic water shutoff through water leak and freeze sensor

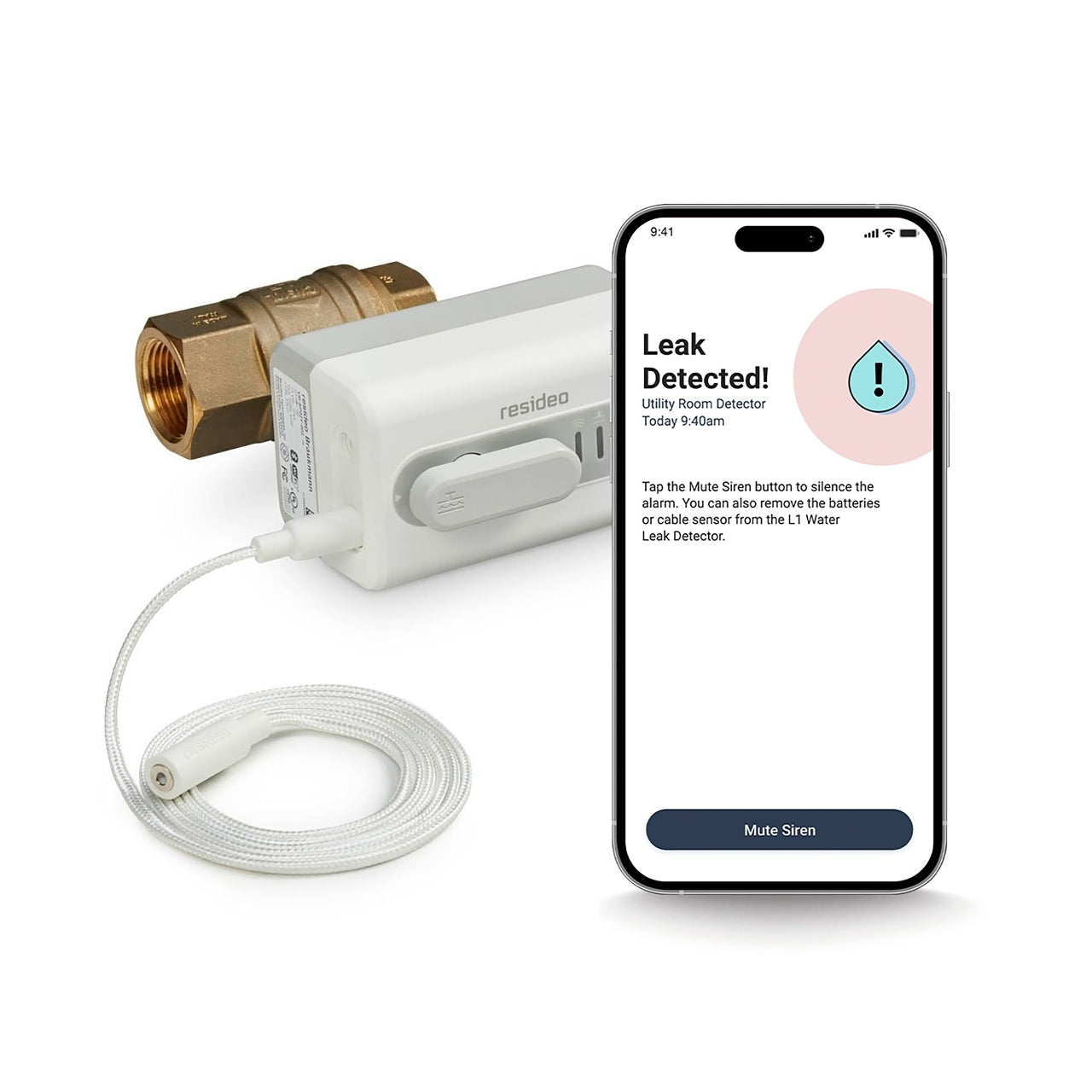

- Control remotely via the app
- Manual override to turn on or off water
Product Highlights
The L5 WiFi Water Leak Shutoff Valve responds to alerts with automatic shutoff, safeguarding belongings and the home's structure from potential costly damage.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: VWS02Y-3/4
Technical Specifications
-
Application: Water Leak Detection, Water Shut off Valve
-
Pipe Size: 3/4 in
-
Wireless Connectivity: WiFi frequency band of 2.4GHz, 802.11 b/g/n, Bluetooth 4.1
-
Product Features: Auto Shutoff Through Water Leak and Freeze Sensor, Control the L5 WiFi Water Leak Shutoff Valve Remotely Via the App, Manual Override to Turn On or Off Water, Easy Install
-

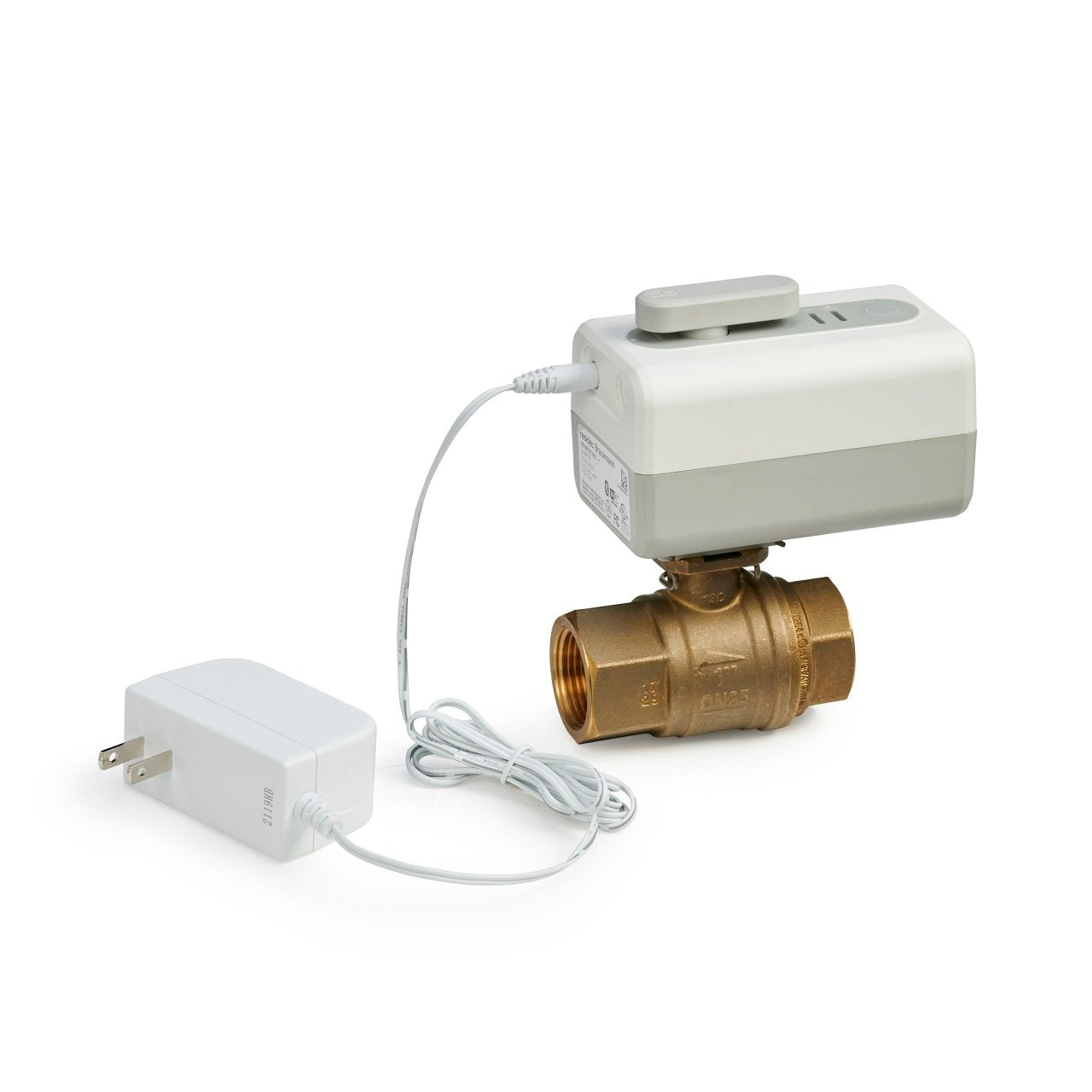

Includes: L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, 5 ft Water Leak Detector Cable
-
Connection Type: NPT
-
Valve Type: Ball Valve
-
Lead Free: Yes
-
Mounting Location: Install the L5 Water Valve on the main water line after the main water shutoff valve and the pressure reducing valve (if applicable).
-
Mounting Option: Valve can be installed in any orientation
-
Media Temperature (Max): 149 °F, 65 °C
-
Media Temperature (Min): 36 °F, 2 °C
-
Ambient Operating Temperature (Max): 113 °F, 45 °C
-
Ambient Operating Temperature (Min): 32 °F, 0 °C
-
Product Height: 5.67 in, 144 mm
-
Product Length: 4.69 in, 119 mm
-
Product Width: 2.67 in, 68 mm
-
Additional Dimensions Details: 10 ft cord on Power Supply Adapter
-
Cable Length: 5'
-
Operating Temp Range: 32°F to 113°F
-
Rated Torque: 44.25 in-lbs, 5 Nm
-
Breakaway Torque: 57.53 in-lbs, 6.5 Nm
-
DN Size: DN20
-
Approvals and Standards: CE EMC 2014/30/EU, CE RED 2014/53/EU, EN 60730-1, EN 60730-2-14, UKCA, CAN/CSA C22.2, UL 60730-1, UL 60730-2-14, WEEE 2012/19/EU, ES 116, RoHS 2011/65/EU, ES 50040083, REACH 1907/2006, FCC part 15, subpart C, RSS-247
-
Protection Class: IPX4, Indoor, UL Type 2
-
Actuator Connection: Ball Valve Flange size F03
-
Compatible App: First Alert App, Resideo App
-
Manual Override: Yes
-
Mounting Accessories: Metal Clip
-
Voltage: 120 V
-
Material: Brass
