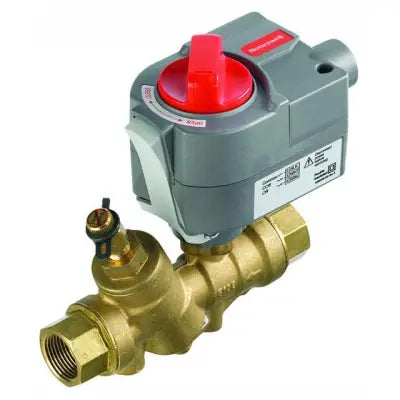

HONEYWELL VRN2AFSA3000 Pressure Independent Control Valve

Product Description

The Honeywell VRN2AFSA3000 Pressure Independent Control Valve is designed to manage flow and temperature in hydronic systems. This valve is crucial for maintaining consistent temperatures during pressure changes. It features a built-in pressure control cartridge that ensures proper flow balancing. This valve can handle both water and glycol solutions up to fifty percent.

• Sizes available from one-half inch to three inches with female NPT connections.
• Compatible with Honeywell actuators for seamless integration.
• Includes a differential pressure regulator that maintains a constant pressure drop.

Product Highlights

The valve operates effectively in both hot and chilled water systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VRN2AFSA3000

Technical Specifications

• Type: Control Valve
• Connection: NPT
• Supply Voltage: 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1/2 in to 3 in
• GPM: 4 GPM
• Control Signal: Analog
• Body Style: Two-way ball valve, straight-through flow, full port
• Body Pressure Rating: 360 psi at 250°F (121°C)
• Controlled Medium: Water or glycol solutions up to 50%
• Medium Temperature Range: -22°C to 250°F (-30°C to 121°C)
• Maximum Differential Pressure: 1 gpm to 95 gpm
• Close-off Pressure: 100 psid
• Flow Characteristics: Equal percentage with flow control insert
• Body: Forged brass (ASTM B283)
• Flow Optimizer: Laser-milled, glass-reinforced Noryl
• Trim: Nickel-chrome plated brass or stainless steel
• Stem Seals: EPDM O-ring and Teflon bearings
• Ball Seals: Reinforced Teflon seals, with EPDM O-rings
• Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm
• Compatible Actuators: Non-Spring Return: ML6161, ML7161, MN6105*, MN7505*, Spring Return: MS6105, MS7505*, MS8105; Minimum Torque: 35 lb-in
• Warranty: 1 year on valves, 5 years on actuators
• Packaging: Box
• Product Status: Active
