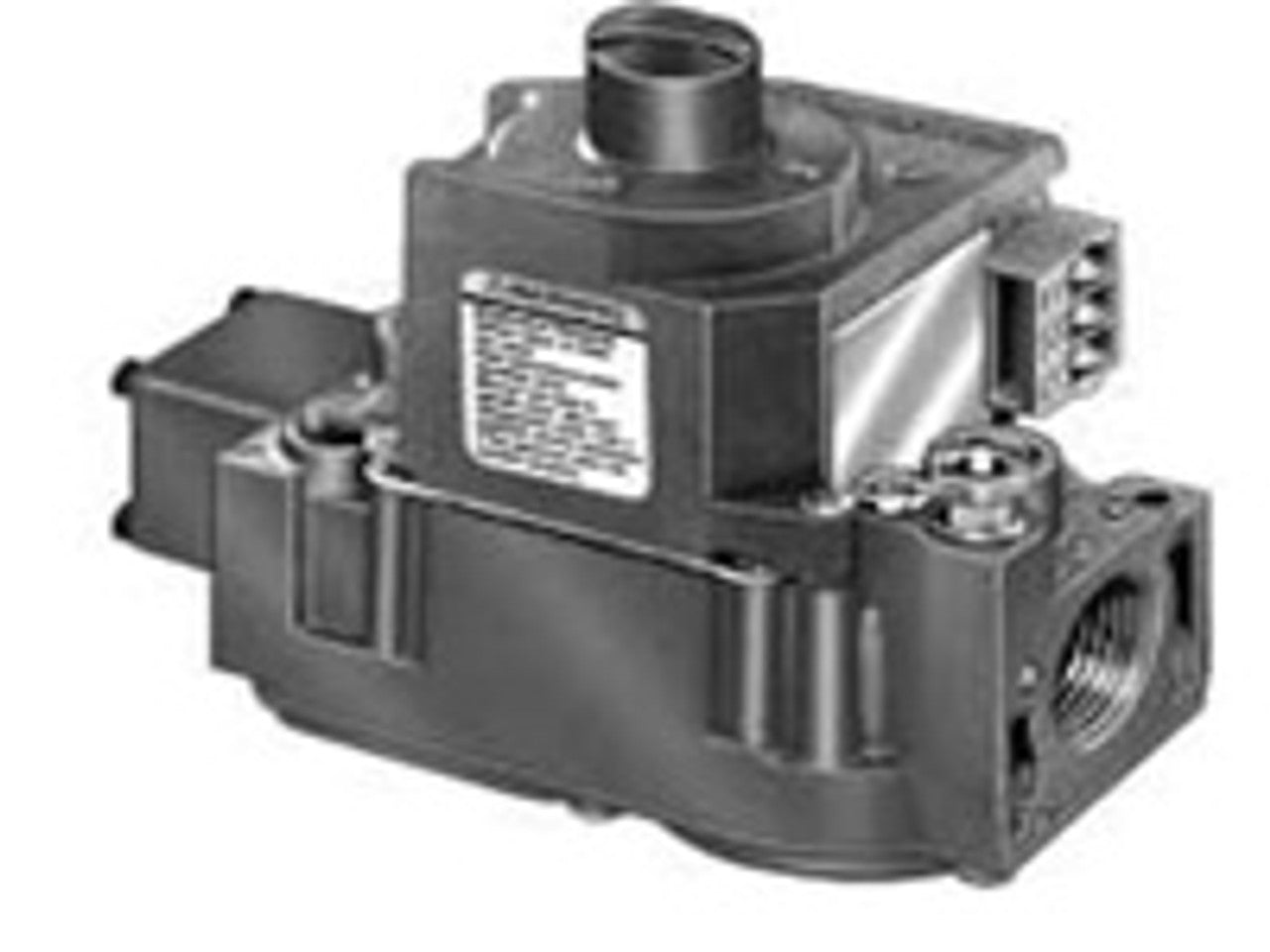

Honeywell VR8304M3509/U Intermittent Pilot Gas Control

Product Description

The Honeywell VR8304M3509/U is an intermittent pilot gas control designed for use in gas-fired heating systems. This model operates at low voltage conditions of 24 VAC and provides reliable control for natural gas applications. Its compact design allows for easy installation, making it suitable for HVAC professionals.

• Single stage control for smooth operation
• Standard opening type for efficient gas regulation
• Dimensions: five and three-eighths inches high by four and one-sixteenth inches wide by two and eleven-sixteenths inches deep

Product Highlights

This product is designed for easy integration into existing heating systems, providing dependable performance and enhanced safety features.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VR8304M3509/U

Technical Specifications

• Type: 1-Stage, Straight-Through, Standard Opening
• Gas Type: Natural Gas
• End Style: NPT
• Dimensions: five and three-eighths inches high x four and one-sixteenth inches wide x two and eleven-sixteenths inches deep
• Coil Voltage: 24 VAC, 60 Hz
• Manufacturer: Honeywell
• Nominal Size: one-half inch x three-fourths inch
• Ignition Type: Intermittent Pilot
• Pressure Rating: 0.5 psi
• Nominal Capacity: 30000 - 370000 BtuH
• Temperature Range: 0 - 175 degrees Fahrenheit
• Electrical Connection: one-quarter inch Quick Connect Male
