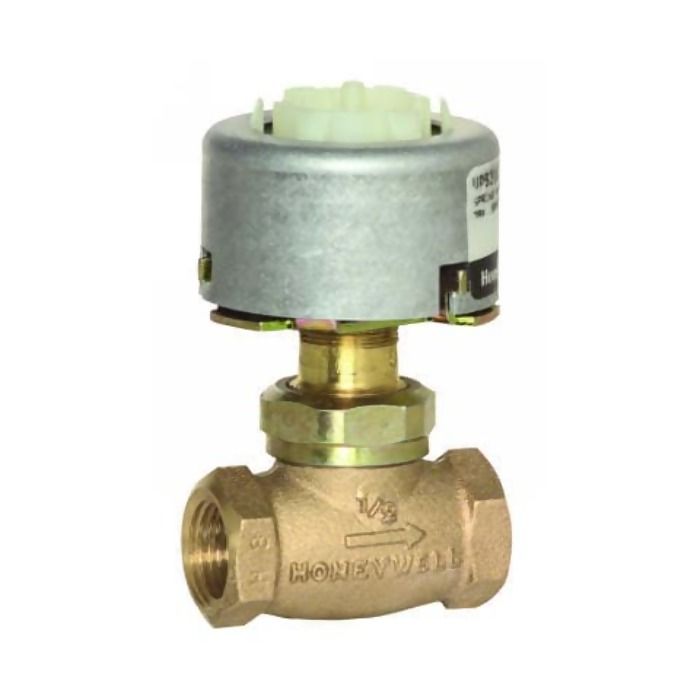

Honeywell VP531C1059/U Pneumatic Terminal Unit Valve

Product Description

The Honeywell VP531C1059/U is a pneumatic terminal unit valve designed for efficient control of steam and water. This valve is a two-way, unitary device that provides proportional control within temperatures from forty to two hundred forty degrees Fahrenheit.

• Compatible with several application requirements.
• Compact design suitable for most unit enclosures.
• Features an easily replaceable actuator assembly.

Product Highlights

This valve offers reliable operation in terminal units and is ideal for HVAC applications. Its robust construction ensures durability and ease of installation.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VP531C1059/U

Technical Specifications

• Connection Size: 3/4 inches
• Maximum Diaphragm Pressure: 30 psi
• Operating Temperature Range: 40 F to 240 F
• Capacity: 3.3 Cv
• Humidity Range: 5% to 95% RH
• Valve Action: Proportional, Normally Open
• Body Pressure: 150 psi
• Controlled Fluid: Water, Steam
