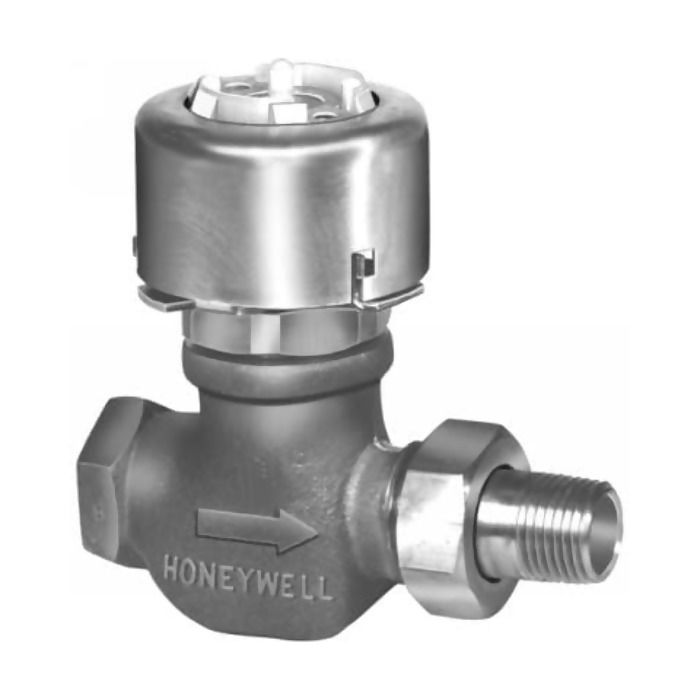

Honeywell VP525C1024/U Pneumatic Radiator Valve 3/4 in.

Product Description

The Honeywell VP525C1024/U is a pneumatic radiator valve designed for two-pipe hot water or steam systems. This unitary valve offers proportional control and features a normally-open design. It is suitable for commercial settings where efficient temperature regulation is essential.

• Available in various capacities and spring ranges for diverse applications.
• Easy-to-replace actuator assembly for simplified maintenance.
• Compact design fits in spaces with limited access.

Product Highlights

This pneumatic valve supports standard 3/4 inch connections and operates effectively in temperatures ranging from forty to two hundred forty degrees Fahrenheit.

Product Information

Standard Information

• Valve Type: Unitary
• Connection Size: 3/4 inches

Technical Specifications

• Flow Capacity (Cv): 3
• Maximum Diaphragm Pressure: 30 psi
• Operating Conditions: 40 F to 240 F
• Temperature Range: 40 F to 240 F
• Spring Range: 3 psi to 10 psi
• Dimensions: 4 7/8 inches high x 3 3/4 inches wide
• Body Pressure: 150 psi
• Controlled Fluid: Water, Steam
