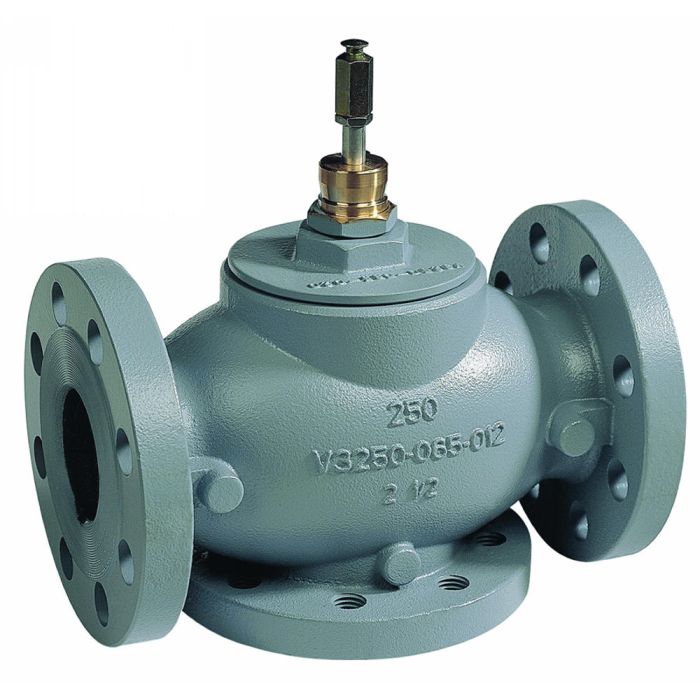

Honeywell VGF22ES50 2-Way Flanged Globe Valve

Product Description

The Honeywell VGF22ES50 is a reliable 2-way flanged globe valve. It is designed for use in commercial HVAC systems. This valve features stainless steel trim, making it suitable for various applications including chilled water, heating water, and steam systems. The construction includes a cast iron body with a stainless steel seat and stem, providing durability.

• Stainless steel trim for strength.
• Complies with ANSI B16.3 ratings.
• Handles steam, hot water, and chilled water-glycol solutions up to 50% concentrations.

Product Highlights

The VGF22ES50 delivers equal percentage flow characteristics, ensuring precision in fluid control.

Product Information

Standard Information

• Type: Valve Only
• Connection: Flange

Technical Specifications

• Cv: 250 CV
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 5 inches
• Service: Steam, Hot Water, or Chilled Water-Glycol Solutions Up to 50% Concentrations
• Flow Characteristic: Equal Percentage
• Operating Temperature: 35 F to 130 F (2 C to 66 C)
• Close-Off Pressure: 13 psi
