Honeywell VFF2FW1Y2B/M Butterfly Valve, 2 Way, 2 in. Replacement MPN

Product Description

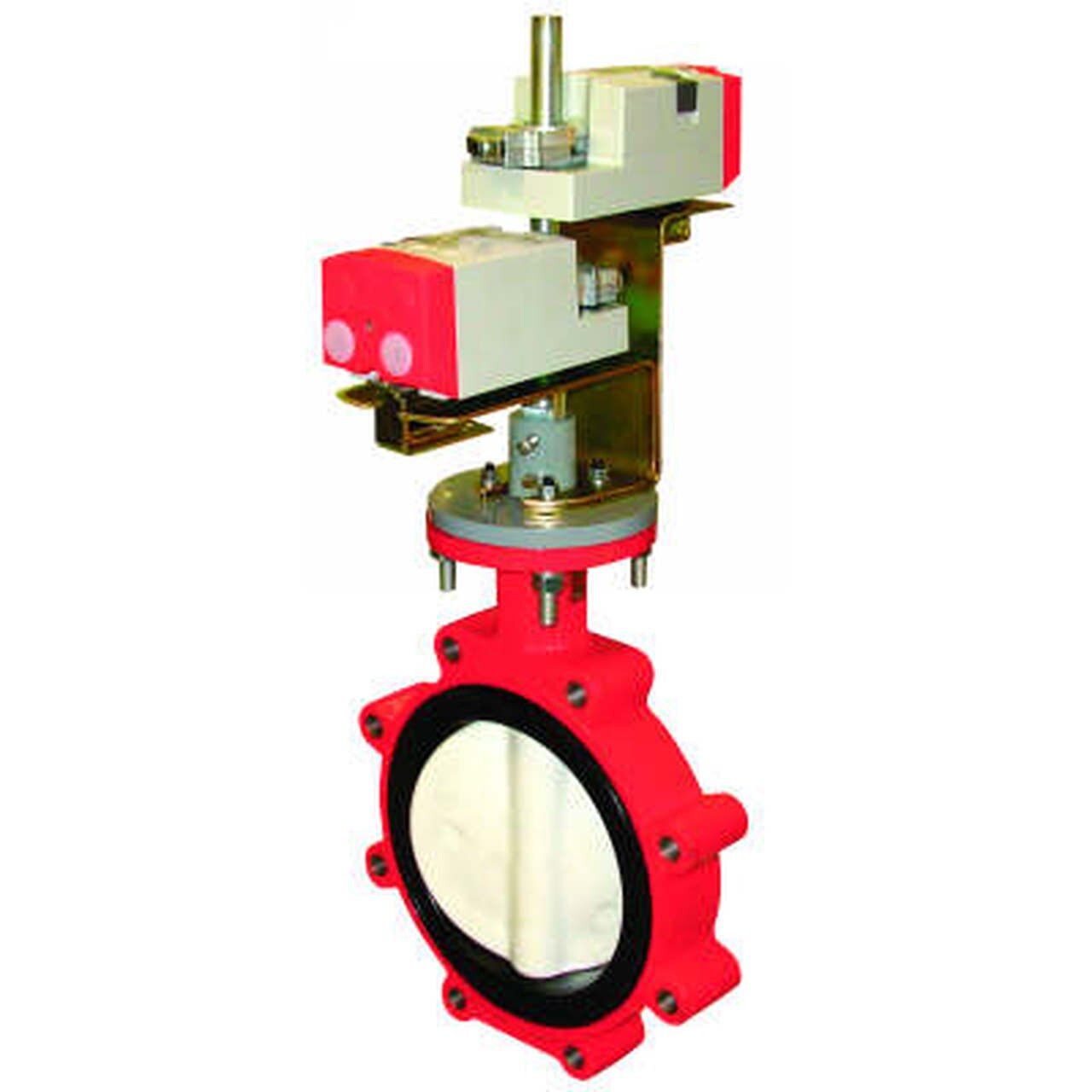

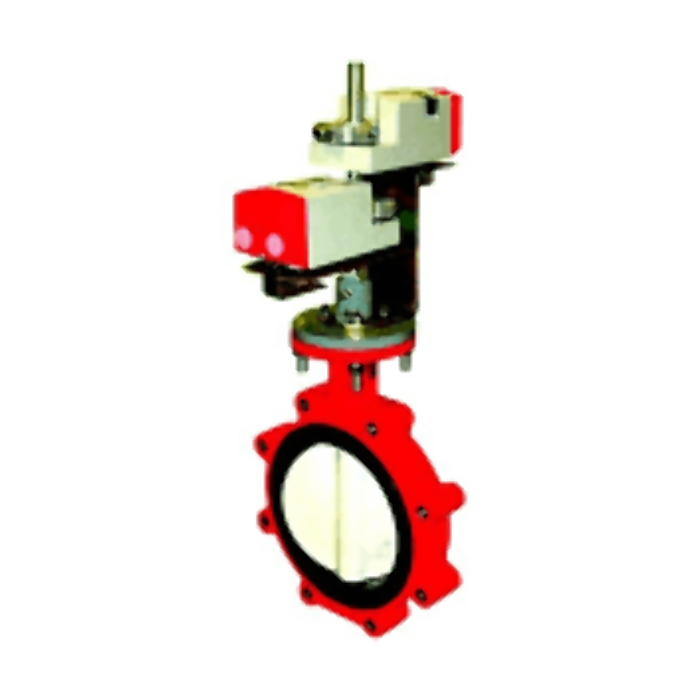

The HONEYWELL VFF2FW1Y2B/M is a 2-way, 2 inch resilient-seat flanged butterfly valve with 144 Cv at 90 (61 Cv at 60) and 175 psid close-off. These resilient seat two-way valves provide control for HVAC system applications including chilled water, hot water, cooling tower water, and thermal storage systems.

• Sizes From 2 To 20 in With ANSI Class 125/150 Lug Pipe Connections
• Bi-Directional Flow
• Extended Neck For 2 in Of Pipe Insulation

Product Highlights

The Honeywell butterfly valve features a polyester-coated cast iron body, peroxide cured EPDM resilient seat, and a 416 stainless steel stem. Suitable for hot water and chilled water-glycol solutions.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: VFF2FW1Y2B/M

Technical Specifications

• Service: Hot Water And Chilled Water-Glycol Solutions
• Close-Off Pressure: 175 psi
• Flow Characteristic: Equal Percentage
• Operating Temperature: -40 F To 250 F (-40 C To 121 C)
• Pipe Size (inch): 2 in.
• Pipe Size (DN): DN50
• Body Pattern: 2 way (NC, NC/NO; NSR)
• Maximum Differential Pressure Ratings (Close-off) (psi): 175 psi
• Maximum Differential Pressure Ratings (Close-off) (kPa): 1206 kPa
• Actuator Control Type: Electric modulating
• Actuator Selection: Non-Spring Return Modulating control
• Valve Action: Normally Closed, convertible to Normally Open with Spring Return DCA
• Type of Enclosure: NEMA 2 housing
• Controlled Medium: Chilled or hot water with up to 50% Glycol
• Capacity at 60 degrees stroke (Cv): 61 Cv
• Capacity at 60 degrees stroke (kvs): 53 kvs
• Capacity at 90 degrees stroke (Cv): 144 Cv
• Capacity at 90 degrees stroke (kvs): 125 kvs
• Connection Type: Lugged
• Mounting: ANSI Flanged
• Static Pressure Rating (max) (psi): 250 psi
• Static Pressure Rating (max) (kPa): 1724 kPa
• Actuator Ambient Temperature Ratings (F): -5 F to 140 F
• Actuator Ambient Temperature Ratings (C): -20 C to 60 C
• Temperature Range (F): -40 F to 250 F
• Temperature Range (C): -40 C to 121 C
• Materials (Body): Polyester-coated cast iron ASTM A126 Class B
• Materials (Seat): Peroxide-cured EPDM resilient seat
• Materials (Stem): 416 stainless steel
• Materials (Plug/Ball/Disc): Nylon 11-coated ductile iron
• Radius (in.): 2-1/4 in.
• Radius (mm): 58 mm
• Neck (in.): 5-1/2 in.
• Neck (mm): 140 mm
• Thickness (in.): 1-5/8 in.
• Thickness (mm): 41 mm
• Number of Flange Bolts: 4
• Flange Bolt Thread: 5/8 in. -11 pitch
• Weight (lb): 10.7 lb
• Weight (kg): 4.9 kg
• Assembly Length (in.): 7-1/16 in.
• Assembly Length (mm): 180 mm
• Assembly Height (in.): 10-7/8 in.
• Assembly Height (mm): 274 mm
• Assembly Width (in.): 4-5/8 in.
• Assembly Width (mm): 117 mm
• Approvals, Underwriters Laboratories Inc: C/US UL873, Plenum Rated
• Approvals, CE Compliant: Compliant
