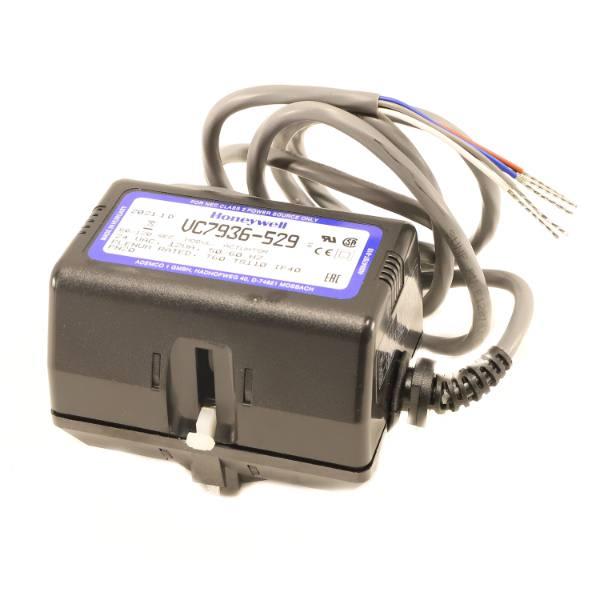

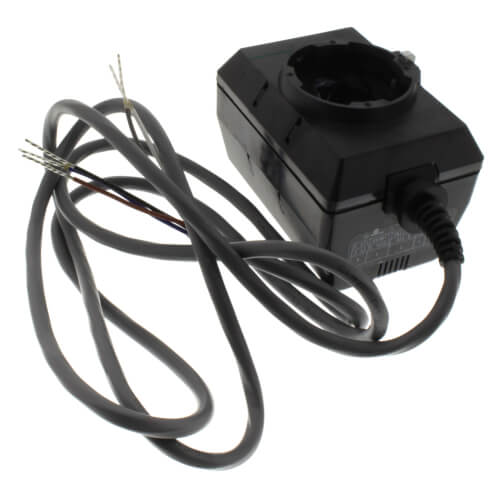

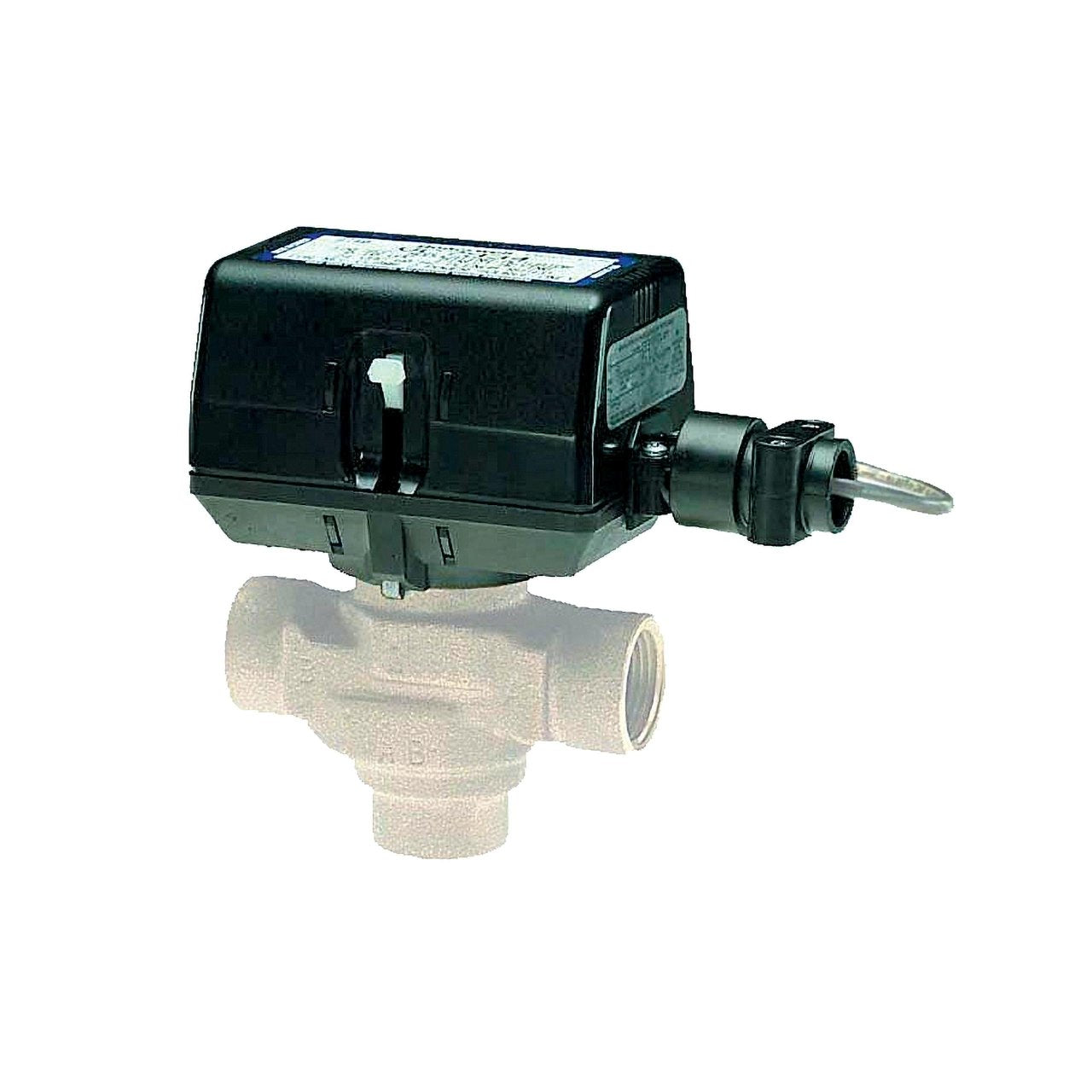

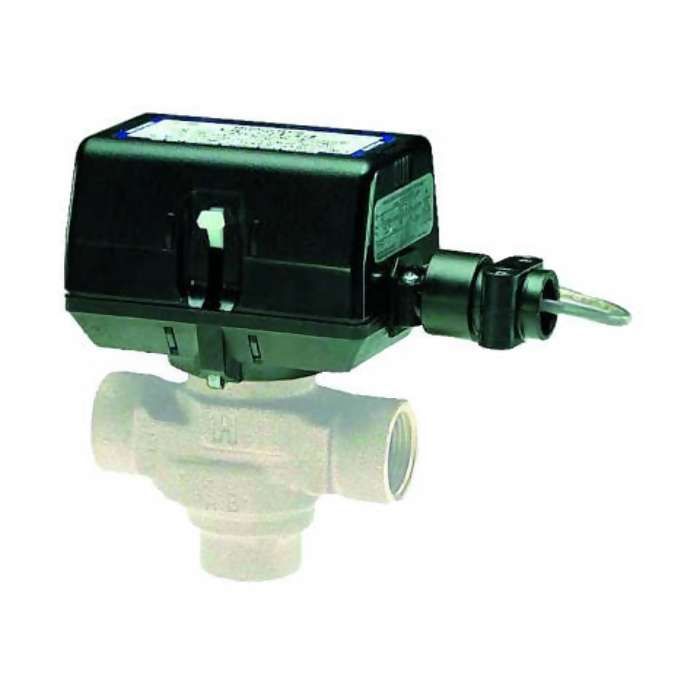

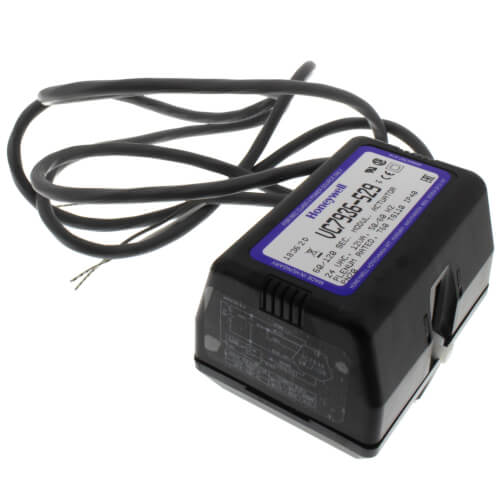

HONEYWELL VC7936ZZ11-529 Actuator

Product Description

The Honeywell VC7936ZZ11-529 is a modulating actuator for controlling heating, cooling, and fan coil systems.

It is compatible with VC series valves and works with various controller types.

• Direct coupled mounting for easy installation.
• Includes plenum-rated cable for reliable connection.
• Switchable electronic fail-safe for open or closed positions.

Product Highlights

This actuator is designed for managing water applications and ensures optimal performance in central heating systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VC7936ZZ11-529

Technical Specifications

• Application: HVAC
• Control Signal: 24 V Pulse With Modulation, On/Off, 24 V AC Floating, 2 to 10 V DC
• Mounting Type: Direct Coupled
• Operating Temperature: 32 °F to 150 °F (0 °C to 65 °C)
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Shipping and Storage Temperature (Max): 150 °F, 65 °C
• Operating Relative Humidity (Min): 5% Non-condensing
• Operating Relative Humidity (Max): 95% Non-condensing
• Protection Class: Double Insulated, IP40
• Fail-Safe Operation Type: Normally Open or Closed|Switchable electronic
• Supply Voltage: 24 V AC
• Power Consumption: 12 W, 18 VA inrush
• Stroke (Max): 0.4 in, 10 mm
• Product Height: 2.8 in, 70 mm
• Product Width: 3.7 in, 94 mm
• Product Depth: 2.7 in, 68 mm
• Housing Material: Plastic
