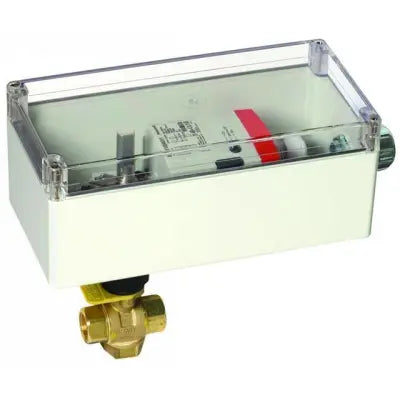

Honeywell VBN3AJPX8302 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN3AJPX8302 is a control ball valve that features an electric actuator, specifically designed to manage fluid flow efficiently. This valve has a half inch NPT connection and operates in a three-way configuration. With a flow coefficient, Cv, of eight, it enables effective flow control. The high-quality plated brass trim enhances durability, and the valve utilizes a DCA profile for optimized performance. The on/off operation mechanism includes a fail-safe mode that ensures the valve opens at A-AB under failure conditions. It is suitable for use with one hundred to two hundred fifty VAC power supply and is housed in a NEMA 3R enclosure for protection against environmental factors.

• Half inch NPT connection
• Three-way valve configuration
• NEMA 3R enclosure for durability

Product Highlights

Electric actuator for efficient control of fluid flow.

Product Information

Standard Information

• Brand: Honeywell
• Model Number: VBN3AJPX8302

Technical Specifications

• Connection Size: Half inch NPT
• Valve Type: Ball Valve
• Actuator Type: Electric
• Valve Configuration: Three-Way
• Flow Coefficient (Cv): 8
• Trim Material: Plated Brass
• Profile: DCA
• Operation: On/Off (Fail A-AB Open)
• Input Voltage: One hundred to two hundred fifty VAC
• Enclosure Rating: NEMA 3R
