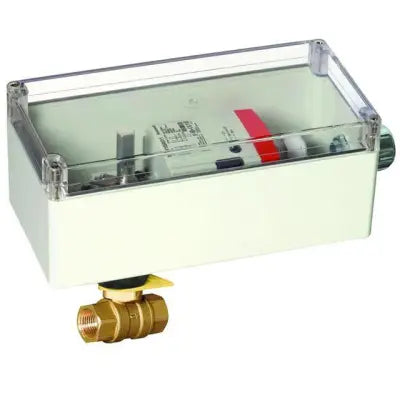

Honeywell VBN2GSSXC002 Control Ball Valve and Actuator Assembly

Product Description

The Honeywell VBN2GSSXC002 is a two-way control ball valve combined with an electric actuator assembly. It features a two and a half inch NPT connection designed for efficient on/off control. The floating actuator has a fail-in-place function, enhancing system reliability. This valve is suitable for both hot and chilled water applications and can handle up to fifty percent glycol solutions in HVAC systems.

• Two and a half inch NPT connection.
• Floating actuator for reliable on/off control.
• NEMA 3R enclosure for protection.

Product Highlights

Ideal for managing HVAC systems, this assembly is equipped with stainless steel trim and operates on twenty-four VAC. It includes two auxiliary switches for additional functionality and is packaged securely to ensure it arrives intact.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VBN2GSSXC002

Technical Specifications

• Valve Type: Control Ball Valve
• Actuator Type: Electric
• Connection Size: 2.5 inches
• Connection Type: NPT
• Way: 2-Way
• Cv: 101
• Trim Material: Stainless Steel
• Profile: DCA
• Operation: Floating On/Off (Fails in Place)
• Input Voltage: 24 VAC
• Auxiliary Switches: 2
• Enclosure: NEMA 3R
• Packaging: Box
• Product Status: Active
