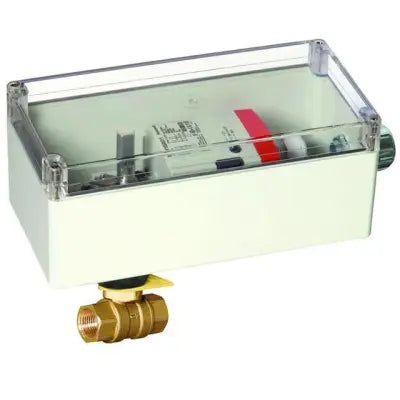

Honeywell VBN2GRSX6102 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2GRSX6102 is a two-way control ball valve equipped with an electric actuator. This valve has a two-and-a-half inch NPT connection and a Cv rating of seventy-two. It is suitable for controlling hot and chilled water along with up to fifty percent glycol solutions in HVAC applications. Made with stainless steel trim, this valve provides modulating floating control and features a fail-open configuration, operating at twenty-four VAC.

• Two-and-a-half inch NPT connection
• Stainless steel trim
• Modulating floating control

Product Highlights

This control ball valve is designed for reliable operation in HVAC systems, providing efficient flow control for various media.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VBN2GRSX6102

Technical Specifications

• Connection: NPT
• Pattern: Two-way
• Size: Two-and-a-half inches
• Cv: Seventy-two
• Trim Material: Stainless Steel
• Control Signal: Analog, Floating
• Media Compatibility: Hot and chilled water, up to fifty percent glycol
• Pressure Rating: Three hundred sixty psig at two hundred fifty degrees Fahrenheit
• Operating Temperature: -five to one hundred forty degrees Fahrenheit with MN actuators
• Weight: Seventeen point six pounds
• Media Temperature Range: -twenty-two to two hundred fifty degrees Fahrenheit
• Leakage Rating: ANSI Class IV (zero point zero one percent of Cv)
• Materials Of Construction: Forged brass body, nickel-plated brass ball and stem, EPDM o-ring stem seals, 316 stainless steel ball and stem
