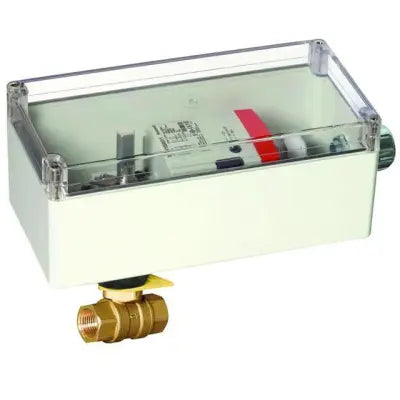

Honeywell VBN2FRSXA102 Control Ball Valve and Actuator Assembly

Product Description

The Honeywell VBN2FRSXA102 is a control ball valve and actuator assembly suitable for HVAC systems. This product effectively manages the flow of hot and chilled water, including glycol solutions up to fifty percent. It has a two-inch NPT connection and features durable stainless steel trim along with a spring return actuator ideal for normally open applications. Operating on twenty-four VAC, the assembly includes one auxiliary switch and is housed in a NEMA 3R enclosure for added protection.

• Two-inch NPT connection.
• Spring return actuator designed for two-position operation.
• Includes one auxiliary switch for flexibility.

Product Highlights

This assembly is designed for effective control of fluid flow in HVAC systems, promoting efficiency and reliability.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: VBN2FRSXA102
• Valve Type: Control Ball Valve
• Number of Ports: 2-Way
• Connection Size: 2 inches
• Connection Type: NPT
• CV: 71
• Trim Material: Stainless Steel
• Actuator Type: Electric
• Fail Safe: Fail Open
• Input Voltage: 24 VAC
• Auxiliary Switch: 1
• Enclosure Rating: NEMA 3R
• Packaging: Box
• Product Status: Active
