HONEYWELL VBN2DKSX9100 Control Valves

Product Description

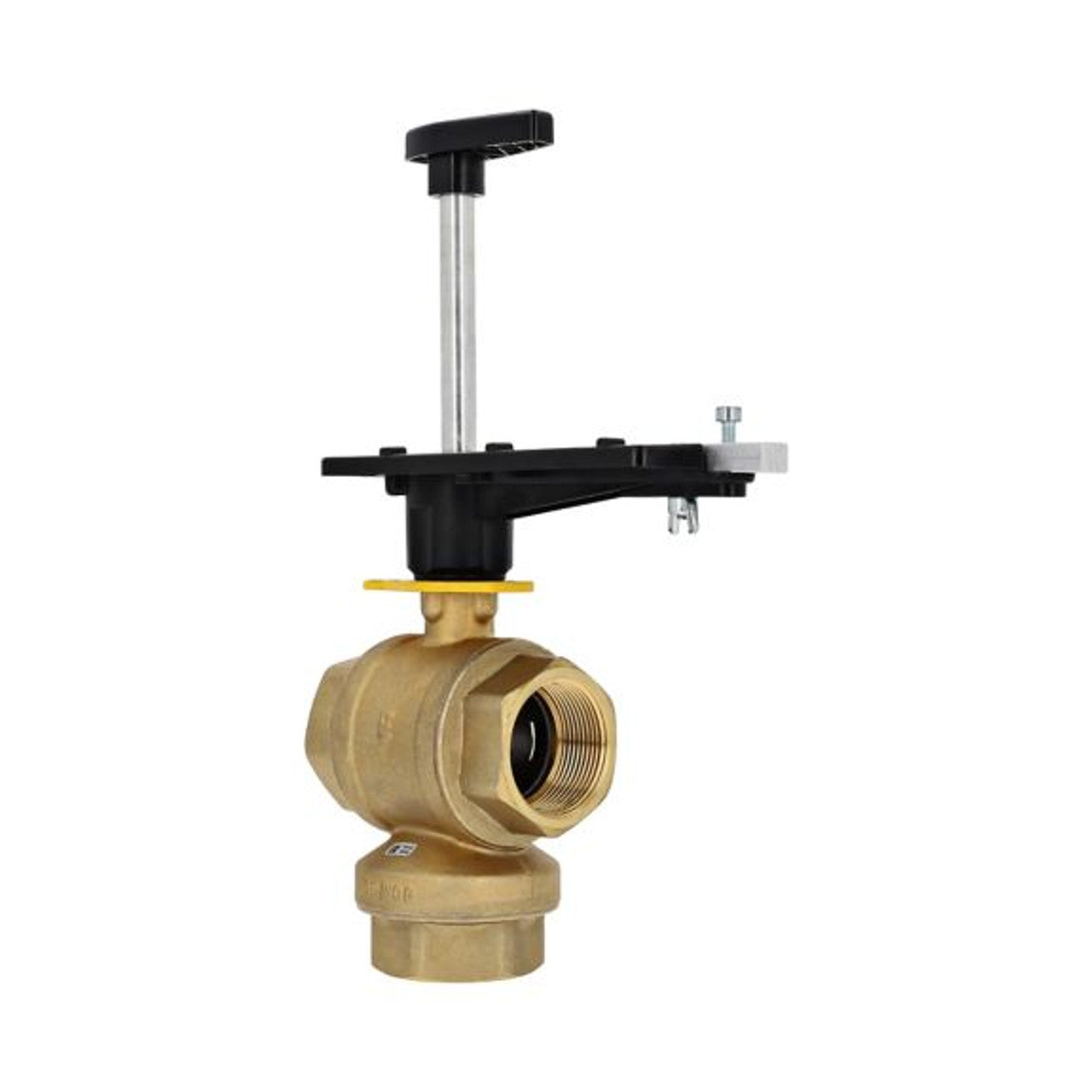

The HONEYWELL VBN2DKSX9100 is a control valve for HVAC systems that efficiently manages hot and chilled water, including solutions with up to fifty percent glycol. This valve incorporates a parabolic flow insert within the ball, yielding Cv ratings comparable to globe valves.

• Designed for managing both chilled and hot water.
• Features a low torque design for cost-effective actuator use.
• Allows for manual control with a removable override handle.

Product Highlights

Versatile and durable, suitable for various HVAC applications.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: VBN2DKSX9100

Technical Specifications

• Sizes: Half inch to three inches with internal (female) NPT connections
• Flow Characteristic: Equal percentage
• Medium: Chilled or hot water with up to fifty percent glycol
• Maximum Pressure: Three hundred sixty psi (two thousand four hundred eighty-two kPa) at two hundred fifty degrees Fahrenheit (one hundred twenty-one degrees Celsius)
• Seat Leakage: ANSI Class IV (zero point zero one percent of Cv) for three-way A port and ANSI Class III (zero point one percent of Cv) for three-way B port
