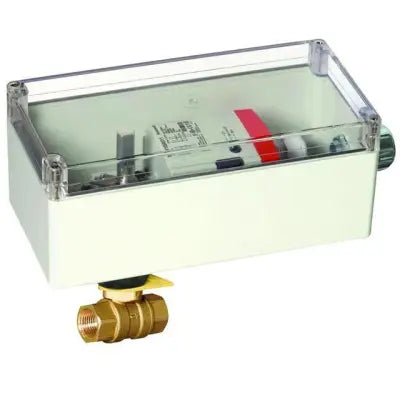

Honeywell VBN2CPPX9202 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2CPPX9202 is a one-inch NPT, two-way ball valve designed with an electric actuator. This valve features a characterized flow design with a Cv rating of fifty-four. The valve trim is made from brass for durability. The actuator provides on/off control and features fail-safe closed operation. It operates on supply voltages between one hundred to two hundred fifty VAC and includes one auxiliary switch. The assembly is secured in a NEMA three R enclosure.

• One-inch NPT connection.
• Two-way valve pattern for versatile applications.
• Electric actuator allows for efficient on/off control.

Product Highlights

The Honeywell VBN2CPPX9202 is essential for applications that require reliable flow control and efficient operation.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VBN2CPPX9202

Technical Specifications

• Control Valves Type: Ball Valve
• Connection: NPT
• Cv: 54 CV
• Input Voltage: 100 - 250 VAC
• Trim Material: Brass
• Pattern: 2-way
• Size: 1 in
• Control Signal: Two Position
• Enclosure Rating: NEMA 3R
• Auxiliary Switch: 1
