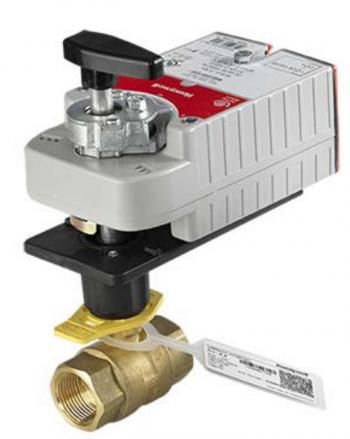

Honeywell VBN2CJSX8102 Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2CJSX8102 is a one-inch NPT, two-way ball valve designed for control applications. It includes a stainless steel trim and a characterized flow insert within the ball, ensuring reliability and efficiency. The valve has a Cv rating of 9.0, making it suitable for various water and heating systems. It features an electric actuator for on/off control and utilizes a fail-safe open mechanism. The actuator functions on an input voltage range of one hundred to two hundred fifty volts AC and comes in a NEMA 3R enclosure.

• Valve body features NPT connection.
• Includes an electric actuator for on/off control.
• Suitable for use with spring or non-spring return actuators.

Product Highlights

This valve is ideal for HVAC applications, providing quick responsiveness and control over fluid flow.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2CJSX8102

Technical Specifications

• Connection: NPT
• Cv: 9 CV
• Input Voltage: 100-250 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1 in
• Control Signal: Two Position
• Enclosure Rating: NEMA 3R
• Weight: 12.1 lbs
