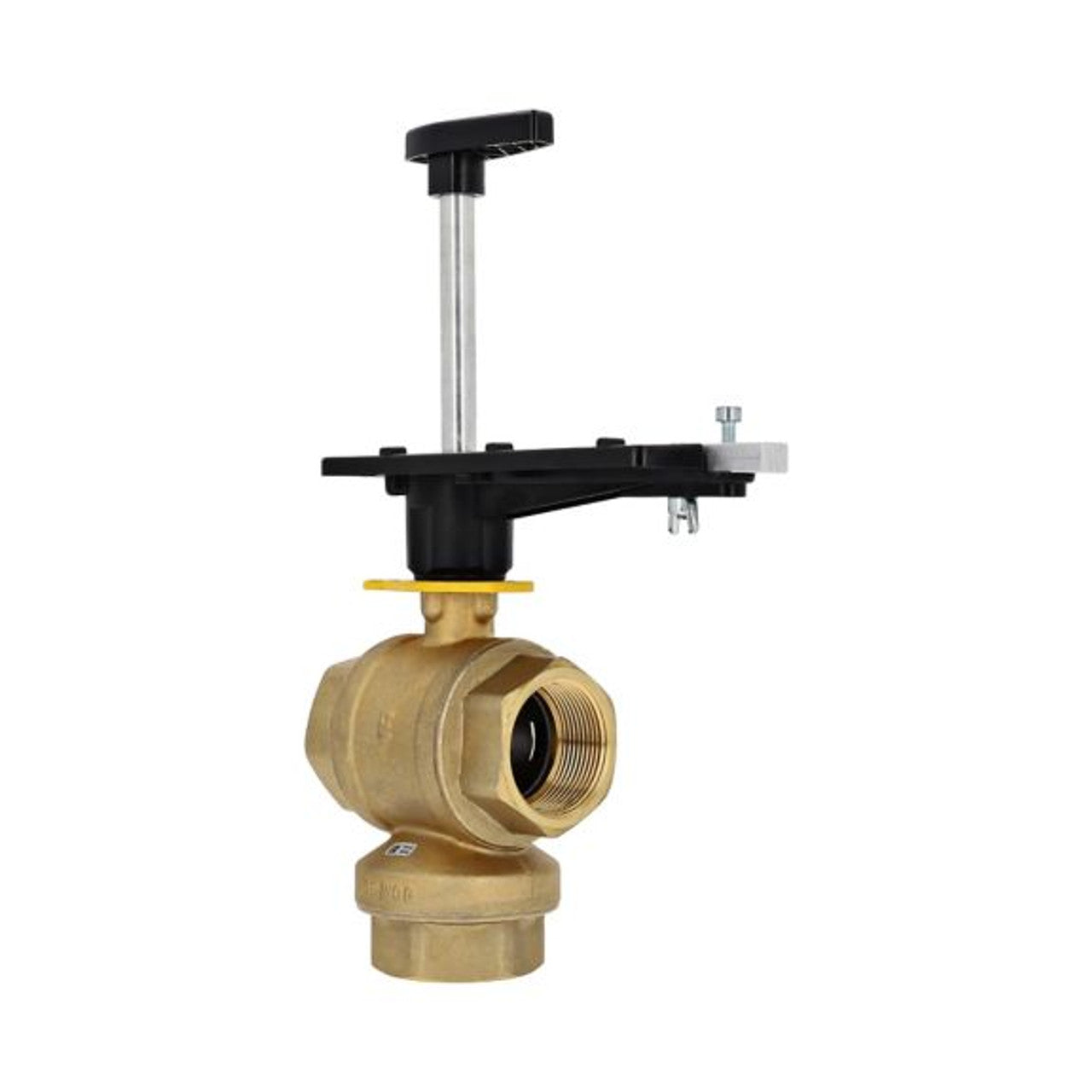

Honeywell VBN2AHPXA202 CONTROL BALL VALVE WITH ELECTRIC ACTUATOR

Product Description

The Honeywell VBN2AHPXA202 is a control ball valve with an electric actuator designed for HVAC applications. This valve is suitable for managing hot and chilled water and glycol solutions at concentrations up to fifty percent. It features a half-inch NPT connection and operates in a two-way configuration, providing precise control with a flow coefficient of 4.7 Cv.

• Features a parabolic flow insert for improved performance.
• Includes a removable manual override handle.
• Allows flexible bracket orientation for easier installation.

Product Highlights

This valve is reliable for on/off control with a fail-closed mechanism, ensuring system safety. It operates on twenty-four volts AC and includes one auxiliary switch. The NEMA three R enclosure provides protection in various environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN2AHPXA202

Technical Specifications

• Connection Size: 1/2 inch NPT
• Valve Type: 2-Way Control Ball Valve
• Cv Rating: 4.7
• Trim Material: Plated Brass
• Control: On/Off (Fail Closed)
• Voltage: 24 VAC
• Enclosure: NEMA 3R
