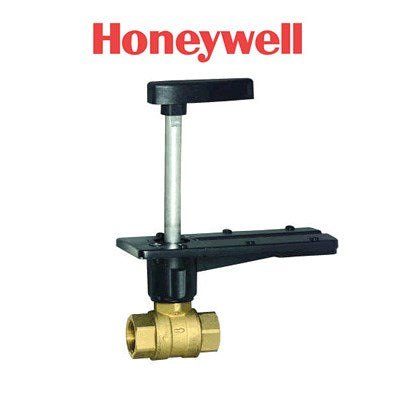

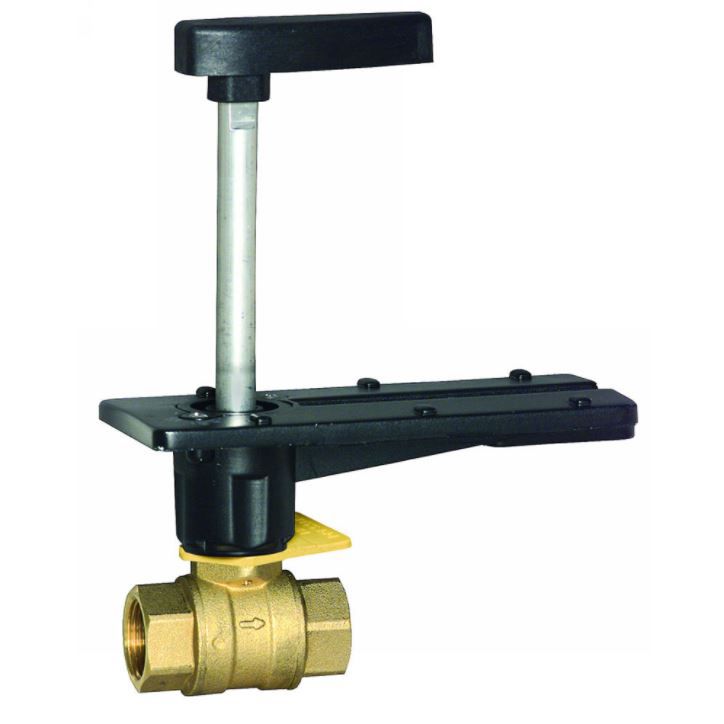

Honeywell VBN2ABSX0000 Control Ball Valve 2-Way 1/2 in NPT 0.38 Cv

Product Description

The Honeywell VBN2ABSX0000 is a 2-way control ball valve designed for characterized flow. It has a stainless steel trim and a robust body with a one-half inch NPT connection. The valve includes a Cv rating of 0.38, making it comparable to globe valves with equal percentage flow characteristics. It is specifically designed for operation with low-torque actuators.

• Features a parabolic flow insert within the ball for optimal flow characteristics.
• Offers Cv ratings that are on par with standard globe valves.
• Includes a removable manual override handle for manual operation.

Product Highlights

This valve is suitable for a variety of HVAC applications and offers reliable performance with low-torque actuators.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2ABSX0000

Technical Specifications

• Model: P1911928
• Valve Size: 0.5 in
• Connection: NPT
• Valve Piping: 2-Way
• Cv: 0.38 CV
• Trim Material: Stainless Steel
• Close-Off Rating: 130 PSI
• Linkage: Direct Coupled Actuator Base
