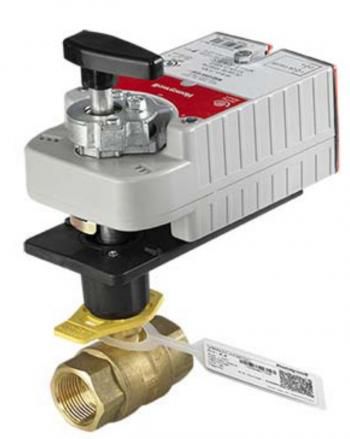

Honeywell VBN2ABPX7102 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2ABPX7102 is a two-way control ball valve with an electric actuator. It is suitable for regulating hot and chilled water, including up to fifty percent glycol solutions in HVAC applications. This assembly features half-inch NPT connections, providing a direct interface with water piping.

• Valve size of 1/2 inch NPT
• 0.38 Cv rating for optimal flow control
• Durable NEMA 3R enclosure for outdoor use

Product Highlights

This valve includes a plated brass trim and a fail-safe design with a spring return actuator. It operates on twenty-four volts AC and can manage two-position control signals, ensuring reliable hot and cold water management in various HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN2ABPX7102

Technical Specifications

• Valve Type: Ball Valve
• Valve Size: 0.5 inches
• Connection: NPT
• Valve Piping: 2-Way
• Cv: 0.38 Cv
• Trim Material: Brass
• Voltage: 24 VAC
• Fail-Safe: Spring Return
• Nema Rating: Nema 3R
• Actuator: MS8105A1030
• Close-Off Rating: 130 PSI
• Runtime: 45 Seconds
• Control Signal: Two Position
• Trim: Nickel Chrome Plated Brass
