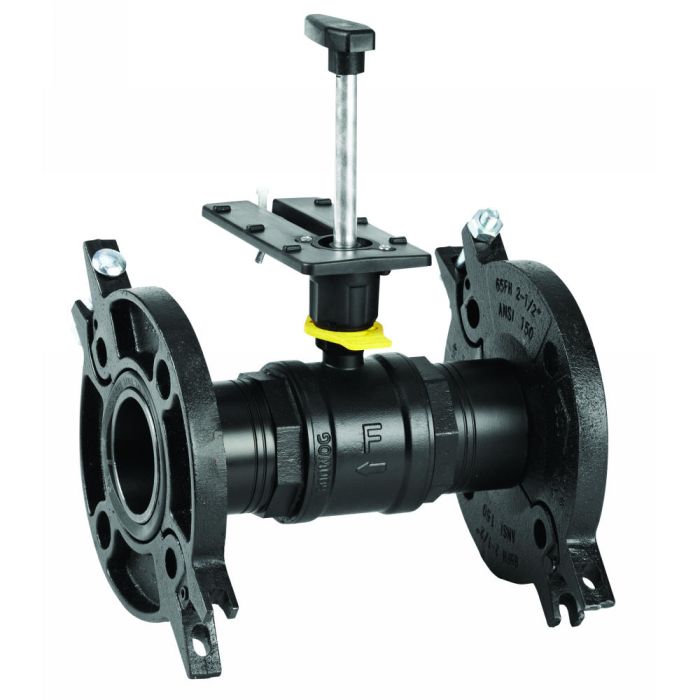

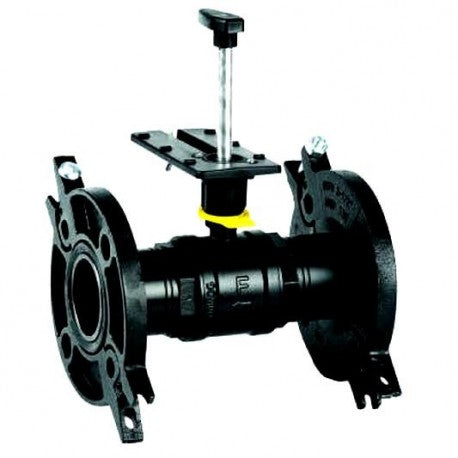

Honeywell VBF5011A1882 Two-Way Flanged Control Ball Valve 5 inch

Product Description

The Honeywell VBF5011A1882 is a two-way flanged control ball valve designed for effective control of hot and chilled water, capable of accommodating up to fifty percent glycol solutions in HVAC systems.

This valve is compatible with various Honeywell electronic actuators for two-position or modulating functionality.

• Flanged connection with a capacity of 250 Cv.
• Operates as a mixing or diverting valve.
• Durable construction with a cast iron body, stainless steel stem, and Teflon seat.

Product Highlights

This valve features field configurable fail-safe positions for both normally open or normally closed operations and ensures an optimal flow control experience.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF5011A1882

Technical Specifications

• Valve Size: 5 inches
• Flow Coefficient (Cv): 250
• Valve Type: Ball Valve
• Number of Ways: 2-Way
• Connection Type: Flanged
• Body Material: Cast Iron
• Stem Material: 316 Stainless Steel
• Seat Material: Teflon
• Media: Hot and Chilled Water with Glycol Solutions up to 50%
• Flow Characteristic: Equal Percentage
• Operating Temperature: -22 F to 250 F
• Close Off Pressure: 70 psi
• Leakage Specification: ANSI Class IV (0.01% of Cv)
