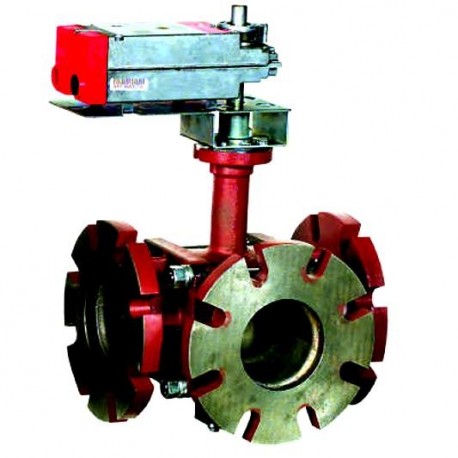

HONEYWELL VBF3KU1S0C 3-Way Flanged Actuated Control Ball Valve

Product Description

The Honeywell VBF3KU1S0C is a 3-way flanged ball valve designed for effective control of hot and chilled water. It can handle up to fifty percent glycol solutions in closed-loop HVAC systems. The valve supports two-position or modulating functions and is compatible with various actuator types including 2-position on/off, 3-position floating, or 0-10Vdc modulating actuators.

• ANSI Class 125 flanged connections.
• Configurable for normally open or normally closed fail-safe positions.
• Can function as a mixing or diverting valve.

Product Highlights

This valve offers versatility for HVAC applications. It can adapt to different flow functions and scenarios for optimal fluid control.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3KU1S0C

Technical Specifications

• Valve Type: 3-Way Ball Valve
• Application: Control of hot and chilled water with glycol solutions up to fifty percent in closed-loop HVAC systems
• Flow Characteristic: Equal percentage or linear
• Fail-Safe Position: Field configurable for normally open or normally closed
• Valve Material: 316 stainless steel (ball and stem)
• Connection Type: Flanged
• ANSI Class: 125
• A-Port Leakage Class: ANSI Class IV (0.01% of Cv)
• Medium Temperature Range: -30 to 120 degrees Celsius
