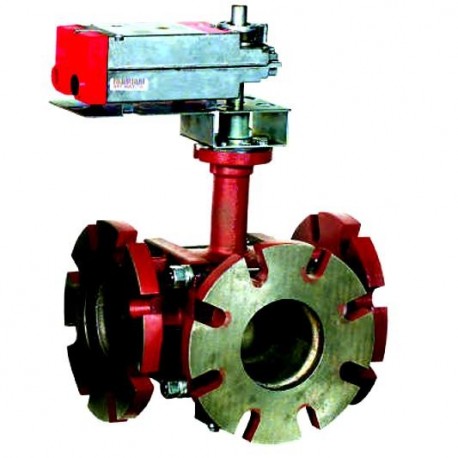

HONEYWELL VBF3K21S0D 3-Way Actuated Control Ball Valve

Product Description

The HONEYWELL VBF3K21S0D is a 3-way actuated control ball valve designed for effective control of hot and chilled water with glycol solutions up to fifty percent in closed-loop HVAC systems. This valve features a flanged cast iron body, ensuring durability and reliability in various applications. The Teflon seat enhances performance and reduces wear, while the 316 stainless steel stem provides additional resistance to corrosion. The valve is capable of both two-position or modulating functions, allowing for flexible use. It supports non-isolating mixing or diverting control, ideal for temperature regulation in HVAC setups. A removable manual operating handle is included for valve control during installation or power outages. The valve can also be configured in the field for normally open or normally closed fail-safe positions.

• Suitable for hot and chilled water applications.
• Features a durable cast iron body and stainless steel stem.
• Provides equal percentage or linear flow characteristics.

Product Highlights

This ball valve is essential for ensuring proper flow control in HVAC systems, making it a critical component for engineers and technicians in the field.

Product Information

Standard Information

• Brand: Honeywell
• Control Type: Actuated Control Ball Valve

Technical Specifications

• Service: Hot and chilled water with glycol solutions up to 50%
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Close Off Pressure: 70 psi
• Sizes: Compatible with four to six inch ANSI Class 125 flanged connections
• Flow Characteristics: Equal percentage or linear
• Actuation Control Schemes: Four factory-installed options: Floating, Modulating (2-10 V), Spring Return 24V 2-Position, Spring Return Modulating/Floating
• Fail-Safe Position: Field configurable for normally open or normally closed
• Manual Operation: Removable operating handle included
• Seat Leakage: ANSI Class IV (0.01% of Cv)
• Enclosure: Optional NEMA 3R (IP54) rated for outdoor use
• Actuator Mounting Positions: Four options available
• Cv Choices: Range from 91 to 650
• Valve Ball and Stem: Made of 316 stainless steel
• Control: Non-isolating mixing or diverting control capabilities
