Honeywell VBF3K21S0B 5-Inch 3-Way Ball Valve

Product Description

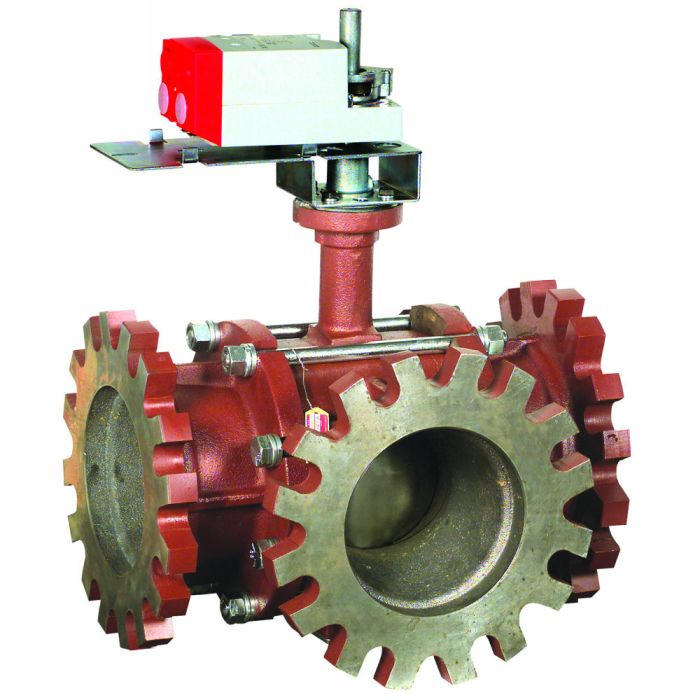

The Honeywell VBF3K21S0B is a 5-inch 3-way ball valve designed for effective modulating control. It has a Cv of 240, great for various applications. The valve features a durable cast iron body and is equipped with a Teflon seat along with a stainless steel stem. This product is suitable for hot and chilled water tasks, including glycol solutions with a maximum concentration of fifty percent.

• Flanged connection for easy installation.
• Operates efficiently within the medium temperature range of -22 degrees Fahrenheit to 250 degrees Fahrenheit.
• Compatible with 2-stage on/off, 3-stage floating, or 0-10 Vdc modulating actuators.

Product Highlights

The Honeywell VBF3K21S0B serves as both a mixing and diverting valve, making it versatile in HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF3K21S0B

Technical Specifications

• Model: P1911921
• Control Valve Type: Ball Valve
• Size: 5 inches
• Connection: Flange
• Pattern: 3-way
• Cv: 240 CV
• Fail-Safe: Non-Spring Return
• Trim Material: Stainless Steel
• Service: Hot And Chilled Water with Glycol Solutions Up To 50%
• Flow Characteristic: Port A To AB: Equal Percentage / Port B To AB: Linear with 20% Reduced Flow Capacity
• Operating Temperature: -22 degrees Fahrenheit To 250 degrees Fahrenheit (-30 degrees Celsius To 121 degrees Celsius)
• Close Off Pressure: 70 psi
