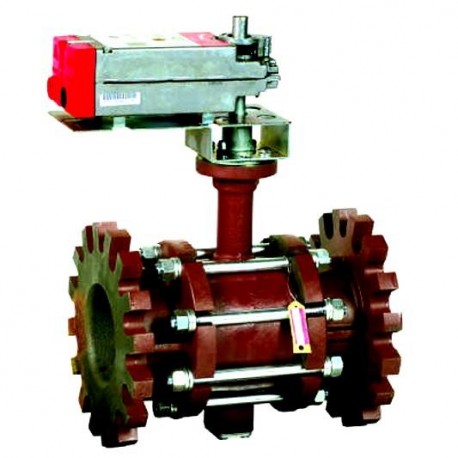

Honeywell VBF2L71S0C Two-Way Ball Valve Assembly

Product Description

The Honeywell VBF2L71S0C is a two-way ball valve assembly designed for controlling hot and chilled water with up to 50% glycol solutions in closed-loop HVAC systems. This valve provides efficient and reliable control in various applications.

• Controls water and glycol solutions in HVAC systems.
• Provides two-position functionality with spring return.
• Features flanged connections for easy installation.

Product Highlights

The valve delivers functionality and reliability in HVAC applications, ensuring effective control for hot and chilled water systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF2L71S0C

Technical Specifications

• Valve Size: 6 in
• Valve Piping: 2-Way
• Connection: Flanged
• CV: 650
• Fail-Safe: Spring Return
• Actuator: MS8120A1007
• Voltage: 24VAC
• Frequency: 50/60 Hz
• Close-Off Rating: 70 PSI
• Max Static Pressure: 240 PSI
• Trim: Stainless Steel
• Valve Ball and Stem: 316 stainless steel
• Actuation Control Schemes: Spring Return 24V 2-Position
• Position: Normally Closed
• NEMA Rating: Nema 2
• Runtime: 20 Secs
