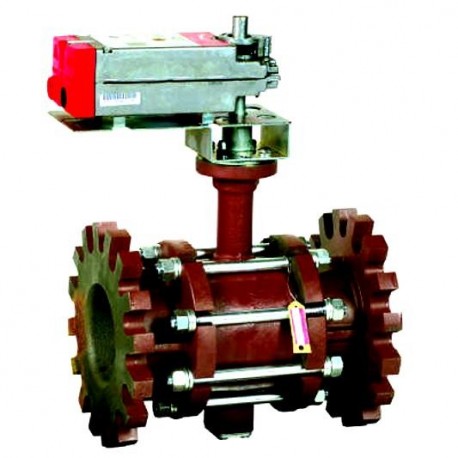

Honeywell VBF2KU1S0B 2-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF2KU1S0B is a two-way flanged ball valve. It is designed for controlling hot and chilled water, suitable for use with up to fifty percent glycol solutions in closed-loop HVAC systems. This valve supports both two-position and modulating functions, providing flexibility in operation. The available sizes range from four inches to six inches with ANSI Class 125 flanged connections.

• Controls water and glycol solutions in HVAC systems.
• Offers equal percentage or linear flow characteristics.
• Complies with ANSI Class IV leakage specification.

Product Highlights

This valve features a removable manual operating handle and a durable 316 stainless steel ball and stem, ensuring reliable performance and easy manual control during installation or in case of power loss.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF2KU1S0B

Technical Specifications

• Control Valves Type: Ball Valve
• Sizes: From four to six inches with ANSI Class 125 flanged connections
• Flow Characteristics: Equal percentage or linear
• Actuation Control Schemes: Floating, Modulating (2-10 V), Spring Return 24V 2-Position, Spring Return Modulating/Floating
• Fail-Safe Position: Configurable for normally open or normally closed
• Manual Operating Handle: Removable
• Leakage Specification: ANSI Class IV (0.01% of Cv)
• Actuator Mounting Positions: Four options available
