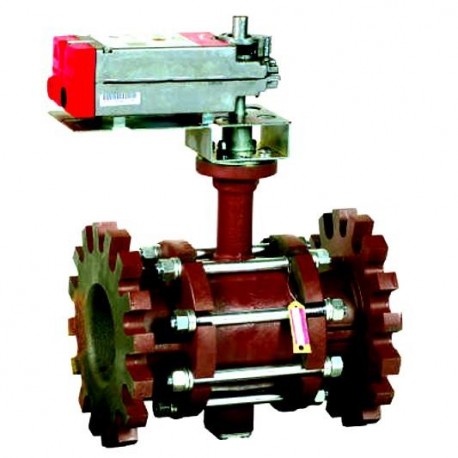

Honeywell VBF2JT1S0C Two-Way Ball Valve Assembly

Product Description

The Honeywell VBF2JT1S0C is a two-way ball valve assembly for controlling hot and chilled water systems, including applications with up to fifty percent glycol solutions. The valve features a cast iron body and a stainless steel stem, ensuring durability in HVAC systems. It is designed for either two-position or modulating functions and is available in sizes of four to six inches with ANSI Class 125 flanged connections.

• Suitable for hot and chilled water with glycol solutions up to fifty percent.
• Features a robust cast iron body and stainless steel stem.
• Offers both equal percentage and linear flow characteristics.

Product Highlights

This valve assembly is ideal for use in closed-loop HVAC systems, enhancing system performance and efficiency.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF2JT1S0C

Technical Specifications

• Service: Hot and chilled water with glycol solutions up to fifty percent
• Flow Characteristic: Equal percentage and linear with full port
• Operating Temperature: Negative twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Close Off Pressure: Seventy psi
• Sizes: Four to six inches with ANSI Class 125 flanged connections
• Actuation Control Schemes: Four factory-installed options available
• Fail-safe Position: Configurable for normally open or closed
• Manual Operating Handle: Removable for emergency control
• Leakage Specification: ANSI Class IV leakage specification
• Enclosure: Optional NEMA 3R rated for outdoor use
• Actuator Mounting Positions: Four options available
• Cv Choices: Range from ninety-one to six hundred fifty
• Valve Ball and Stem: Made of 316 stainless steel
