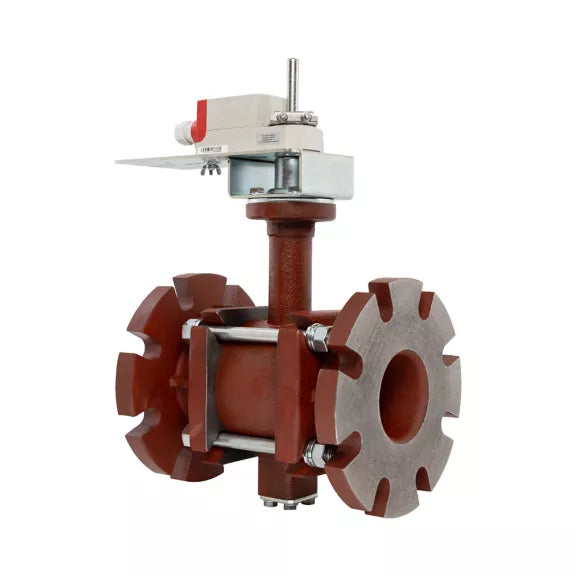

Honeywell VBF2J21S0D 4-Inch 2-Way Ball Valve 254 Cv Flanged Spring Return Modulating

Product Description

The Honeywell VBF2J21S0D is a 4-inch, 2-way ball valve suitable for HVAC applications. It effectively regulates the flow of hot and chilled water, compatible with glycol solutions up to 50%. This valve has flanged connections and a flow coefficient of 254. It works well with various actuator types including on/off, floating, and modulating actuators. A spring return mechanism ensures a fail-safe operation.

• Valve size is four inches with ANSI Class 125 flanged connections.
• Designed for modulating functions.
• The valve ball and stem are made of stainless steel.

Product Highlights

This ball valve is ideal for HVAC systems, utilizing advanced components for durability and reliability in fluid control.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBF2J21S0D

Technical Specifications

• Valve Type: Ball Valve
• Valve Size: 4 inches
• Valve Body Pattern: 2-Way
• Valve Connection Type: Flanged
• Flow Coefficient: 254 Cv
• Fail-Safe: Spring Return
• Trim Material: Stainless Steel
• Application: HVAC systems
• Controlled Medium: Hot and chilled water with glycol solutions up to 50%
• Voltage: 24vac
• Nema Rating: Nema 2
• Actuator: MS7510A2008
• Close-Off Rating: 70 PSI
• Control Signal: On/Off, Floating, 0-10vdc, 2-10vdc, 4-20mA
• Runtime: 90 seconds
• Item Weight: 75 lbs per EA
• Feedback Signal: 2-10vdc
