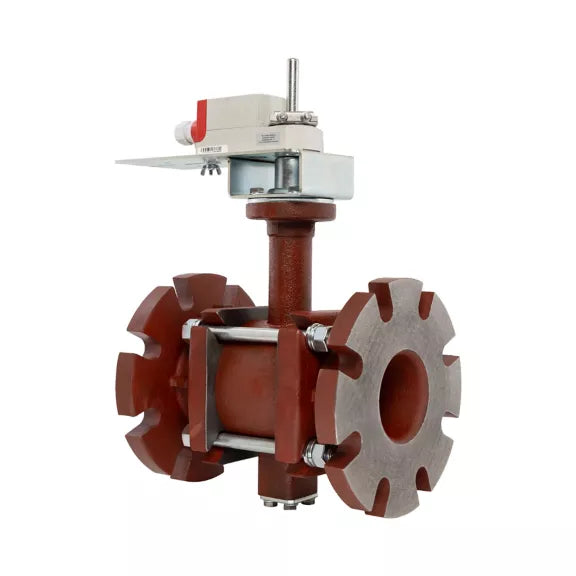

Honeywell VBF2J11S0D 2-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF2J11S0D is a 2-way actuated control ball valve. It is designed for managing hot and chilled water with glycol solutions up to 50% in HVAC systems. This valve has a cast iron body, Teflon seat, and a stem and ball made from 316 stainless steel. It supports two-position or modulating control functions and features ANSI Class 125 flanged connections. The valve operates with equal percentage characteristics.

• Sizes available from four to six inches
• Designed for hot and chilled water with glycol solutions
• ANSI Class 125 flanged connections

Product Highlights

Ideal for use in HVAC systems for effective flow control.

Product Information

Standard Information

• Brand: Honeywell
• Service: Hot and chilled water with glycol solutions up to 50%

Technical Specifications

• Control Valves Type: Ball Valve
• Flow Characteristic: Equal percentage, linear with full port
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Close Off Pressure: 70 psi
• Valve Size Diameter: 4 to 6 inches
• Valve Connection Type: ANSI Class 125 flanged connections
• Valve Ball Material: 316 stainless steel
• Valve Stem Material: 316 stainless steel
• Leakage Rating: ANSI Class IV leakage specification (0.01% of CV) on most configurations
