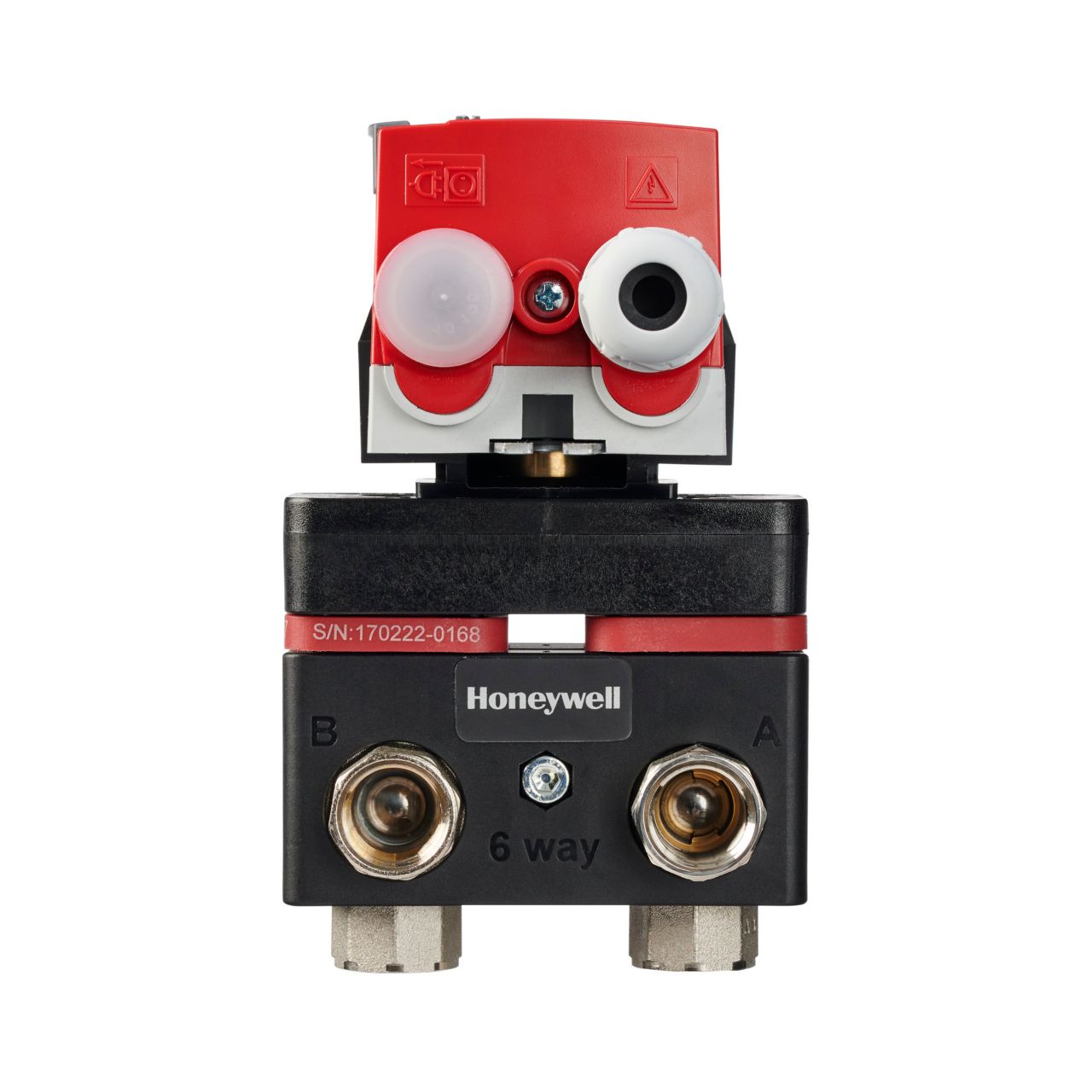

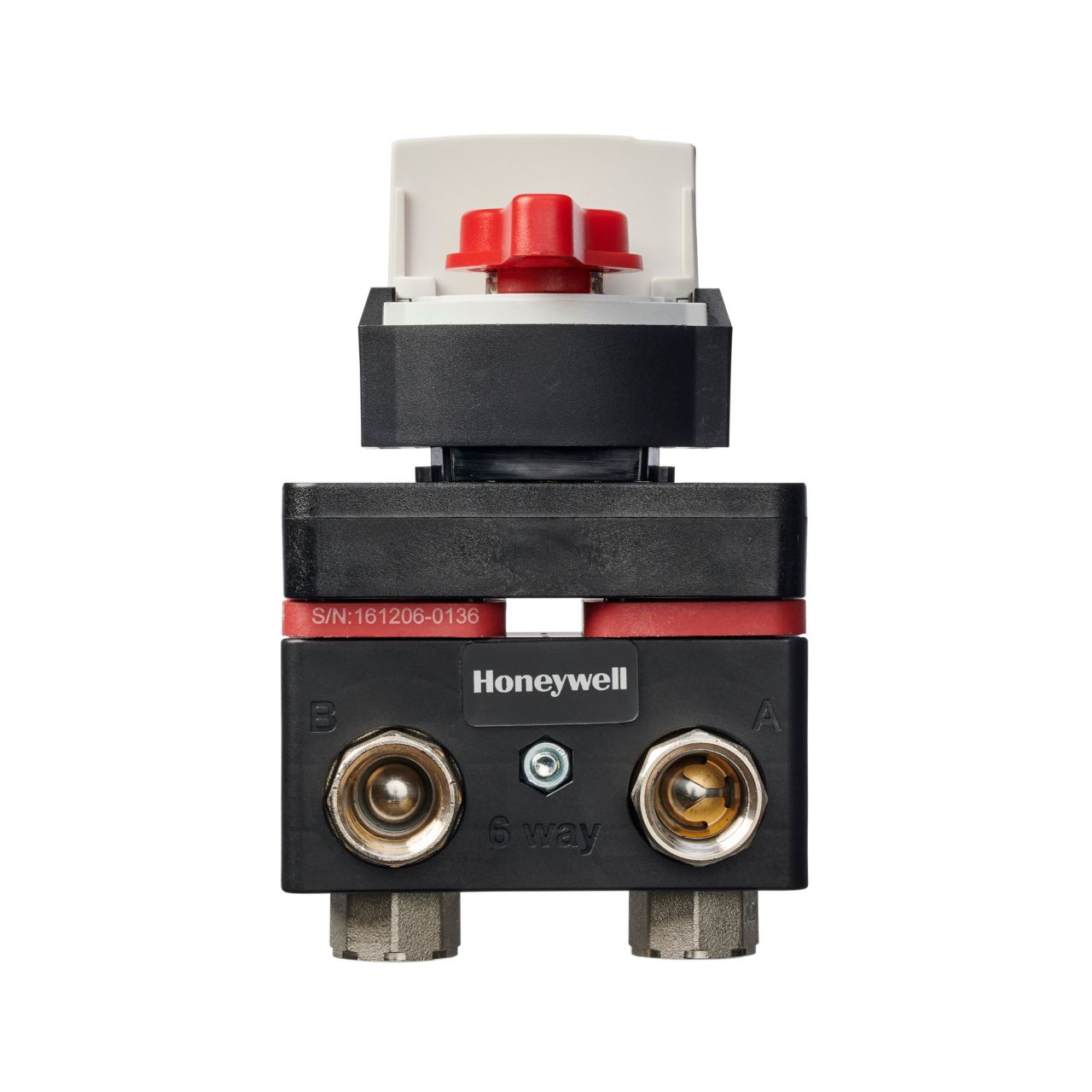

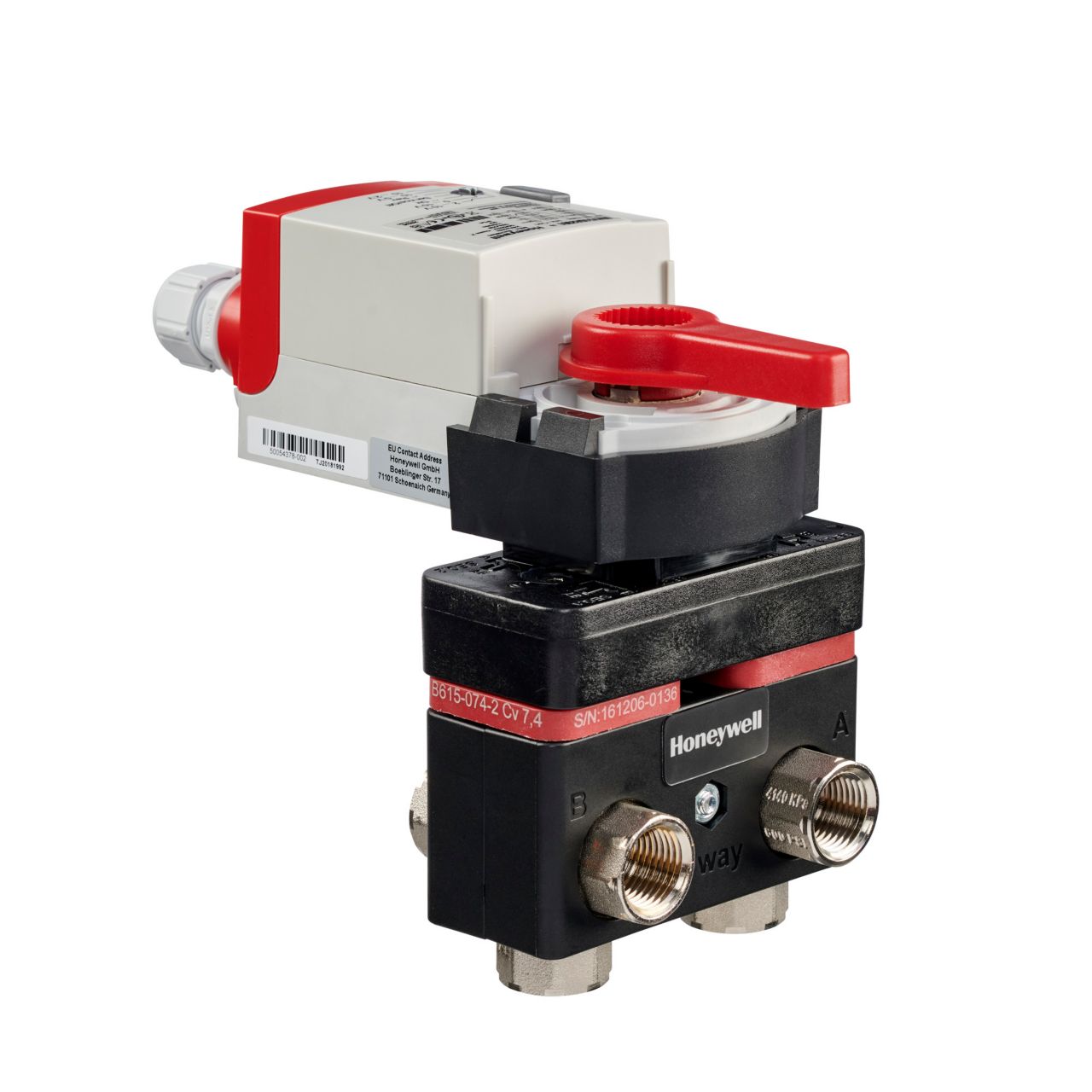

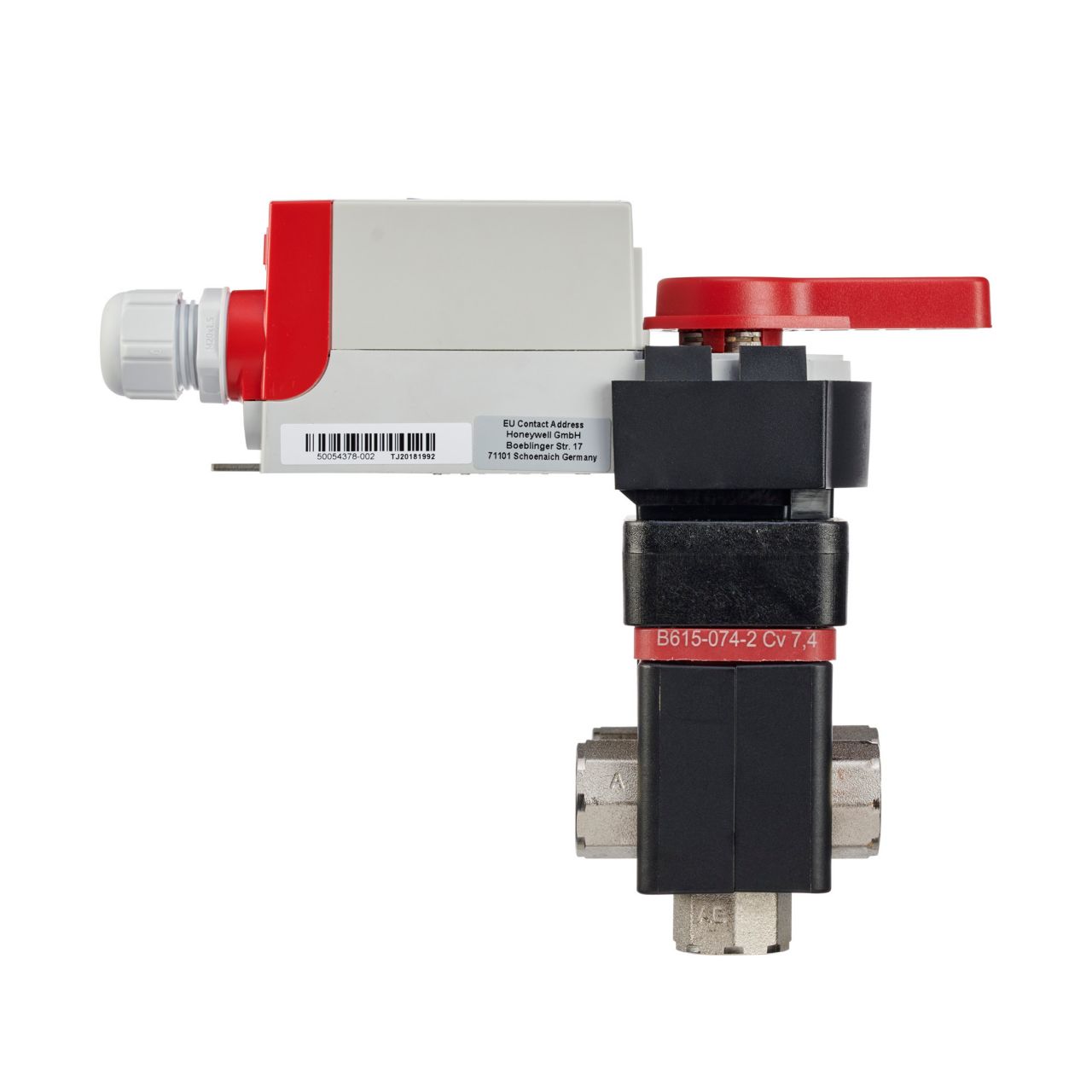

Honeywell VB6B074+100+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6B074+100+AL is a six-way control valve assembly aimed at enhancing efficiency in closed loop systems. This model includes a three-quarter inch connection, making it ideal for systems operating with water or glycol mixtures up to sixty percent concentration.

• Features a nickel-plated forged brass body with stainless steel ball and stem.
• Incorporates a direct-coupled actuator providing eighty-eight inch pounds of torque for precise modulation.
• Designed to serve as both a change-over and control valve, linking a single two-pipe heat exchanger to four-pipe systems.

Product Highlights

This control valve is made for reliability in various temperature ranges and provides straightforward installation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VB6B074+100+AL

Technical Specifications

• Service: Water, Glycol up to 60%
• Flow Characteristic: Equal percentage
• Operating Conditions: 0 F to 212 F (-18 C to 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F to 140 F (-20 C to 60 C)
• Electrical Connections: Field wiring 14-22 AWG to screw terminals under removable access cover
• Auxiliary Switches: Two SPDT
