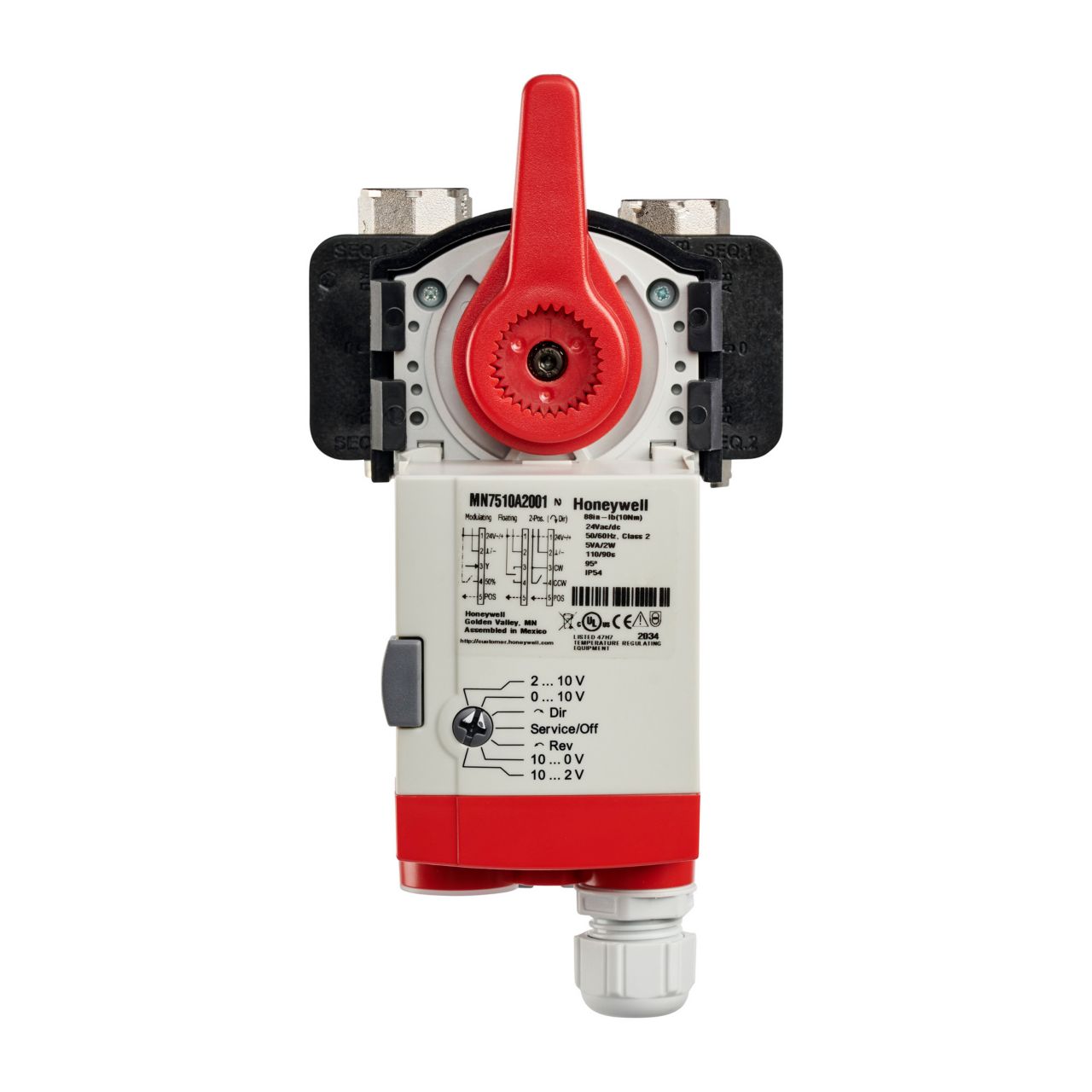

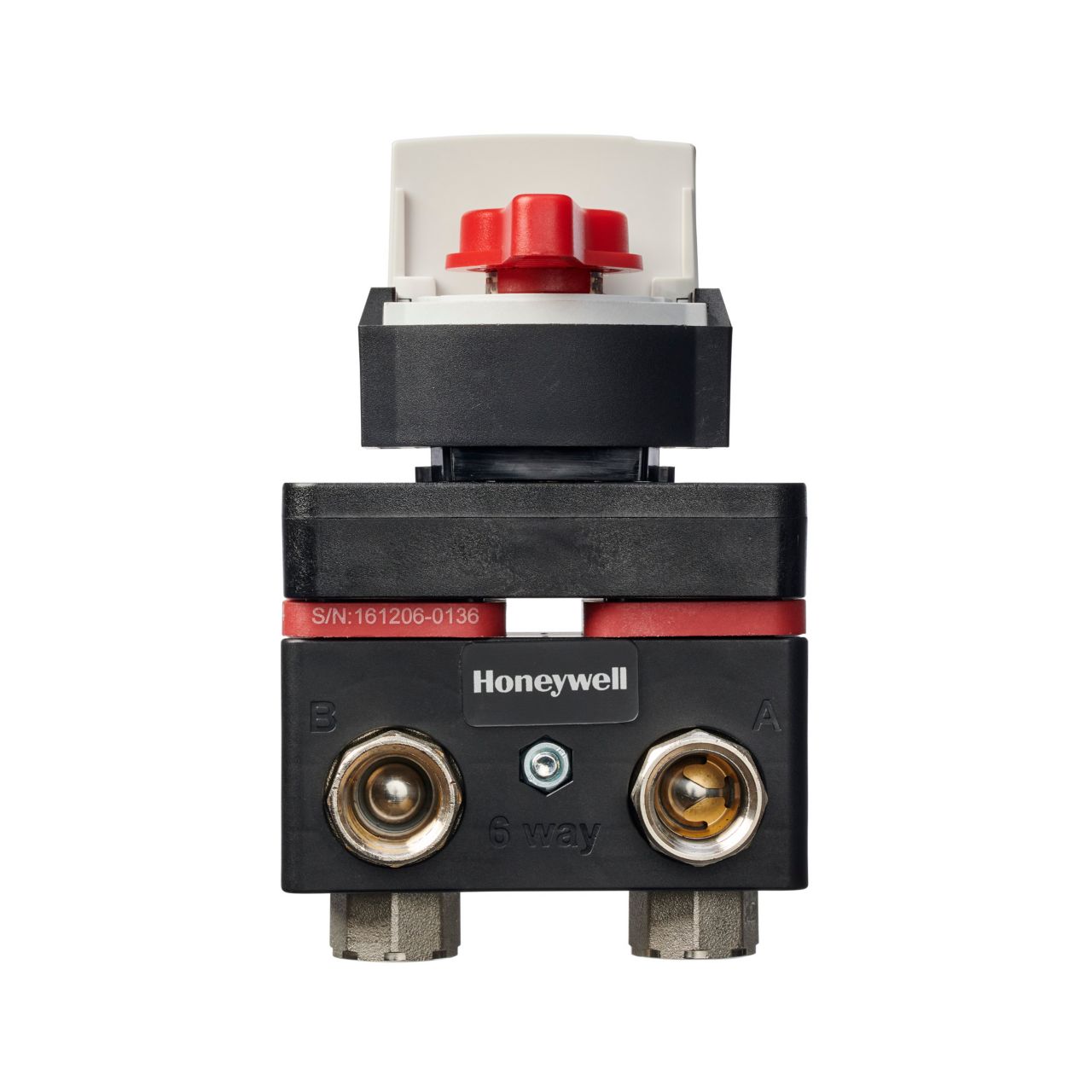

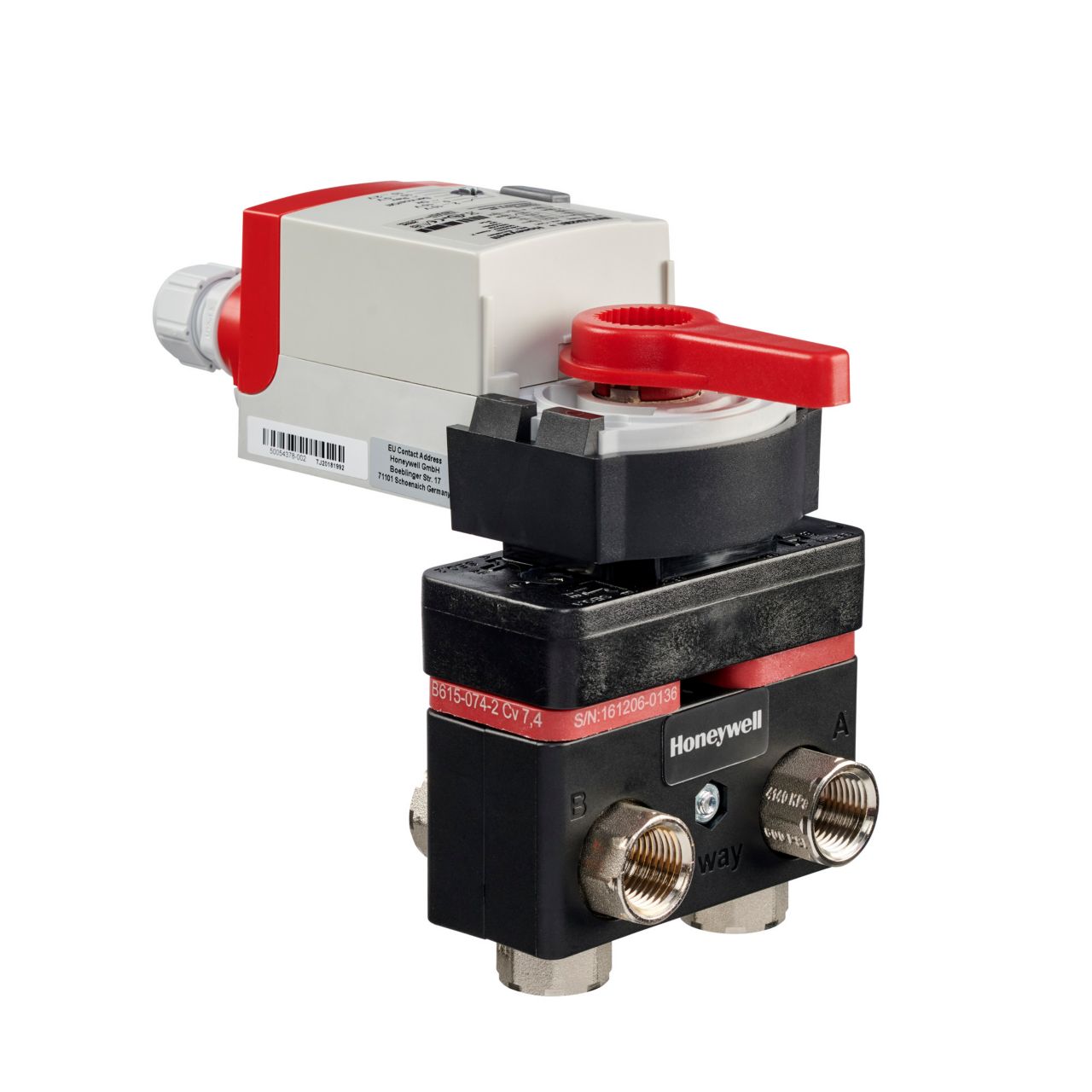

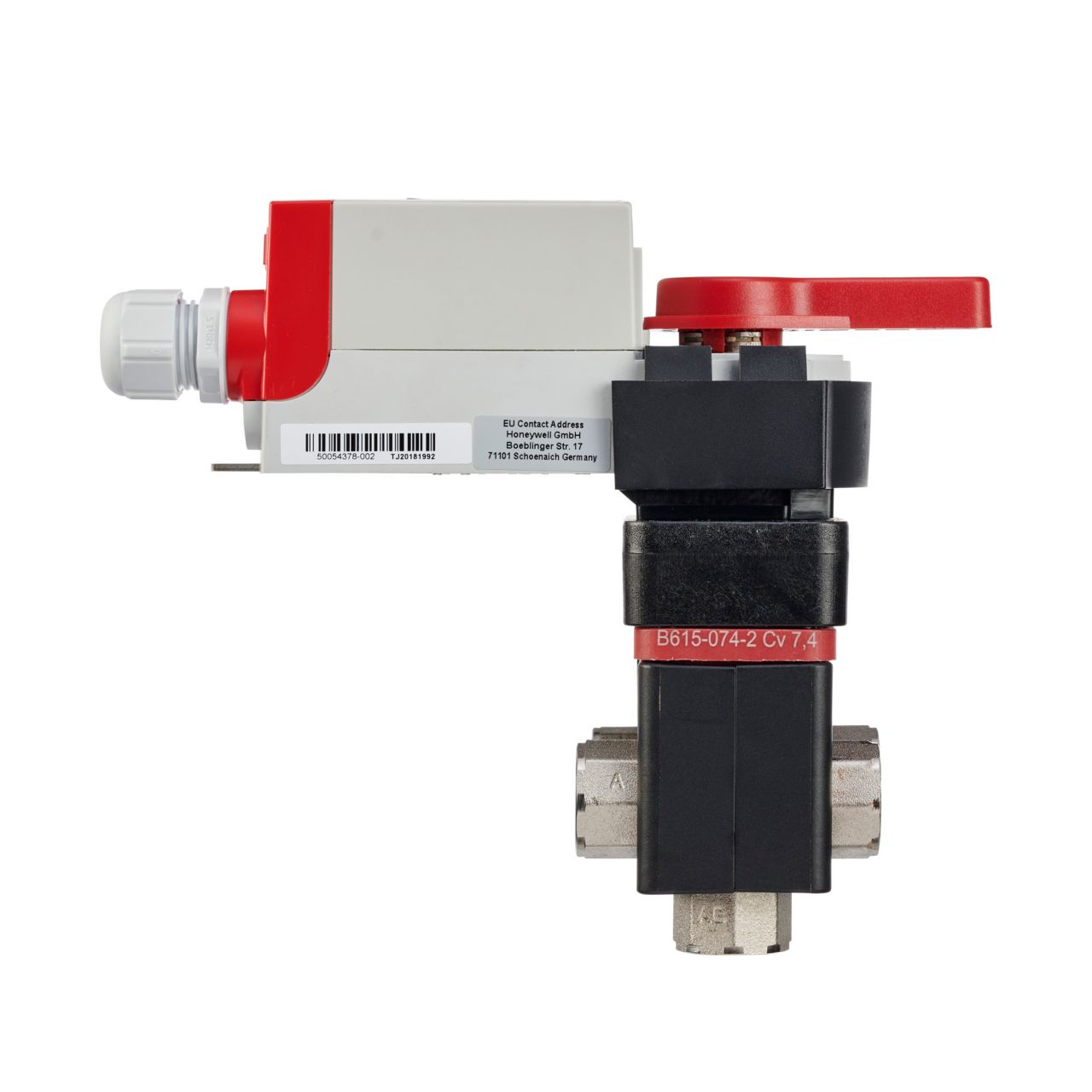

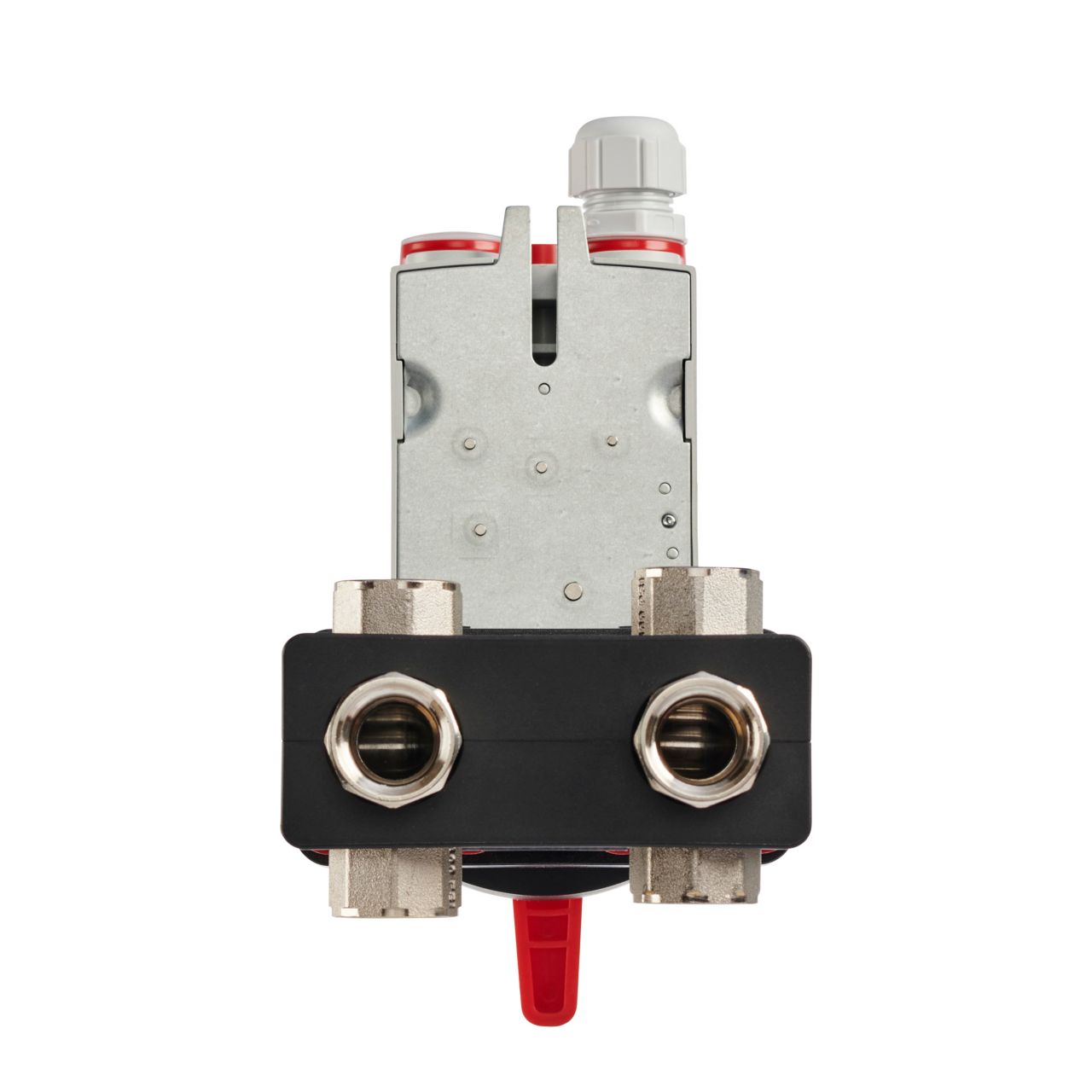

HONEYWELL VB6B074+074+AL 6-Way Control Ball Valve and Actuator Assembly

Product Description

The Honeywell VB6B074+074+AL is a 6-way control ball valve and actuator assembly suitable for four-pipe systems. This unit combines change-over and control valve functions into one assembly. The valve features a nickel-plated forged brass body along with a stainless steel ball and stem. It operates with a direct-coupled actuator on twenty-four VAC and has a removable access cover for easy wiring. It is specifically designed for controlling chilled or hot water in closed loop systems.

• Valve size is three-fourth inch NPT.
• Has Cv values of 7.4 for both sequences.
• Actuator is equipped with a declutch function for manual adjustment.

Product Highlights

This control ball valve allows for efficient management of water flow in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6B074+074+AL

Technical Specifications

• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: Zero Fahrenheit to two hundred twelve Fahrenheit (minus eighteen Celsius to one hundred Celsius)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: Minus five Fahrenheit to one hundred forty Fahrenheit (minus twenty Celsius to sixty Celsius)
• Electrical Connections: Field wiring sixteen to twenty-two AWG to screw terminals under removable access cover
• Auxiliary Switches: Two SPDT
• Housing: Self-centering shaft adapter
• Material: Brass
