HONEYWELL VB6A074+019+AL Control Valve Assembly

Product Description

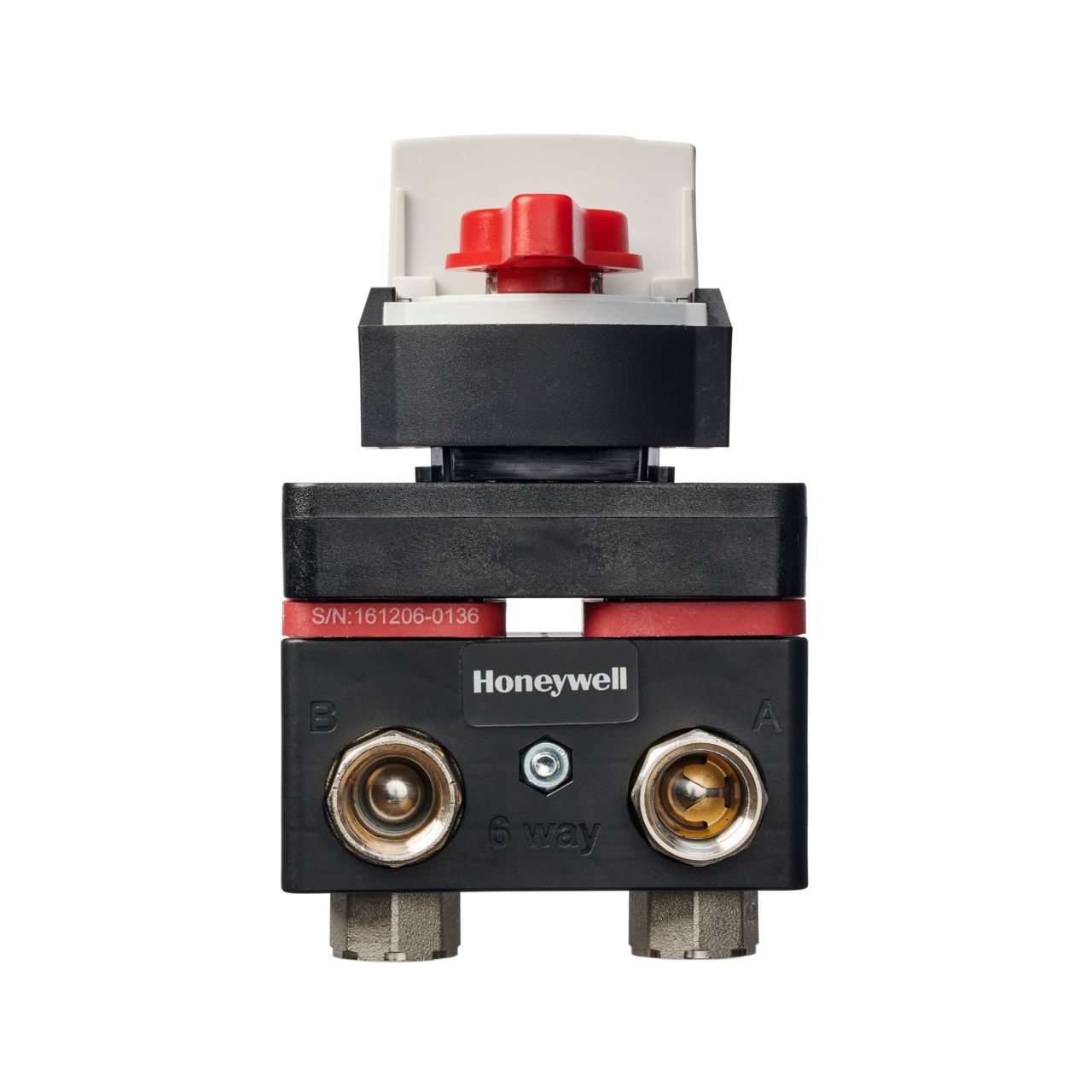

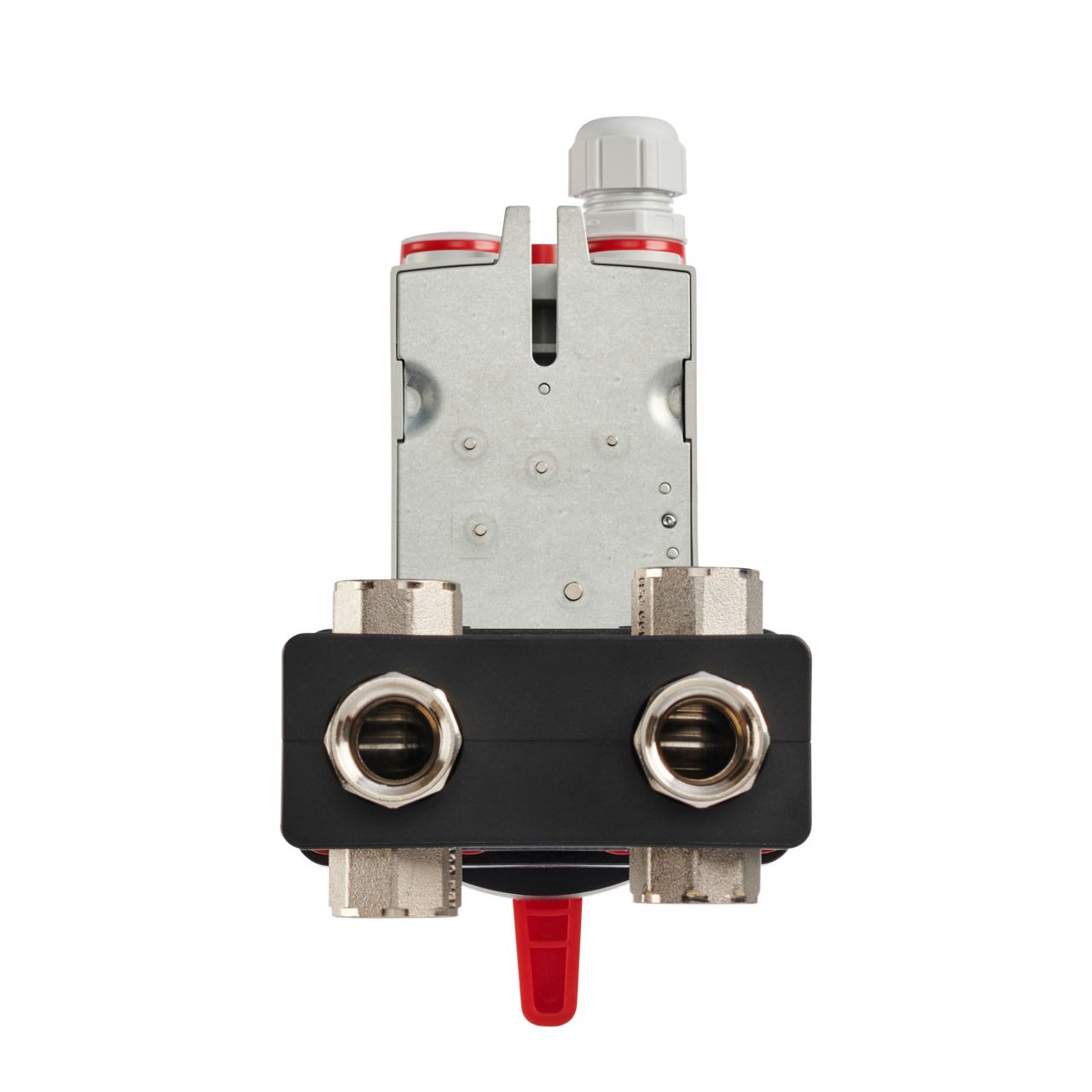

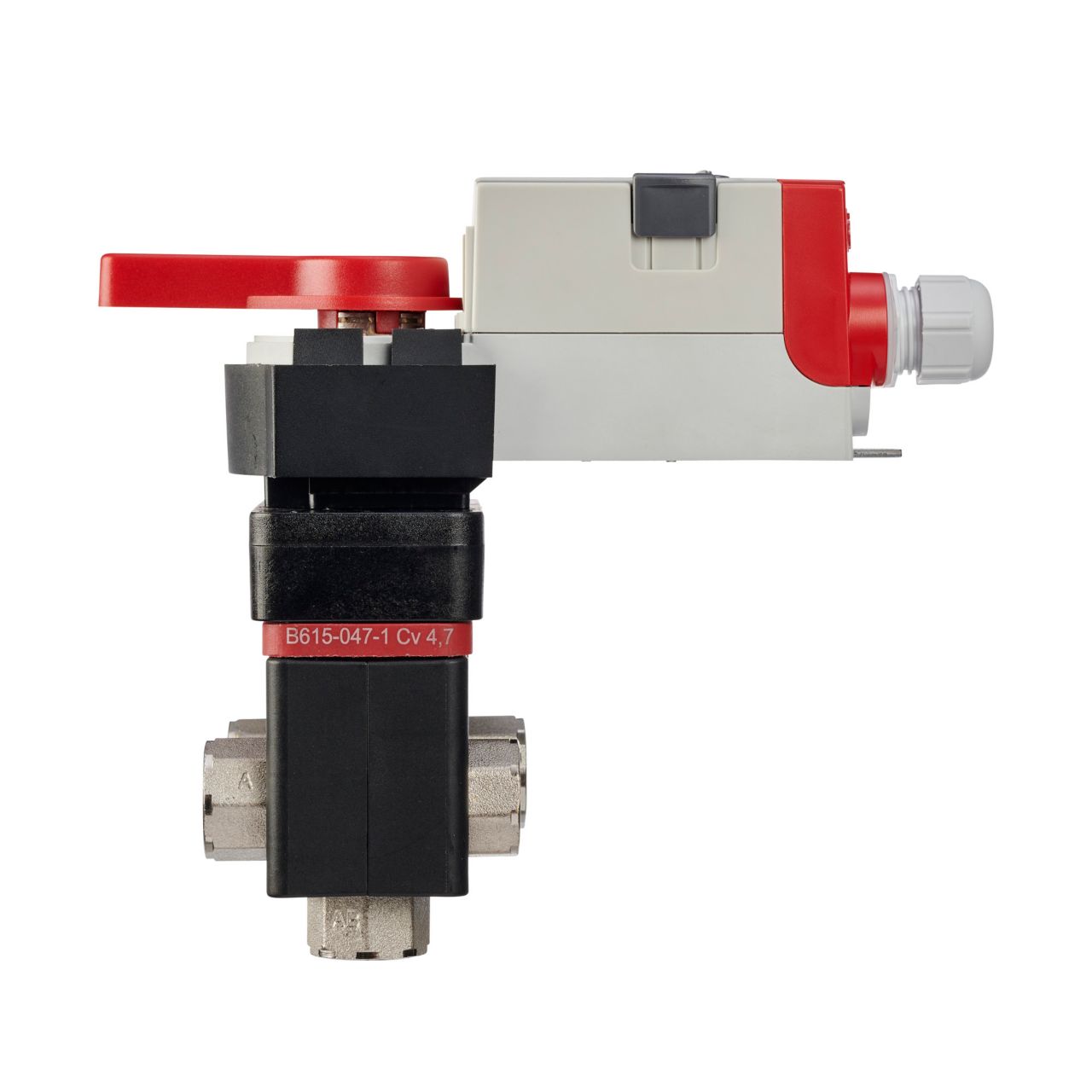

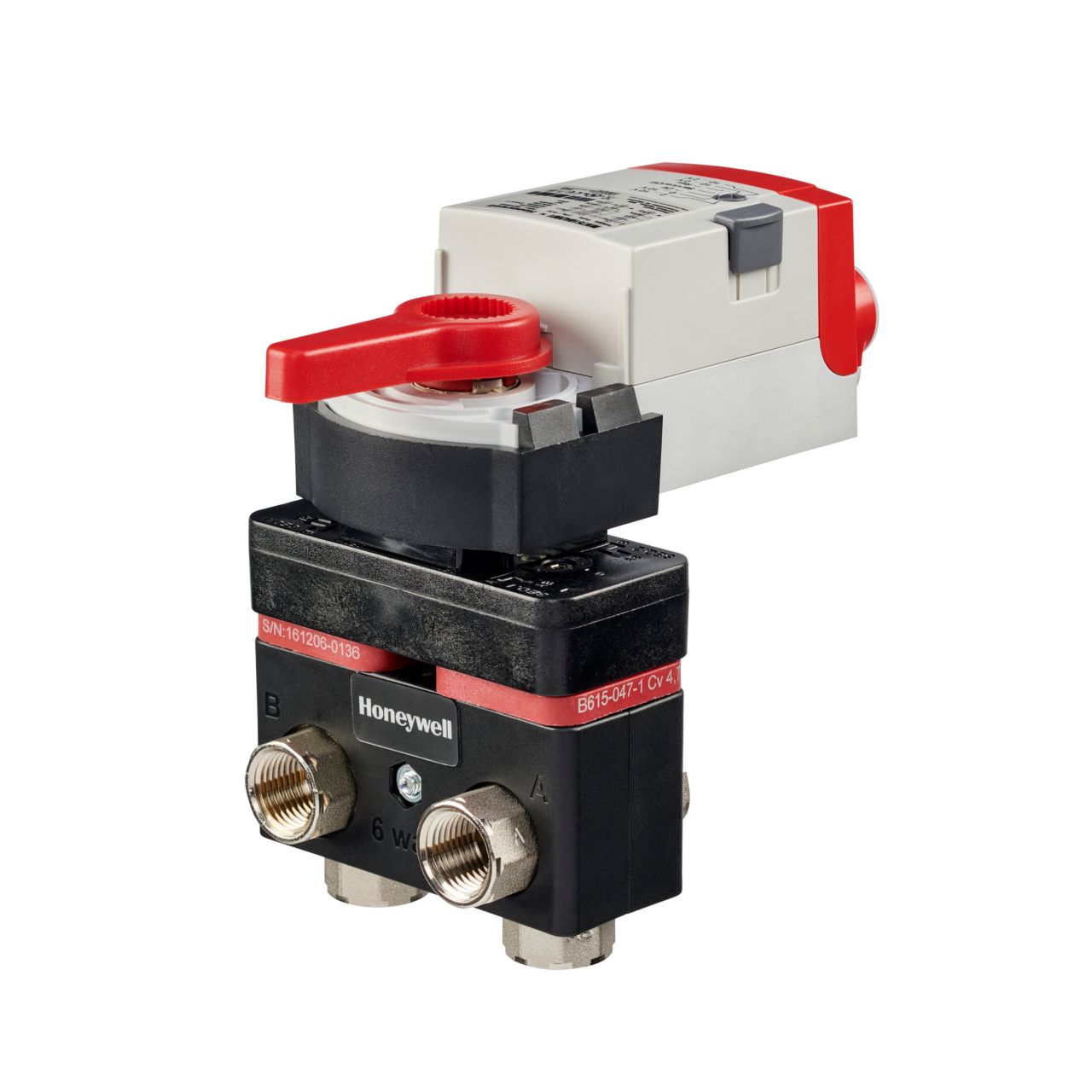

The Honeywell VB6A074+019+AL is a 6-way control valve assembly suitable for closed loop systems. This valve combines change-over and control functions with a single modulating actuator. Featuring a nickel-plated forged brass body and stainless steel ball and stem, it connects a 2-pipe heat exchanger to 4-pipe systems, controlling both chilled and hot water. The actuator operates on twenty-four VAC and includes a removable access cover for easy wiring.

• Nickel-plated forged brass body and stainless steel internal components
• Accommodates water and glycol mixtures up to sixty percent
• Designed for precise flow control applications

Product Highlights

This control valve is ideal for environments requiring reliable temperature management and flow precision.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VB6A074+019+AL

Technical Specifications

• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals
• Auxiliary Switches: Two SPDT
