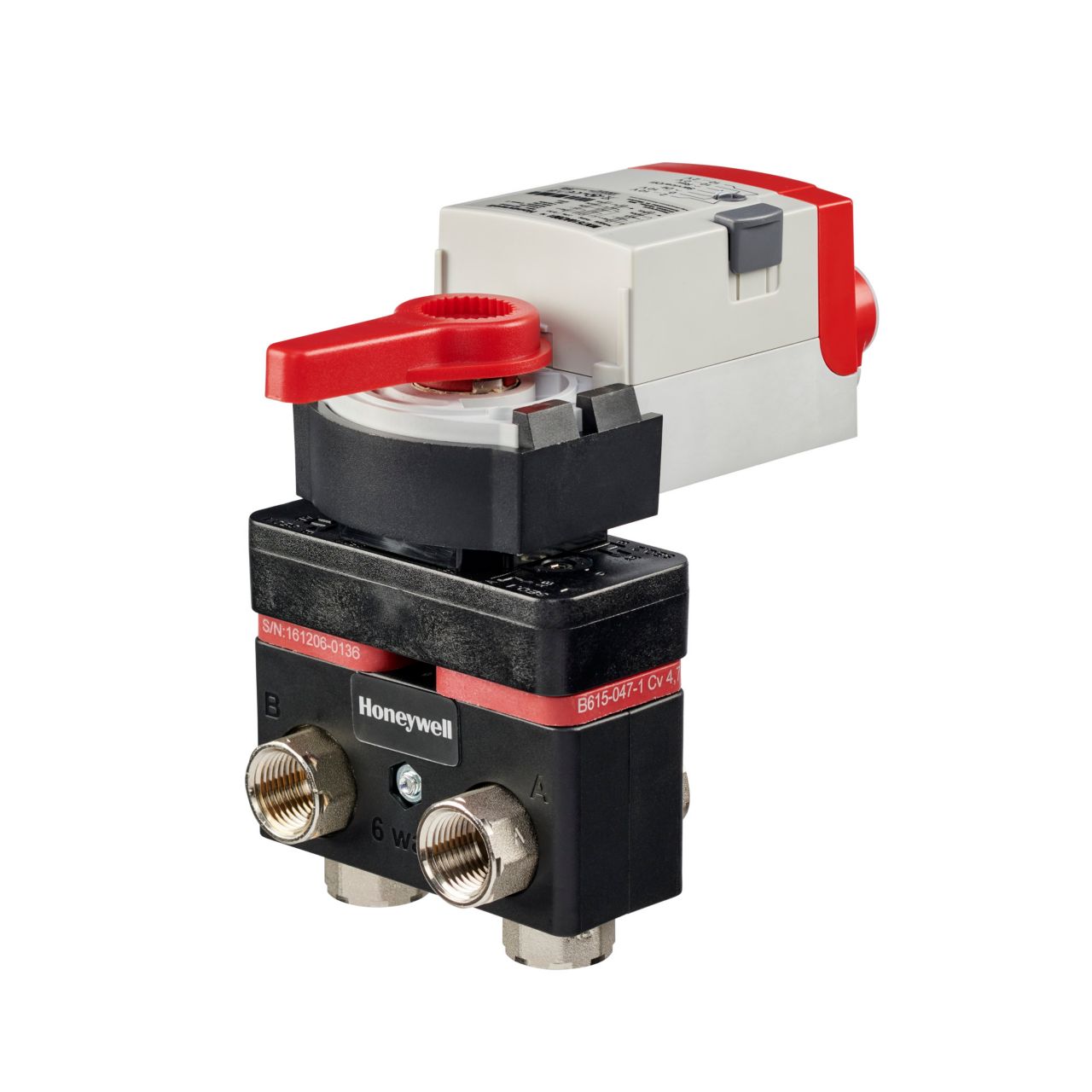

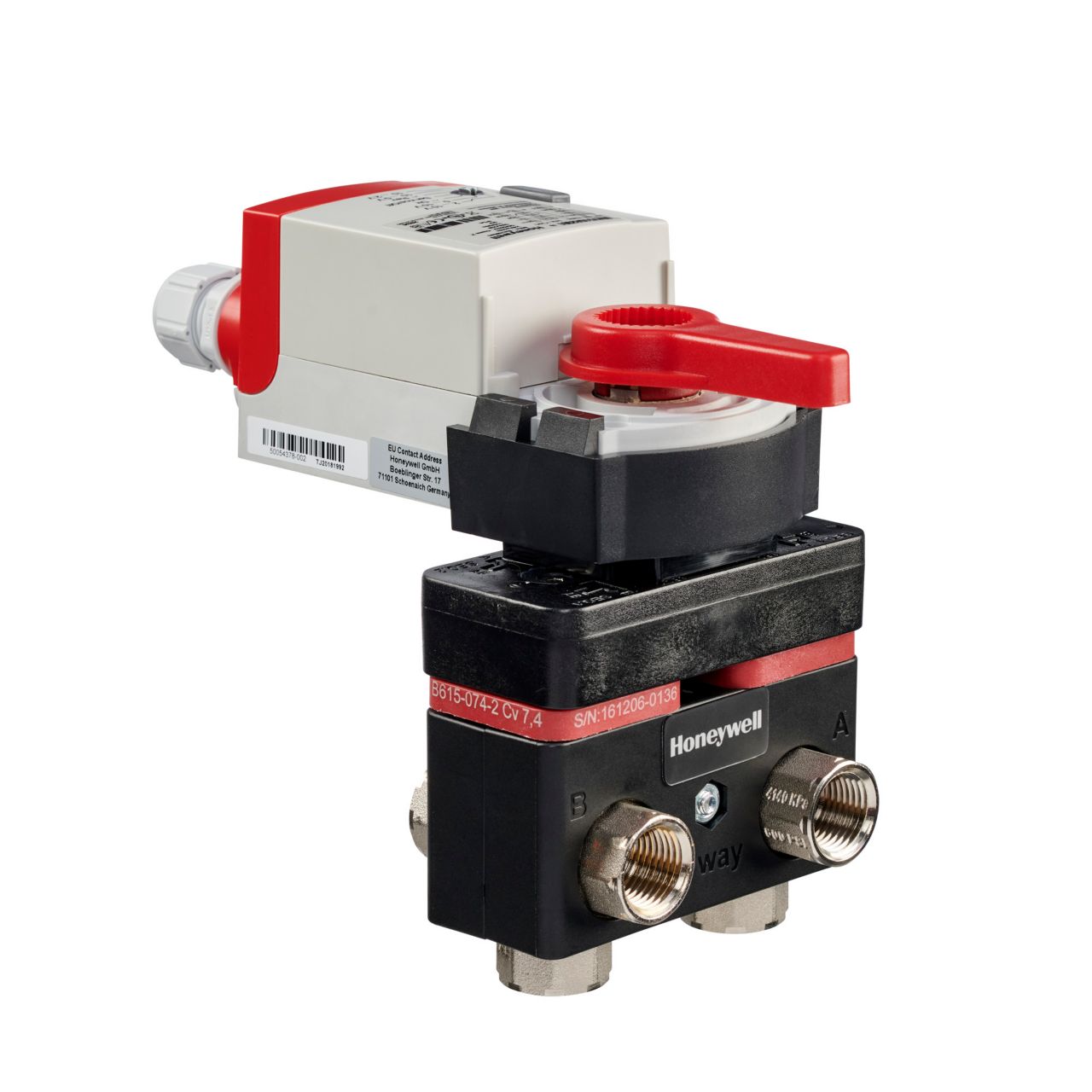

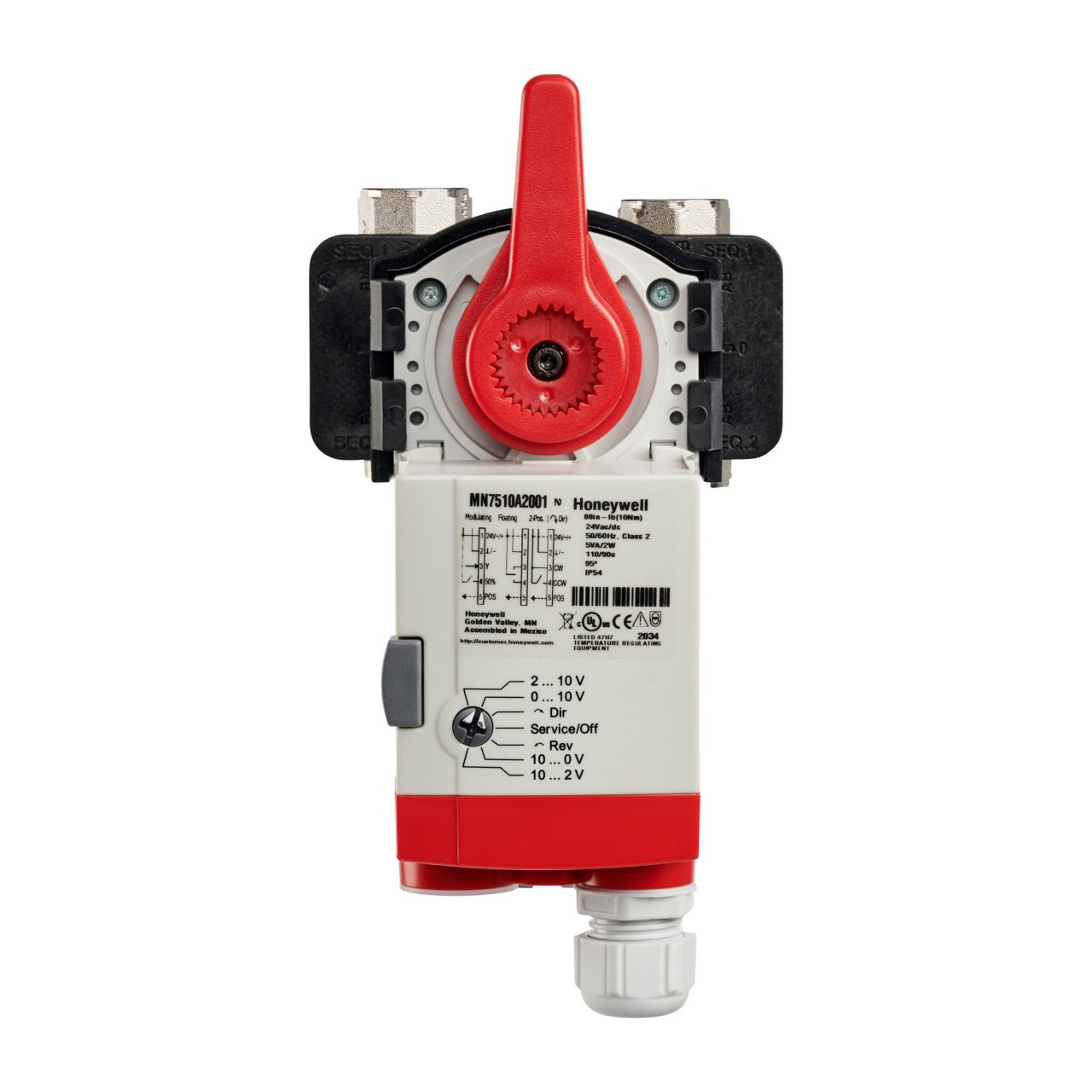

HONEYWELL VB6A019+074+AL VB6 6-Way Control Valve with Modulating Actuator

Product Description

The Honeywell VB6A019+074+AL is a versatile 6-way control valve suitable for use in 4-pipe heating and cooling systems. This valve serves both change-over and control functions, utilizing a single modulating actuator to provide reliable performance. It connects a 2-pipe heat exchanger to a 4-pipe system efficiently. The design allows for the simultaneous rotation of two balls connected to one stem, enabling effective control of supply and return ports in a single operation while keeping the alternative closed.

• Quality construction using nickel-plated brass.
• Designed for both heating and cooling applications.
• Ideal for complex piping systems requiring control and change-over functions.

Product Highlights

The Honeywell VB6 6-way control valve is essential for precise fluid control in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A019+074+AL
• Model: VB6VALVE
• Product Category: 6-Way Valves
• Valve Size: 1/2 inch
• Sequence 1 Cv: 1.9
• Sequence 2 Cv: 7.4
