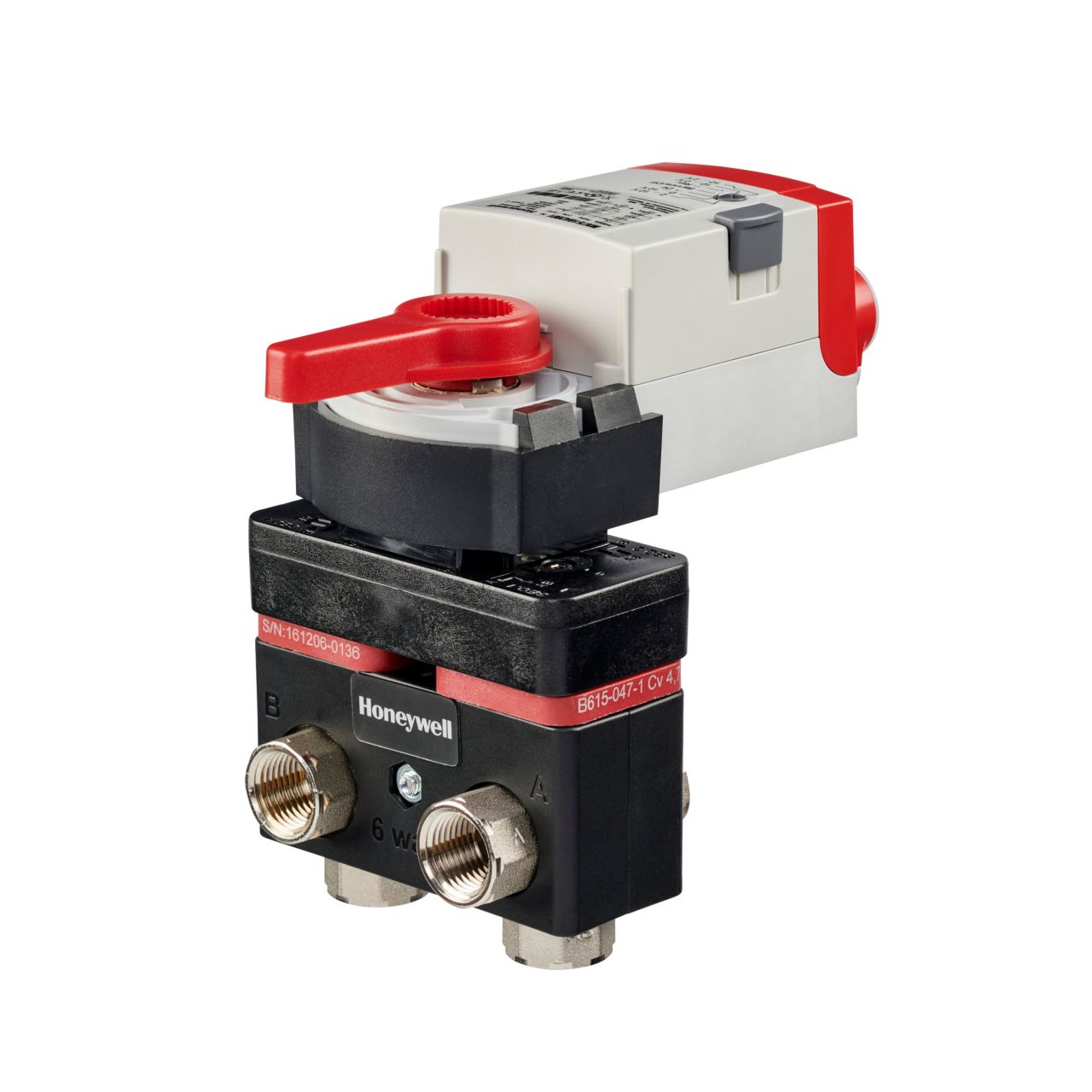

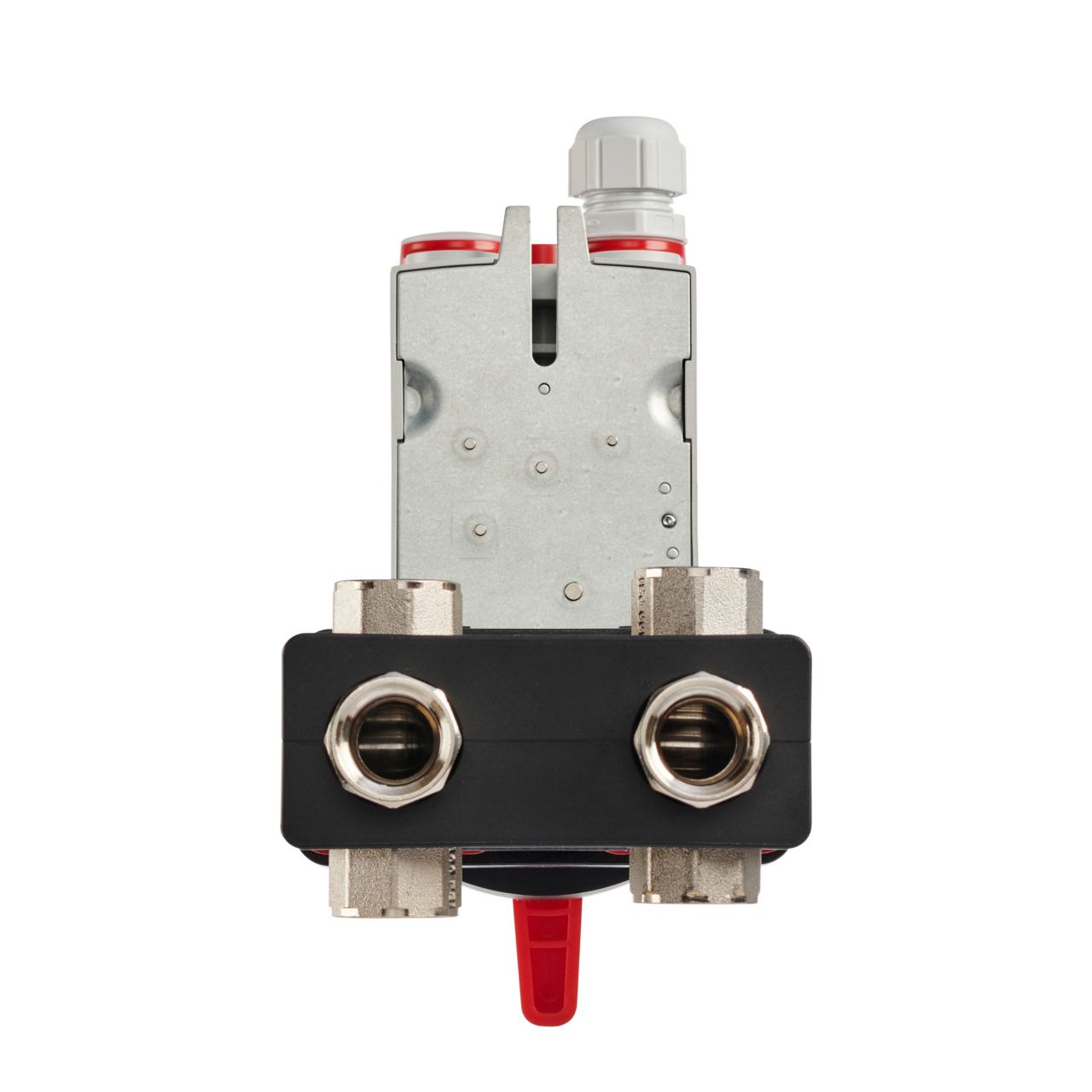

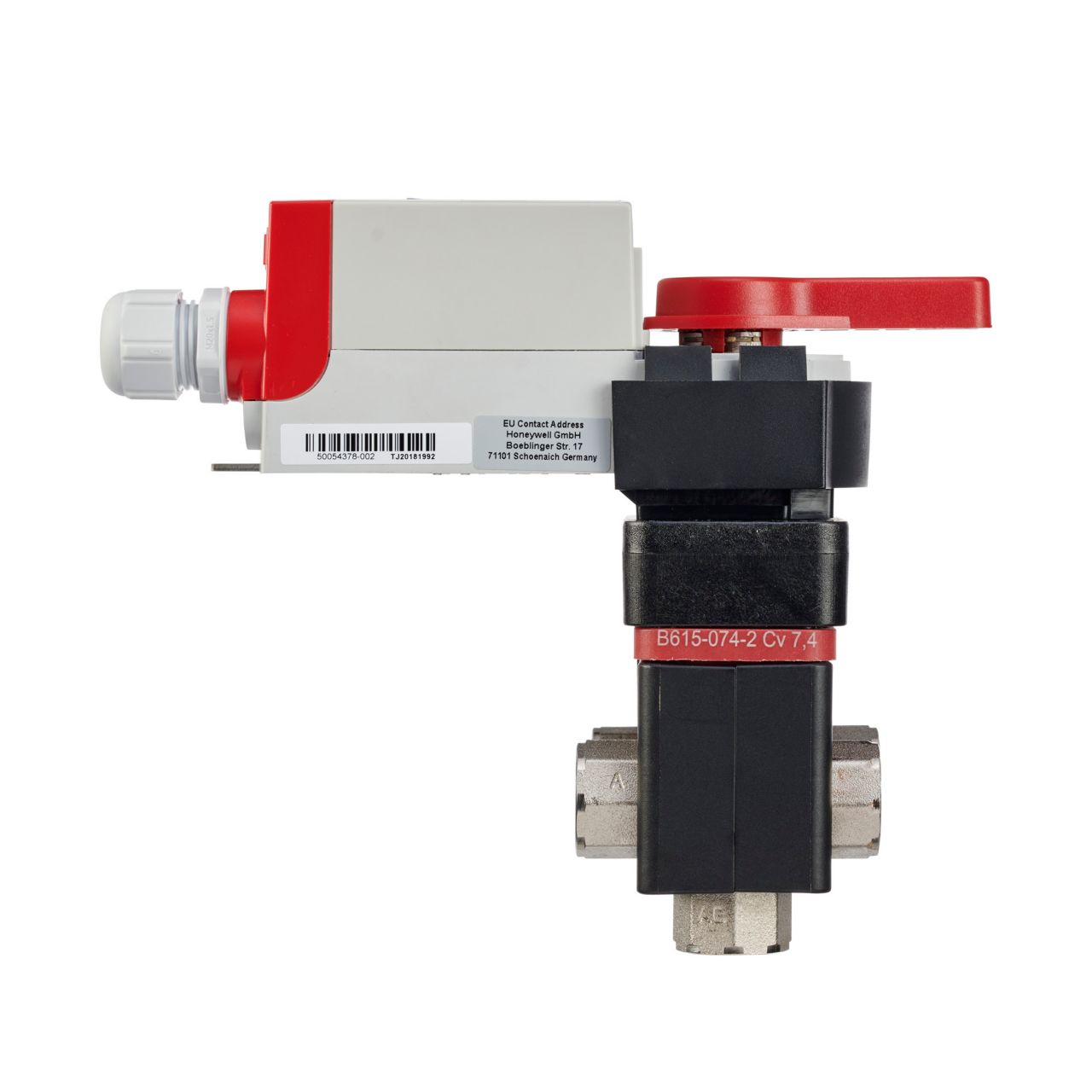

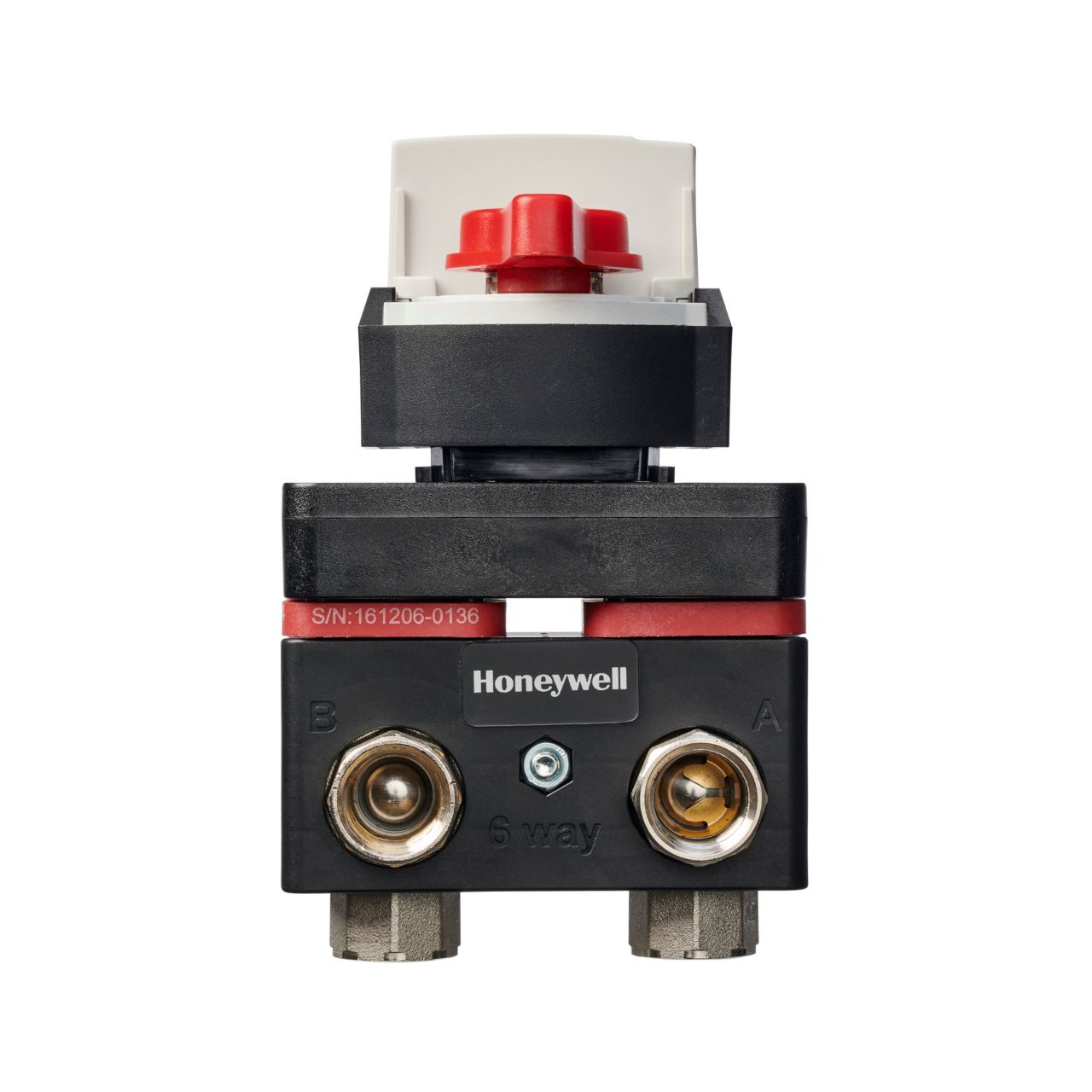

Honeywell VB6A019+003+AL VB6 6-Way Control Valve

Product Description

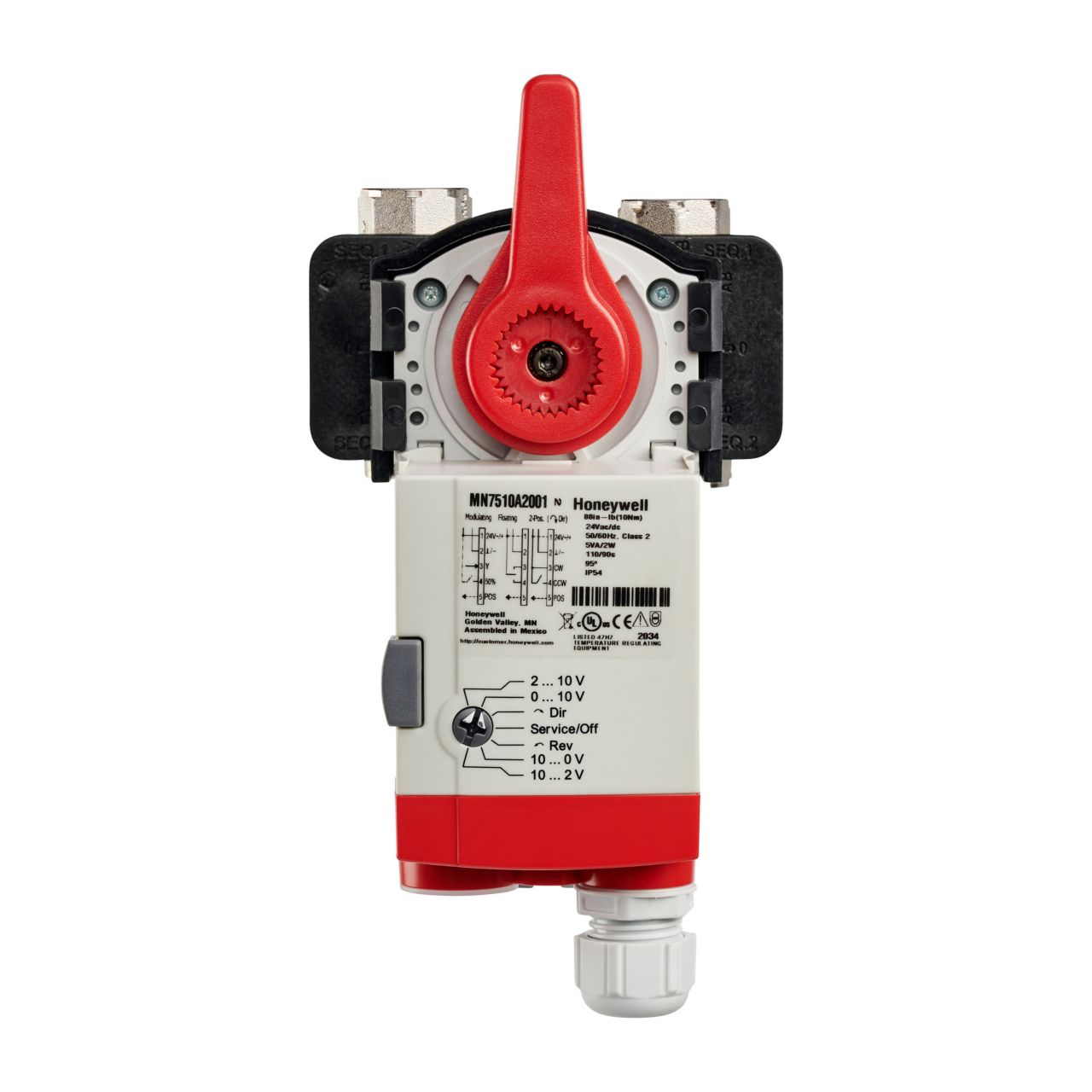

The Honeywell VB6A019+003+AL is a six-way control valve suitable for heating, cooling, and process control. It has a port size of one half inch and connects a two-pipe heat exchanger to four-pipe systems. This valve operates with a twenty-four volt AC/DC motor. It is made of brass, and the valve seat is crafted from EPDM. The modulating actuator MN7510A2001 is integrated into its design.

• One half inch port size
• Cv rating of 1.9/0.3
• Operates with a twenty-four volt AC/DC motor

Product Highlights

This valve is effective in various heating and cooling applications, ensuring precise control of fluid flow for HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A019+003+AL
• Model: VB6VALVE
• Product Category: 6-Way Valves
• Port Size: One half inch
• Power Consumption: 6W
• Input Voltage: 24V AC/DC
