Honeywell VB6A012+030+AL 6-Way Control Valve and Actuator

Product Description

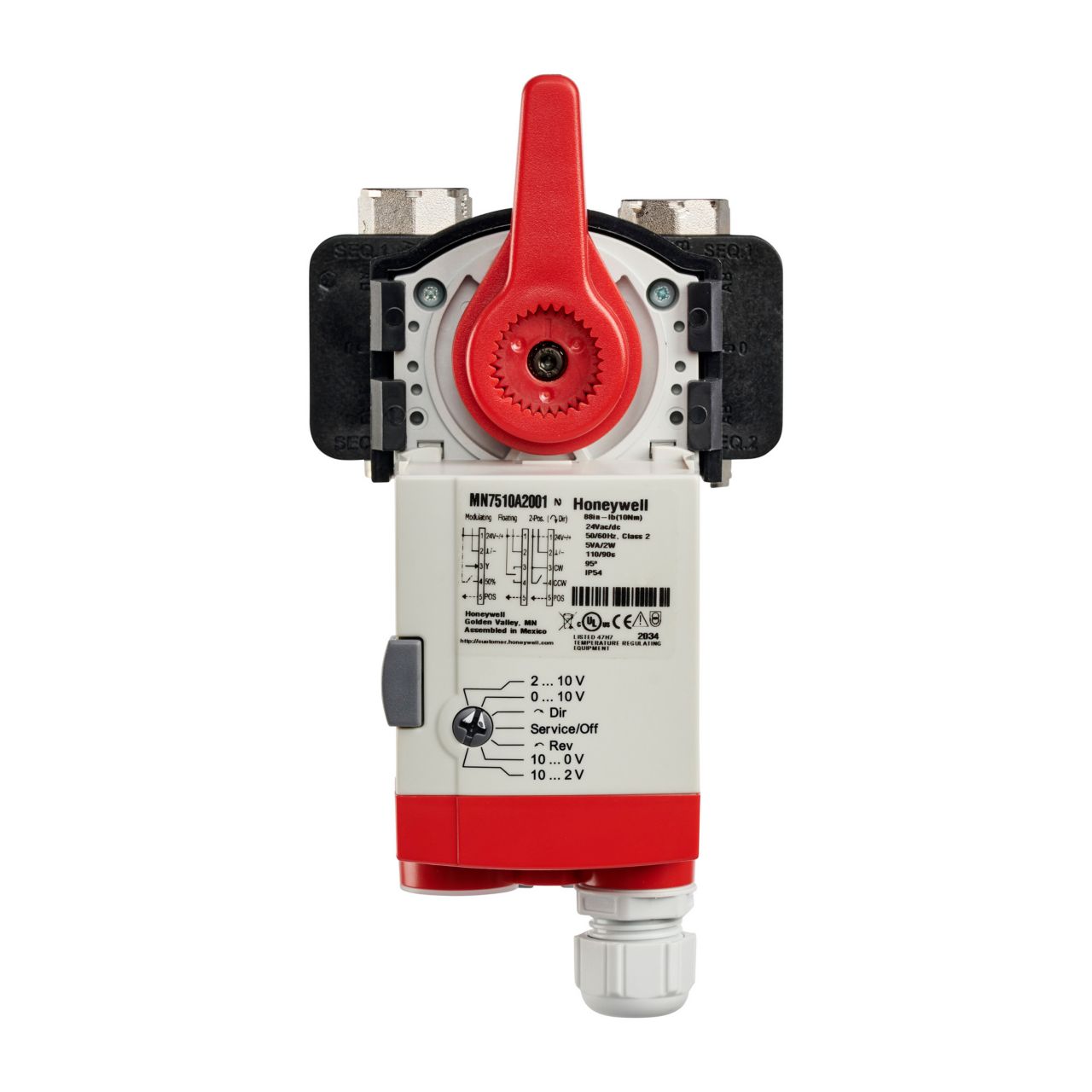

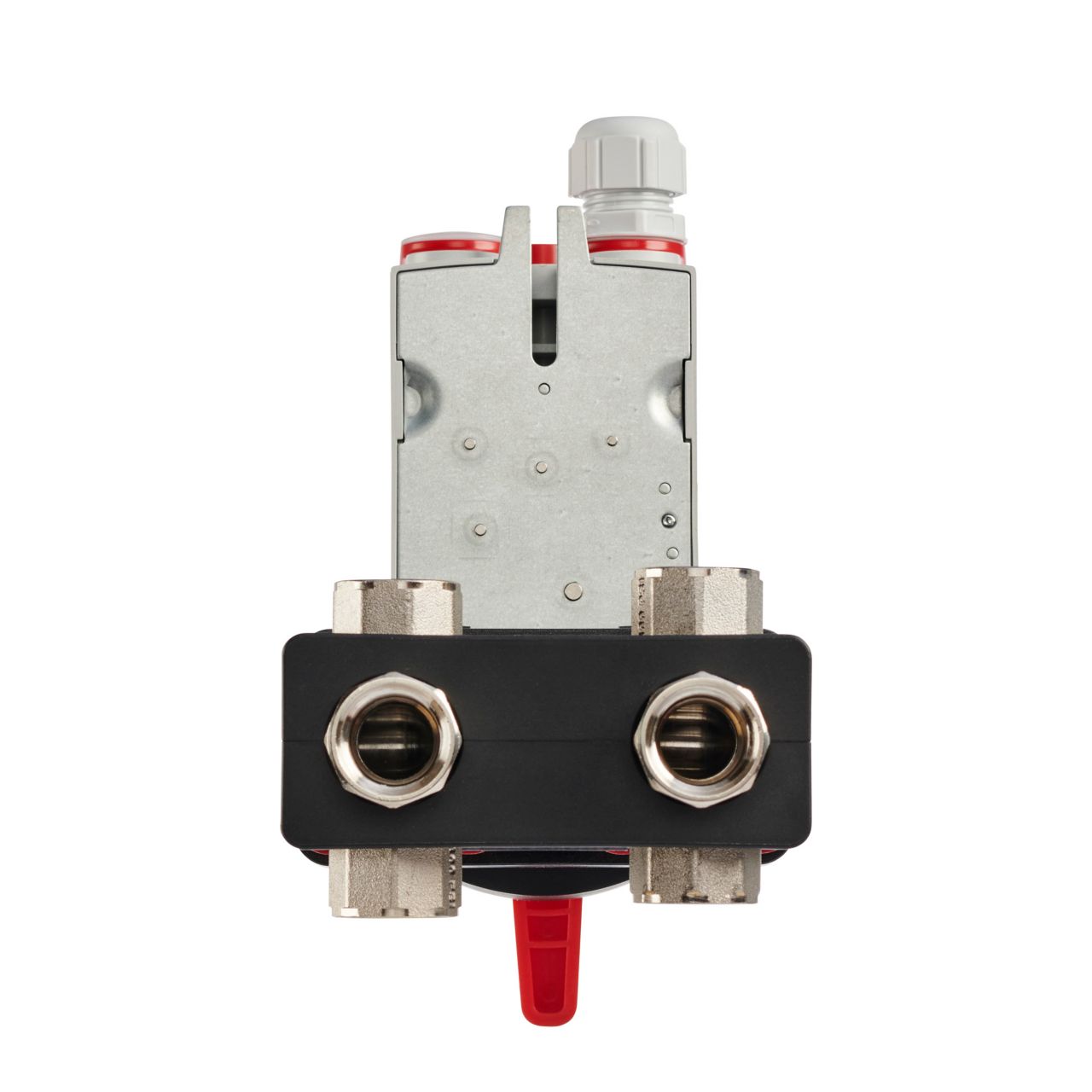

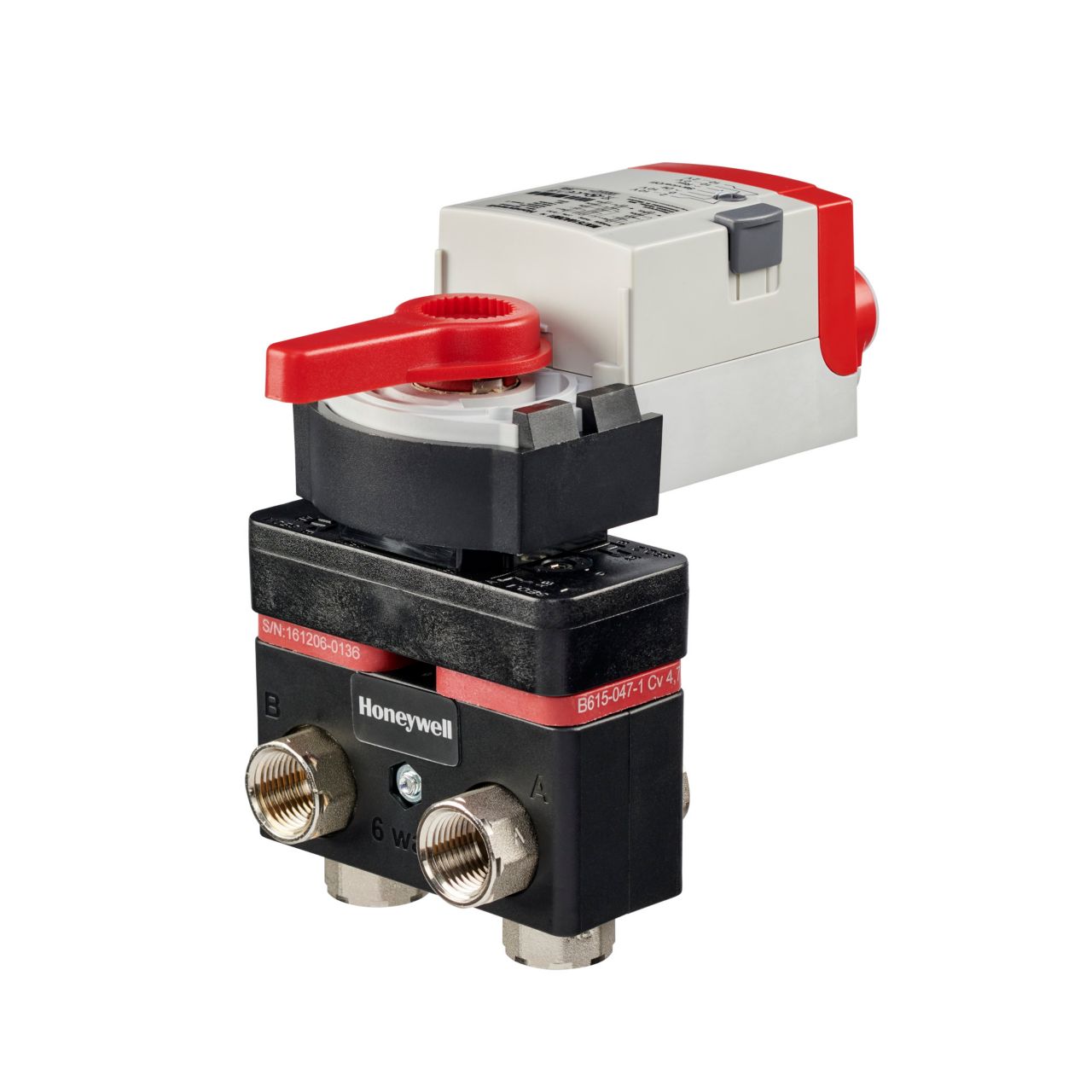

The Honeywell VB6A012+030+AL is a six-way control valve designed for four-pipe systems. It combines change-over and control valve functions that utilize a single modulating actuator. The two mechanically connected balls rotate together to open supply and return ports on one control sequence while keeping the other closed. This design prevents mixing between different flows. The valve comes equipped with an MN7510A2001 modulating actuator.

• Valve size: half-inch
• Sequence 1 Cv: 1.2
• Sequence 2 Cv: 3

Product Highlights

This valve is essential for managing complex fluid dynamics in HVAC applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6A012+030+AL

Technical Specifications

• Brand: Honeywell
• Condition: New
• Unit of Measurement: EA (Each)
• Production Status: Active
• Model: VB6VALVE
• Product Category: 6-Way Valves
• Product Model: VB6A012+030+AL
