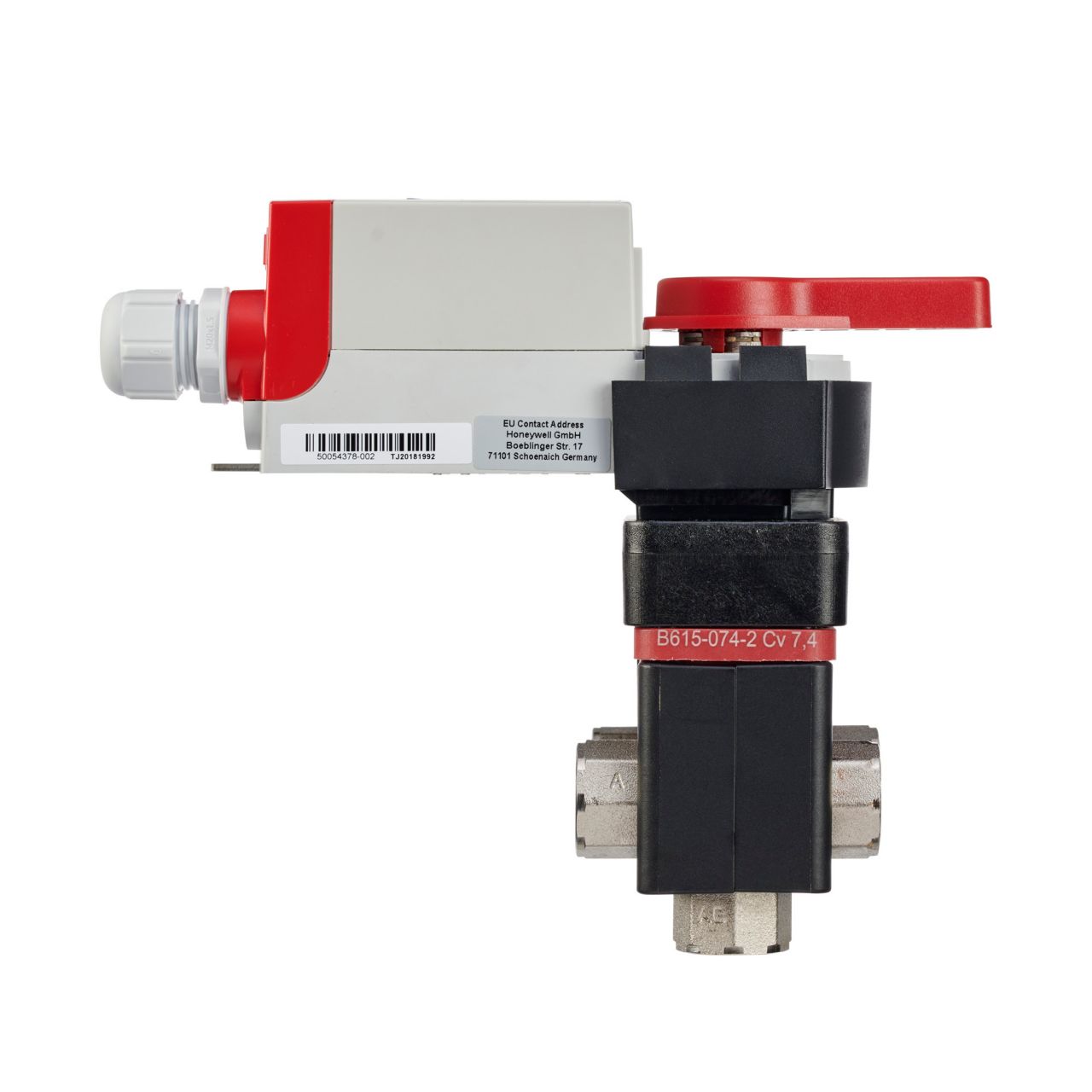

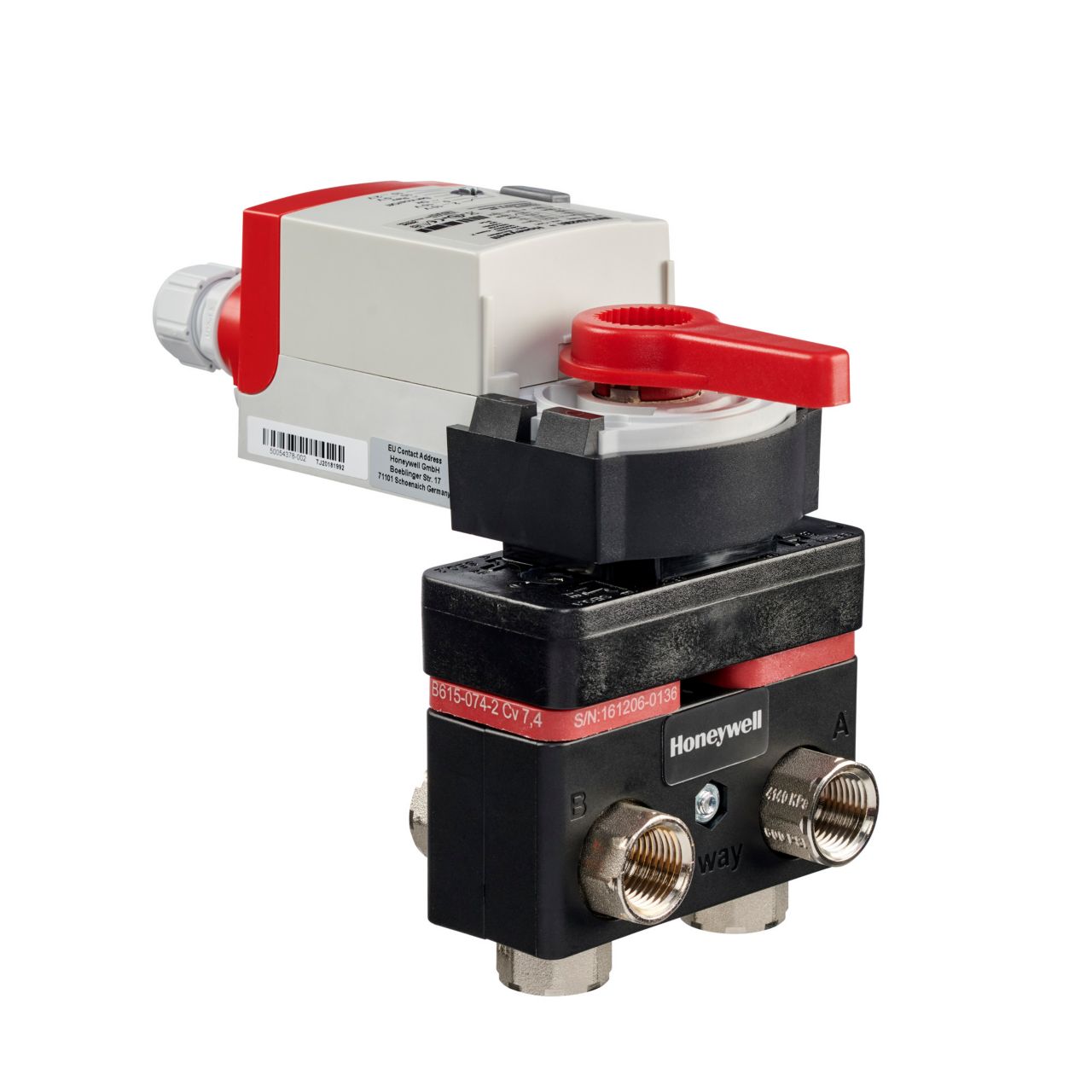

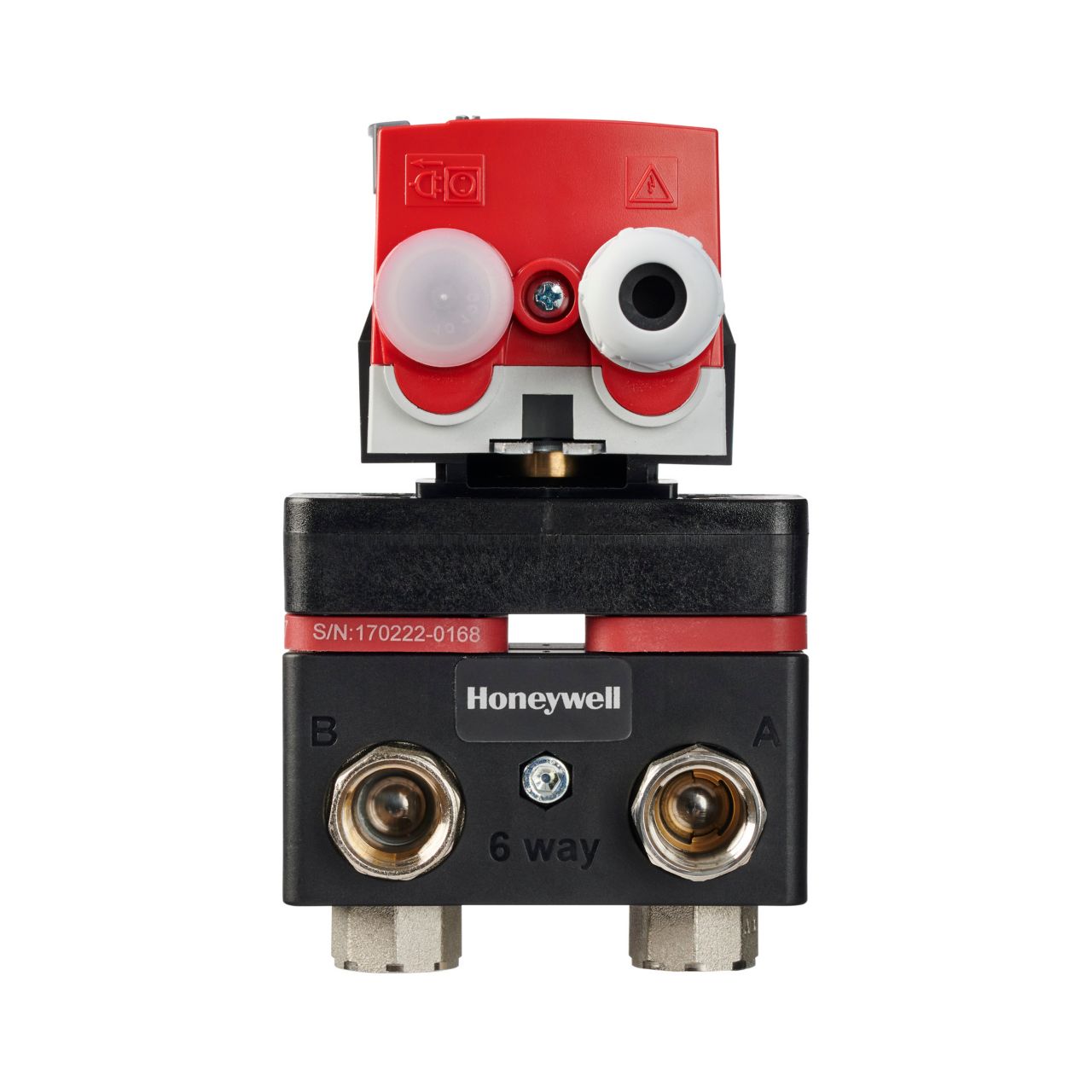

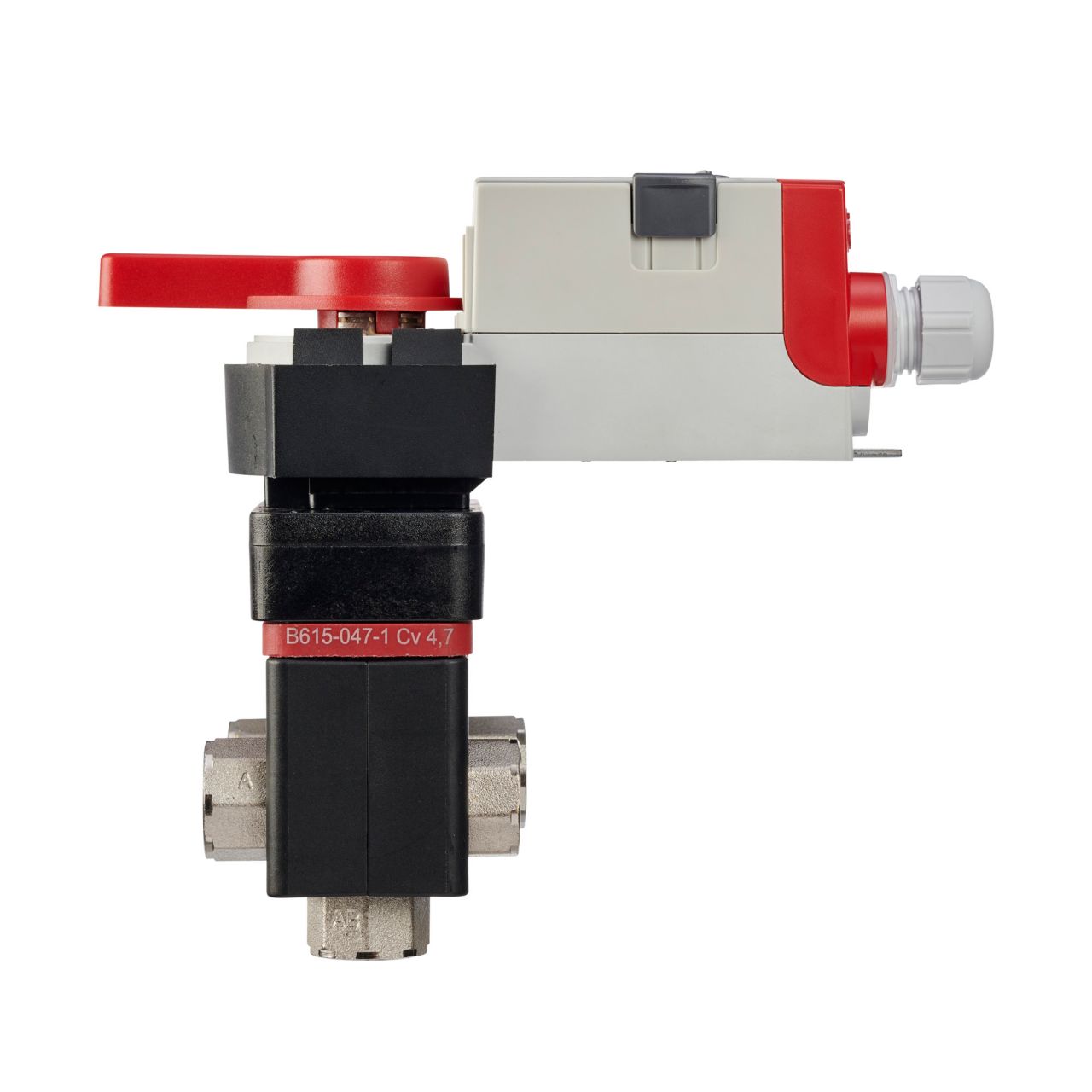

HONEYWELL VB6A012+005+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6A012+005+AL is a six-way control valve assembly. It is suitable for closed loop systems and integrates both change-over and control valve functions through a single modulating actuator. This valve is constructed with a nickel-plated forged brass body, and includes a stainless steel ball and stem. It connects a single two-pipe heat exchanger to four-pipe systems.

• Valve size is one half inch.
• Supports two control sequences with Cv ratings of 1.2 and 0.46.
• Operates with water and glycol (60%) services.

Product Highlights

This valve prevents mixing between flows and is ideal for controlling either chilled or hot water.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6A012+005+AL

Technical Specifications

• Valve Size: 1/2 inch
• Sequence 1 Cv: 1.2
• Sequence 2 Cv: 0.46

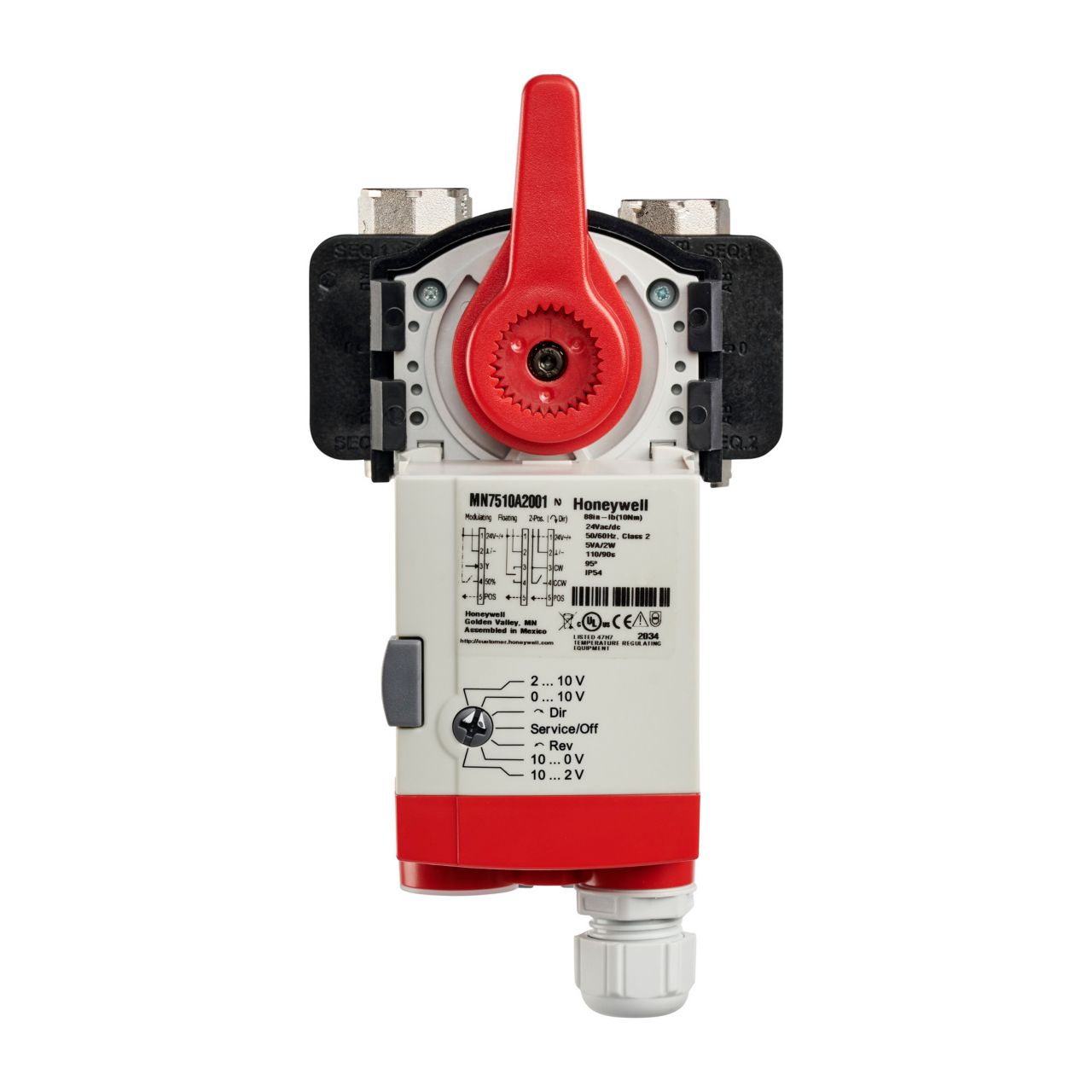

• Actuator: MN7510A2001 Modulating Actuator
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 °F to 212 °F (-18 °C to 100 °C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 °F to 140 °F (-20 °C to 60 °C)
• Electrical Connections: Field Wiring 14-22 AWG to screw terminals
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter
