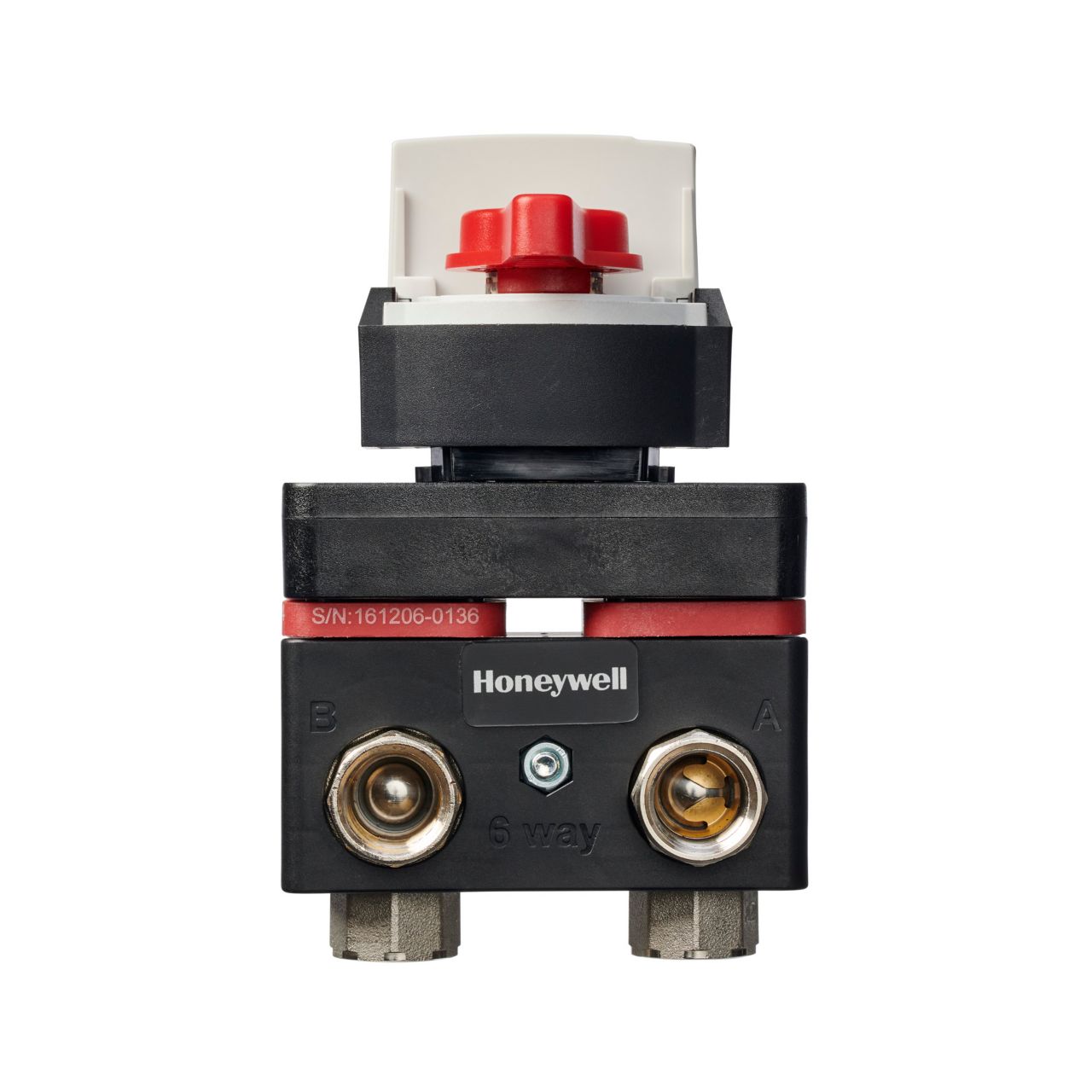

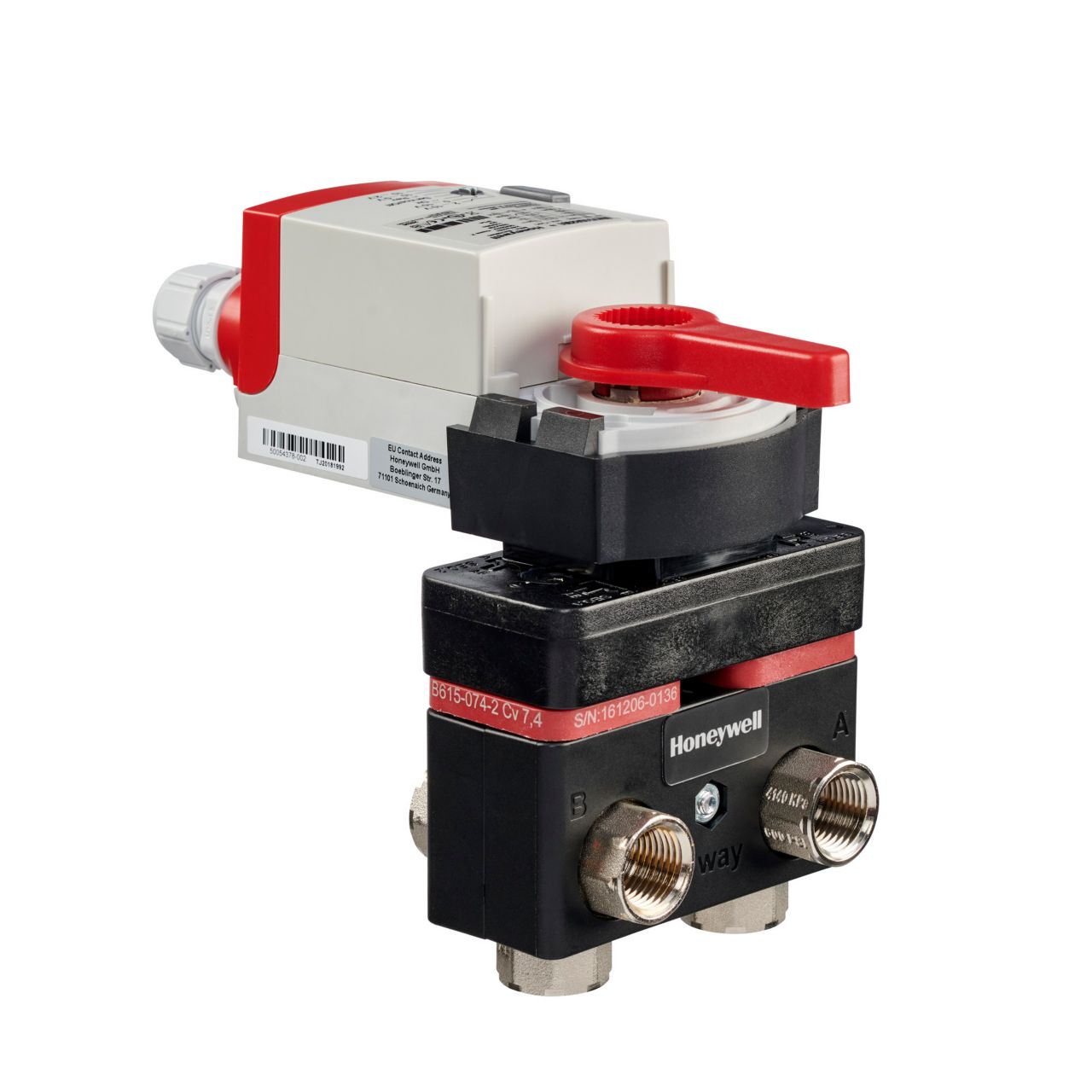

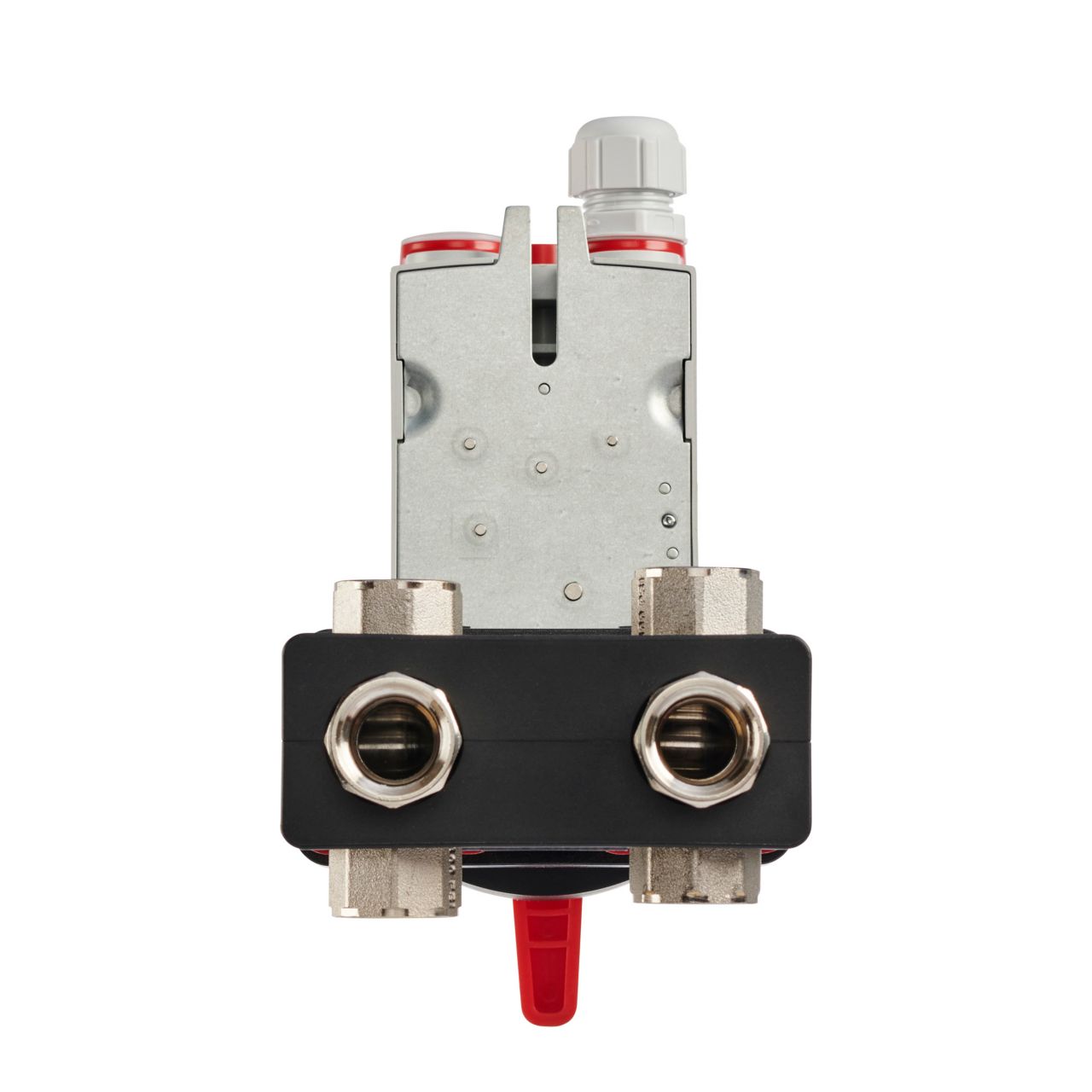

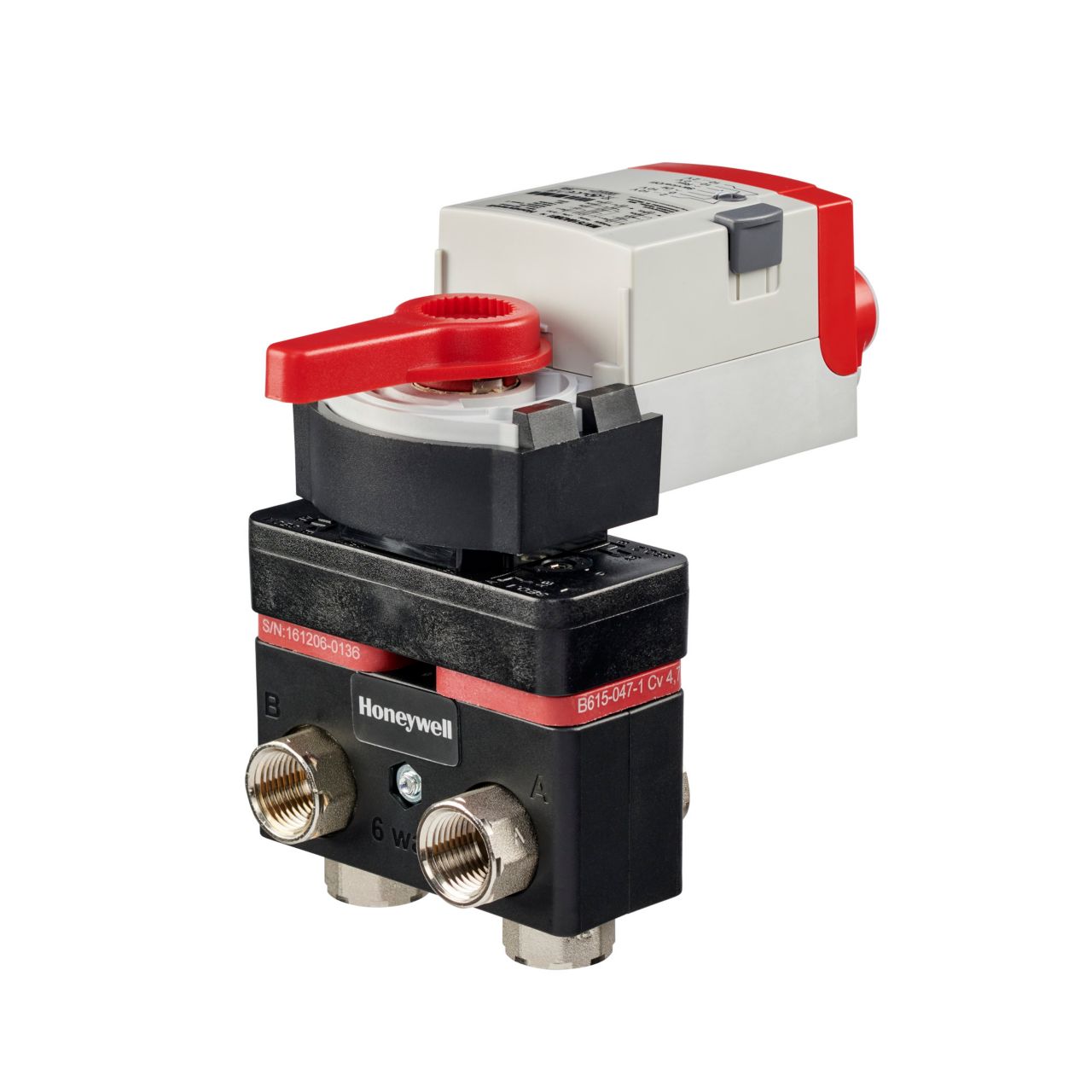

HONEYWELL VB6A012+003+AL VB6 6-Way Control Valve

Product Description

The Honeywell VB6A012+003+AL is a reliable 6-way control valve specifically made for 4-pipe systems. It combines change-over and control valve features with a single modulating actuator. Two mechanically linked balls work together to effectively open and close supply and return ports, which helps in managing heating and cooling control without flow mixing. This valve is commonly used for controlling chilled or hot water in closed-loop systems.

• Nickel-plated brass body for durability.
• Stainless steel balls and stems for enhanced strength.
• Compatible with MN7510A2001 modulating actuator.

Product Highlights

Ideal for HVAC professionals needing efficient control for fluid systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VB6A012+003+AL

Technical Specifications

• Product Category: 6-Way Valves
• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
