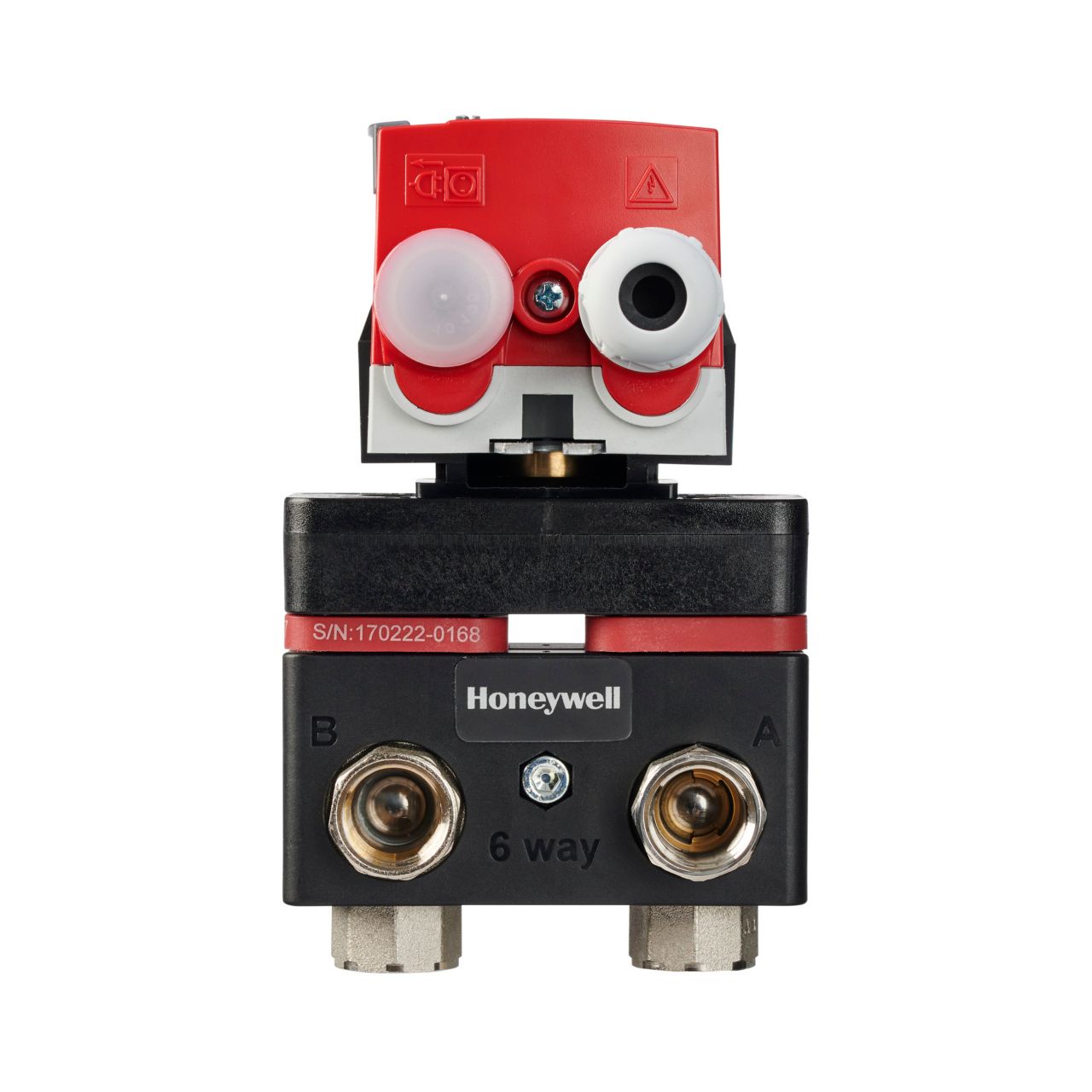

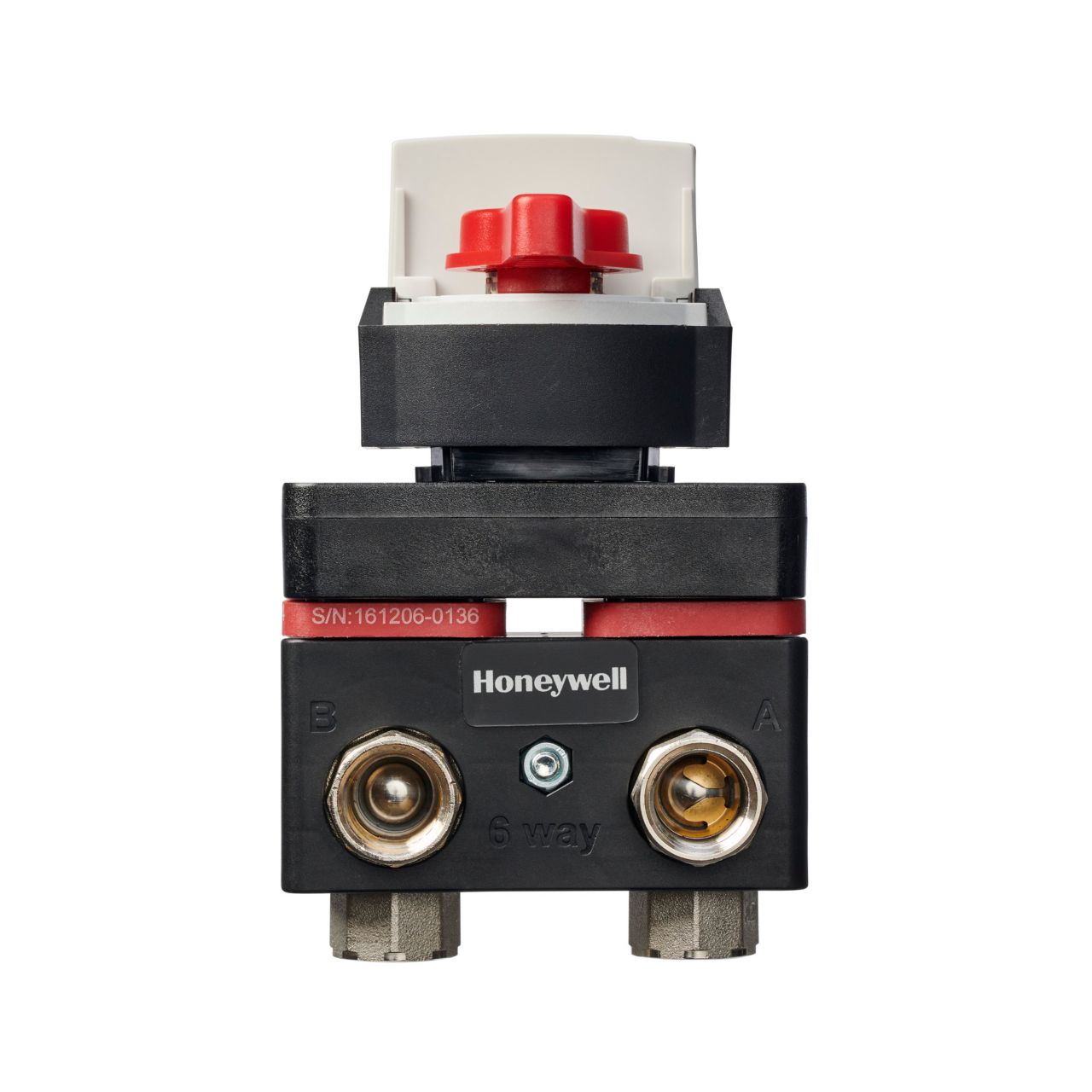

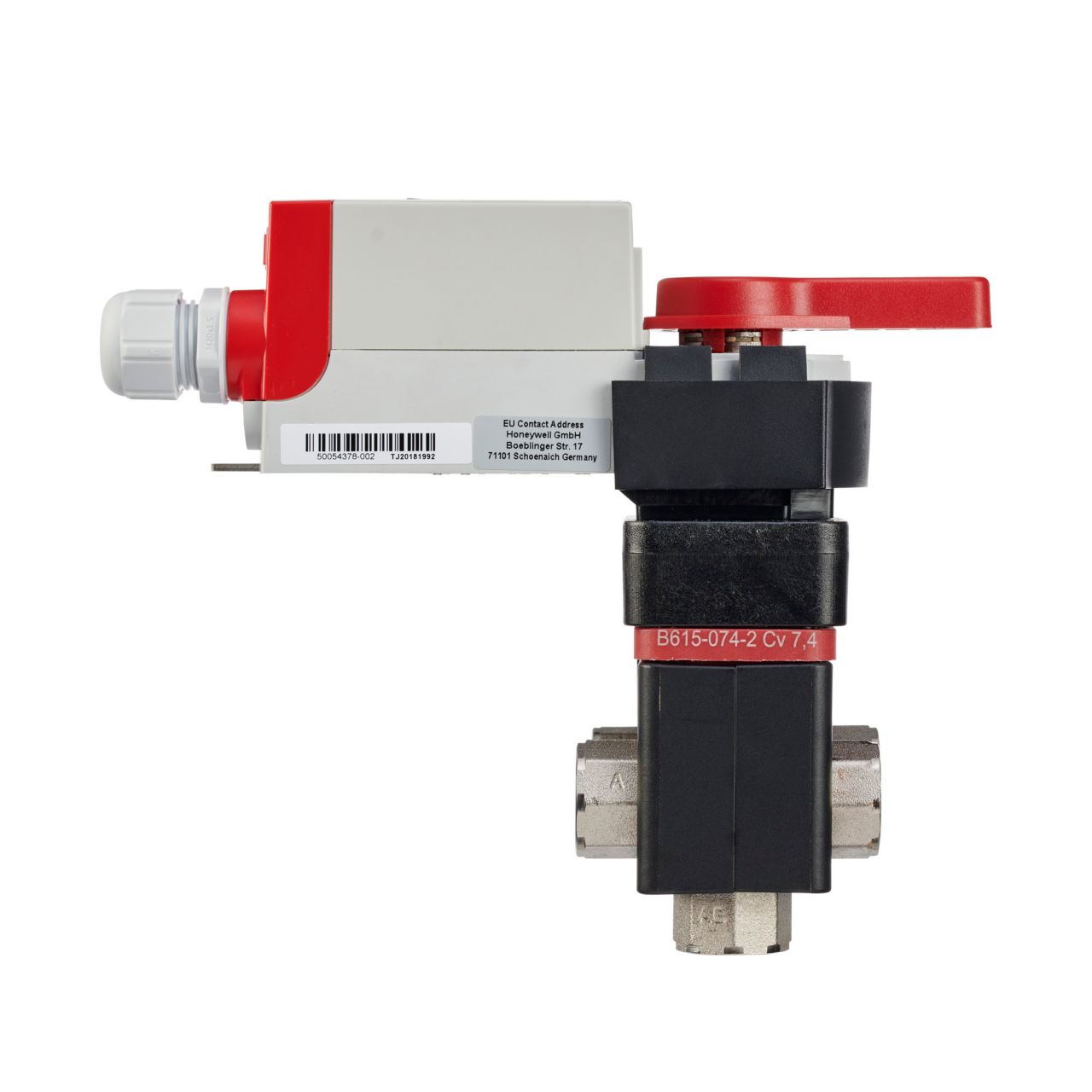

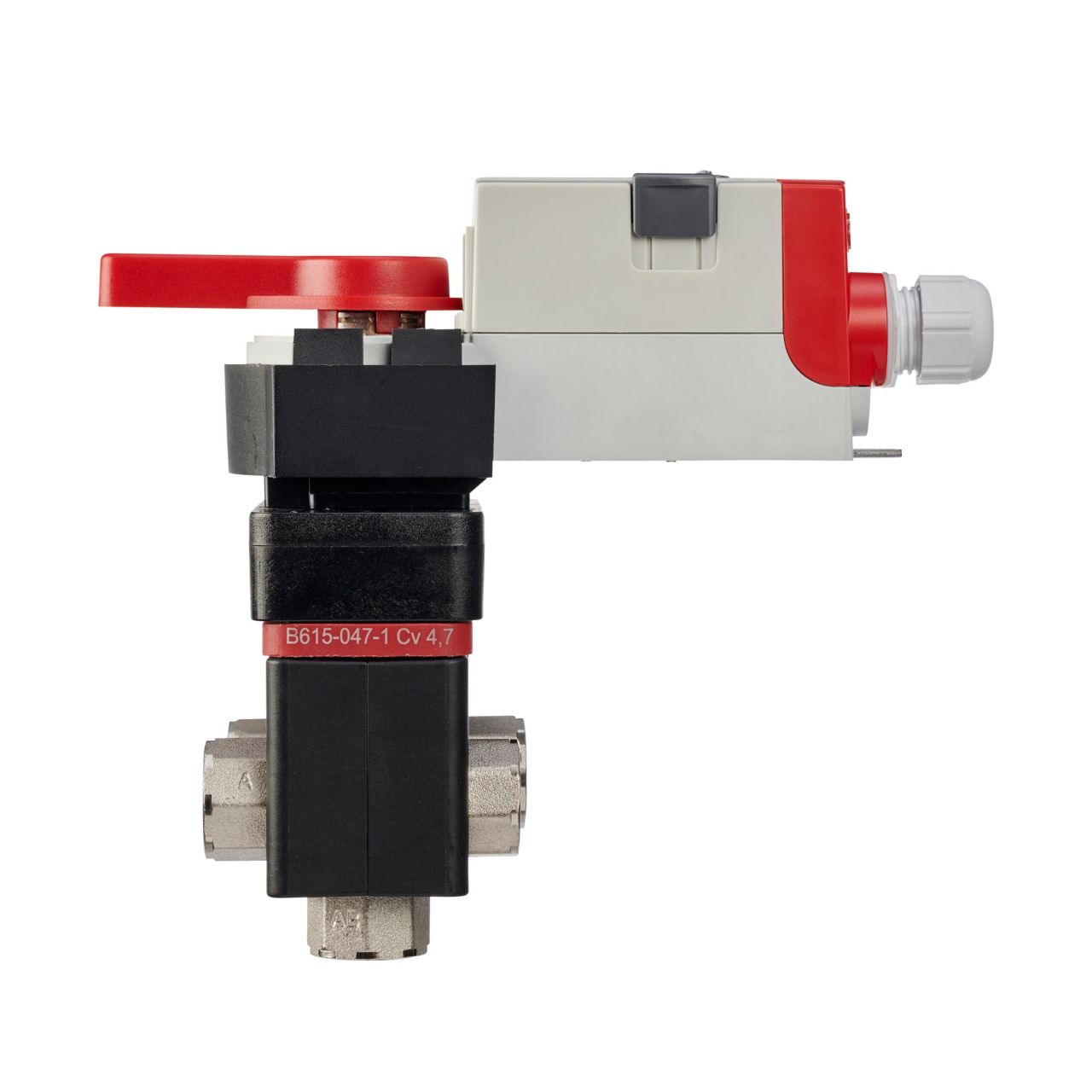

HONEYWELL VB6A008+008+AL VB6 6-Way Control Valve with Modulating Actuator

Product Description

The Honeywell VB6A008+008+AL is a six-way control valve for closed loop systems. It combines change-over and control functions with a modulating actuator. This valve features two connected balls that open supply and return ports simultaneously while keeping others closed. It is made from nickel-plated forged brass and includes a stainless steel ball and stem. This valve is ideal for applications using a single heat exchanger in four-pipe systems for managing chilled or hot water.

• Features a sequence one Cv of 0.8 and sequence two Cv of 0.8
• Includes a direct coupled actuator with a torque of 88 in-lb
• Designed for use with water and Glycol at a maximum concentration of 60%

Product Highlights

Reliable control of water and Glycol systems in HVAC setups

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A008+008+AL
• Model: VB6VALVE
• Product Category: 6-Way Valves
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter
