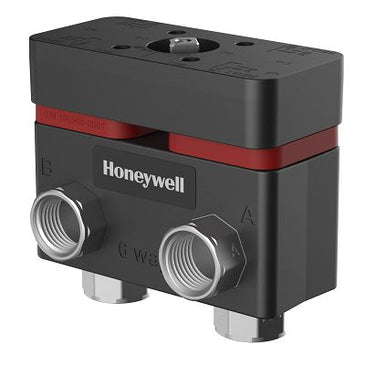

HONEYWELL VB6A003+047+AL VB6 6-Way Control Valve Assembly

Product Description

The Honeywell VB6A003+047+AL is a six-way control valve assembly used in heating and cooling systems with four pipes. This valve is made of nickel-plated forged brass and includes a stainless steel ball and stem. It connects with a half-inch NPT fitting and has a Cv rating of 0.3 for sequence one and 4.7 for sequence two. The actuator is directly coupled and operates at 24 VAC with a power rating of 5 VA. It accommodates control signals including floating, 2-10 VDC, and 4-20 mA. The assembly features two SPDT auxiliary switches.

• Can be used for water and glycol applications (up to sixty percent).
• Equal percentage flow characteristic is supported.
• Operates in temperatures ranging from negative five degrees Fahrenheit to one hundred forty degrees Fahrenheit.

Product Highlights

Product Information

Standard Information

• Brand: Honeywell
• MPN: VB6A003+047+AL

Technical Specifications

• Product Category: 6-Way Valves
• Material: Brass
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter
