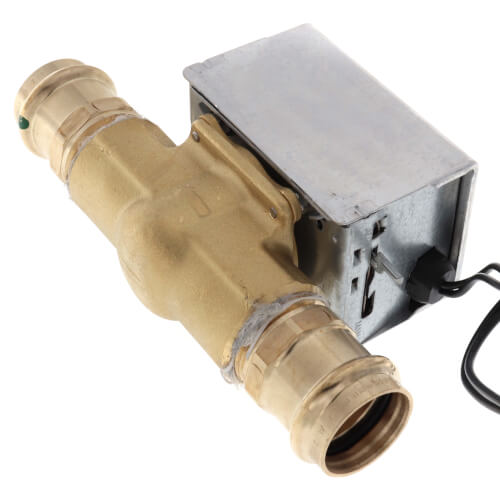

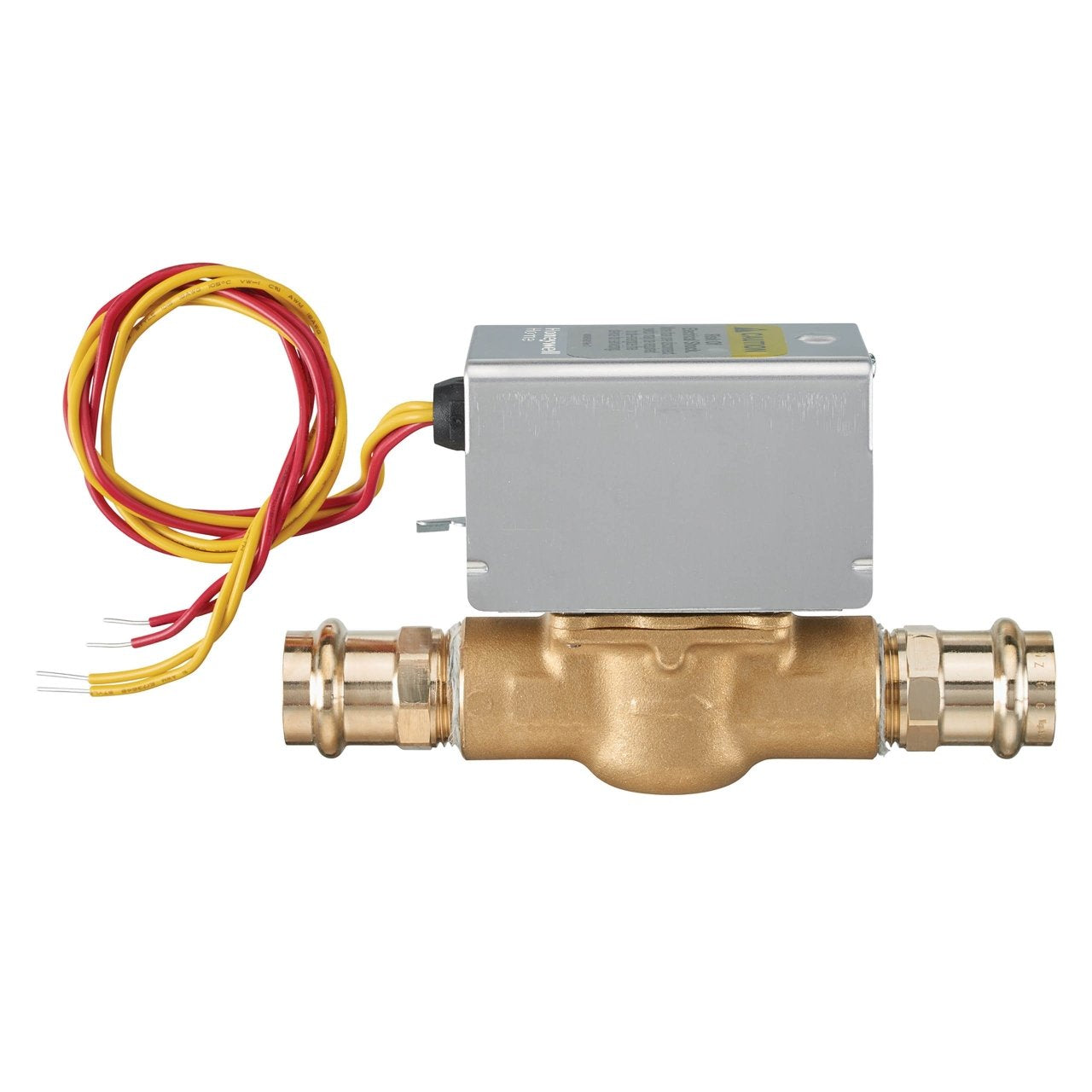

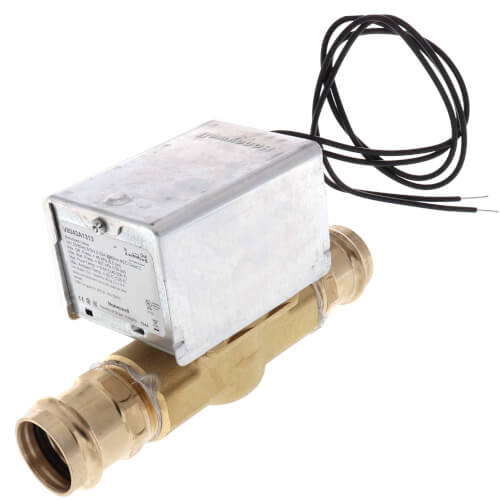

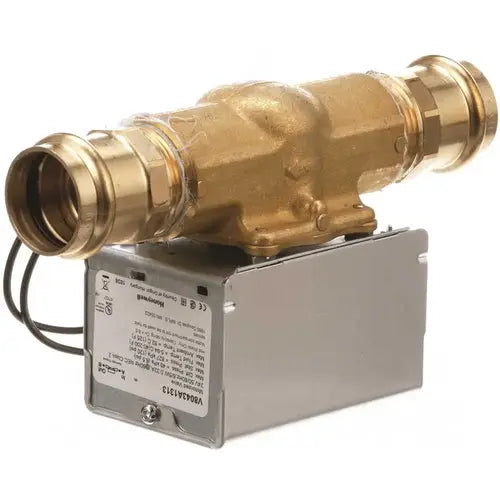

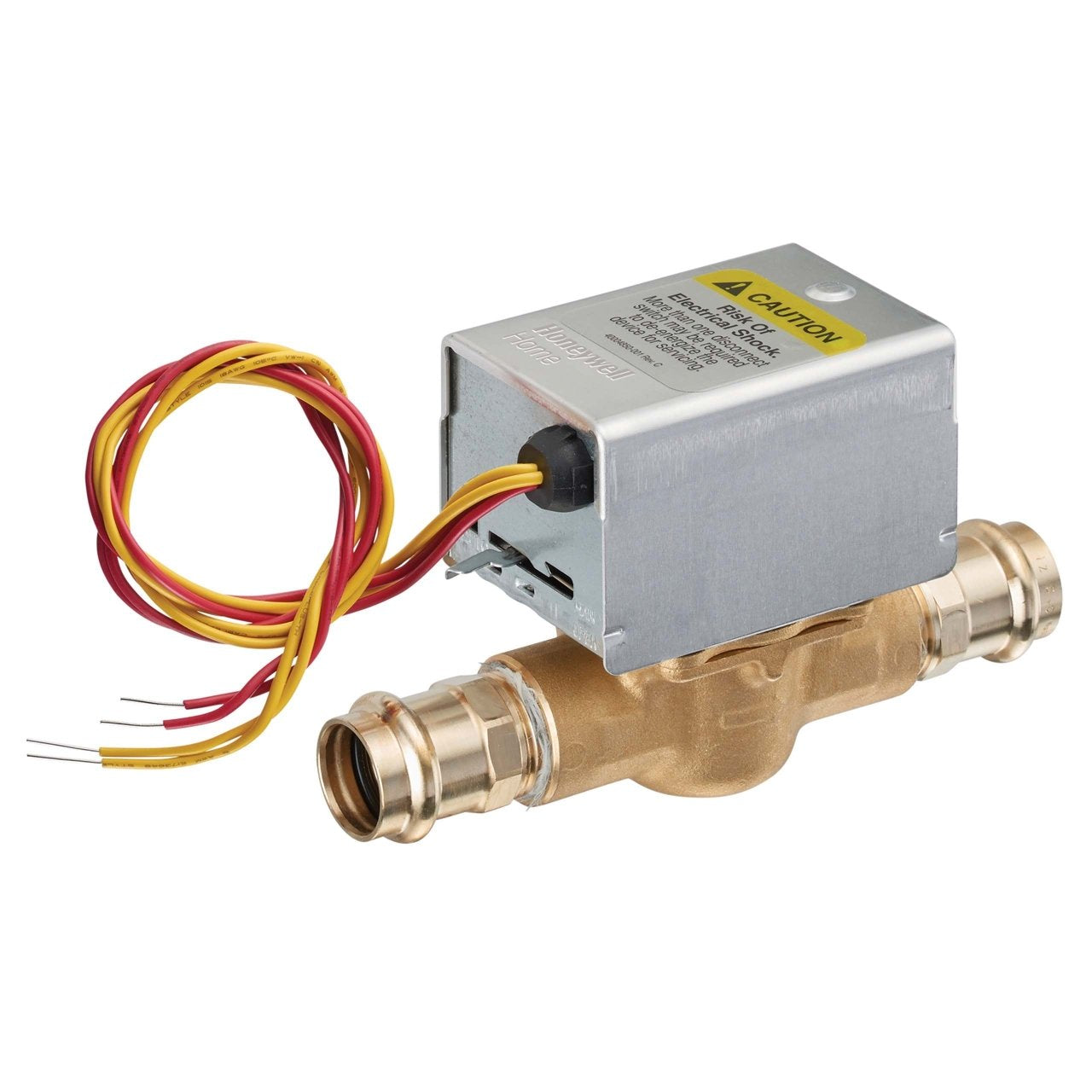

Honeywell V8043A1313/U 1-Inch Pro Press Zone Valve

Product Description

The Honeywell V8043A1313/U is a reliable zone valve designed to control water flow in hydronic systems. This valve integrates an actuator motor with the valve assembly to manage the flow of both heated and cooled water efficiently. It maintains two-position control for a straightforward operation in various applications including fan coil units.

• Features a manual opener for use during power failures.
• Utilizes a Pro Press connection type for secure installation.
• Includes an eighteen-inch lead wire for easy setup.

Product Highlights

This valve is ideal for zoning applications, providing effective control and flexibility in hydronic systems.

Product Information

Standard Information

• Brand: Honeywell Home
• Manufacturer: Honeywell

Technical Specifications

• Manufacturer Part Number: V8043A1313/U
• Application: Zoning
• Connection Type: Pro Press
• Size: 1 inch
• Flow Coefficient: 8.5 Cv | 8.5 Kvs
• Input Voltage: 24V
• Temperature Range: 40°F - 200°F
• Static Pressure: 120 psi
• Actuator Opening Time: 15 seconds
• Wiring: 18 Leads
• Valve Body Material: Brass
• Valve Stem Material: Stainless Steel
• Approvals and Standards: UL Listed, CSA Certified
