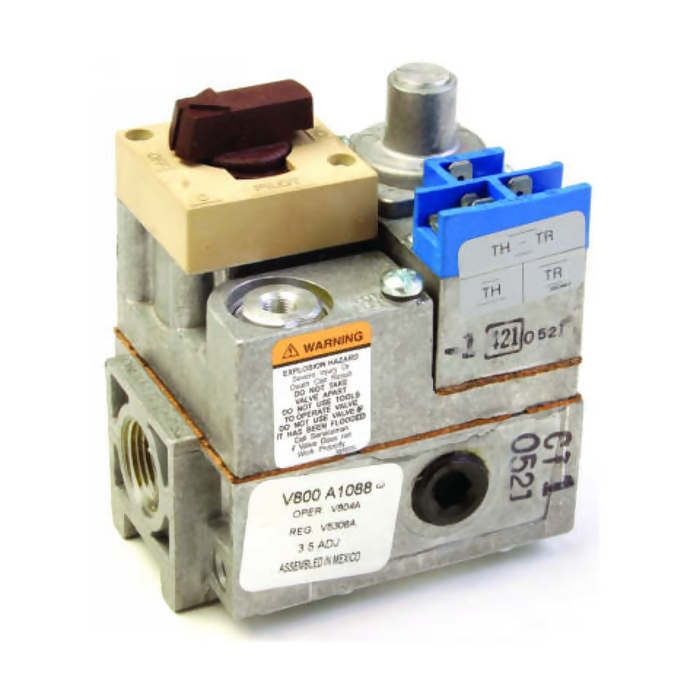

Honeywell V800A1088/U Low Voltage Combination Gas Control

Product Description

The Honeywell V800A1088/U is a low voltage combination gas control designed for efficient operation. This unit features a standard opening with a three-quarters inch by three-quarters inch NPT connection. It is ideal for natural gas applications, operating at three point five inches water column. The compression fitting allows for one-quarter inch OD tubing for easy installation.

• Includes a pilot flow adjustment screw.
• Simple installation, adjustment, and servicing.
• Complete safety shut-off on pilot flame failure.

Product Highlights

This gas control is suitable for HVAC professionals. The accessible top layout allows easy adjustments and connections, enhancing serviceability.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: V800A1088/U
• Connection Type: NPT

Technical Specifications

• Size: 3/4 in x 3/4 in
• Pressure Rating: 3.5 in. w.c.
• Gas Type: Natural Gas
• Fitting Type: Compression for 1/4 in. OD Tubing
