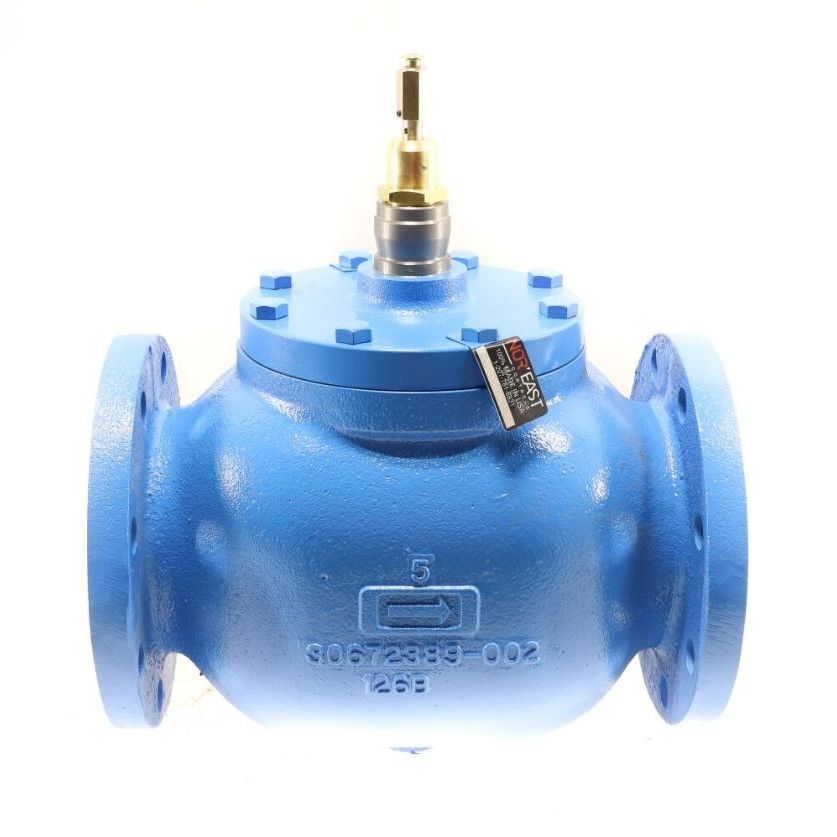

Honeywell V5011A1882 5-Inch Flanged Globe Valve 250 CV

Product Description

The Honeywell V5011A1882 is a 5-inch flanged globe valve designed for modulating and two-position steam control, making it suitable for various industrial applications. Its robust construction and reliable performance ensure long-lasting operation.

• 5-inch flange size
• 1.5-inch travel
• 250 CV flow coefficient

Product Highlights

This valve is direct-acting and ideal for controlling hot or chilled water and glycol solutions. It supports both flanged and ductile iron mounting for stable and durable performance. The V5011A1882 valve is built to handle up to 150 psi at 240 °F water or 15 psi steam, meeting industry standards for quality and safety.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5011A1882

Technical Specifications

• Valve Type: Globe Valve
• Body Pattern: Two-way
• Flow Characteristic: Equal Percentage
• Controlled Medium: Chilled or hot water with up to 50% Glycol, Low pressure steam
• Connection Type: Flanged
• Max Safe Operating Pressure: 150 psi at 240 °F water or 15 psi steam
• ANSI/ASME Rating: 125
• Maximum Differential for Quiet Water Service: 25 psid
• Static Pressure Rating: ANSI 125
• Ambient Temperature Rating: 40 °F to 250 °F
• Materials (Body): Cast Iron
• Materials (Seat): Bronze
• Materials (Stem): Stainless Steel
• Use With: Q5001/Modutrol IV Motor; MP953; ML6420,21A,25; ML7420/ML7421A/ML7425; ML6984/ML7984
• Item Weight: 148 lbs
