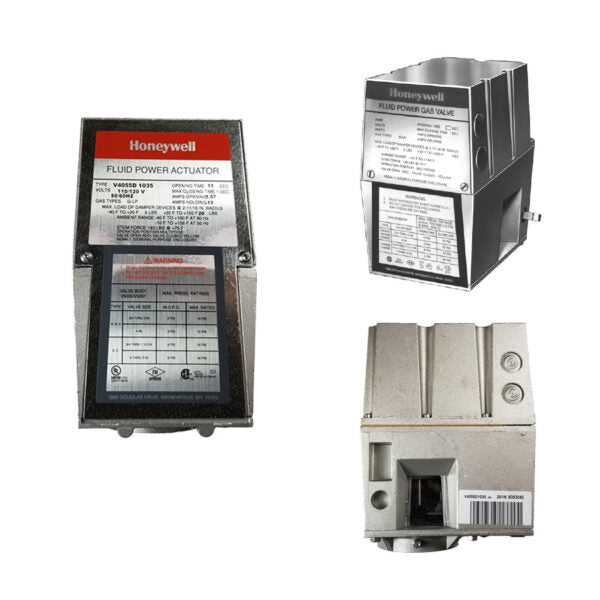

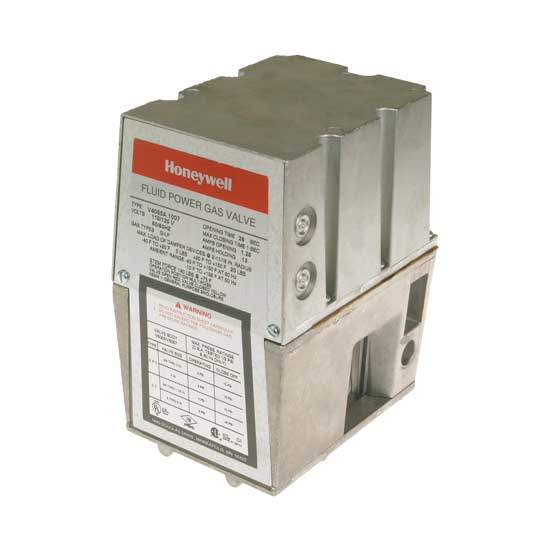

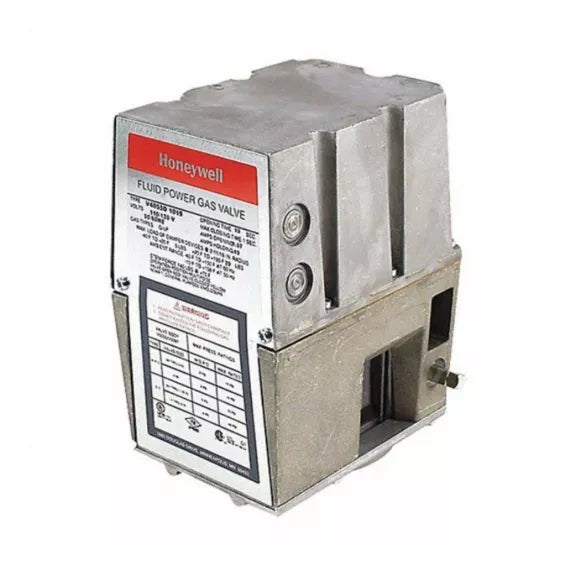

Honeywell V4055D1076 Fluid Power Gas Valve Actuator

Product Description

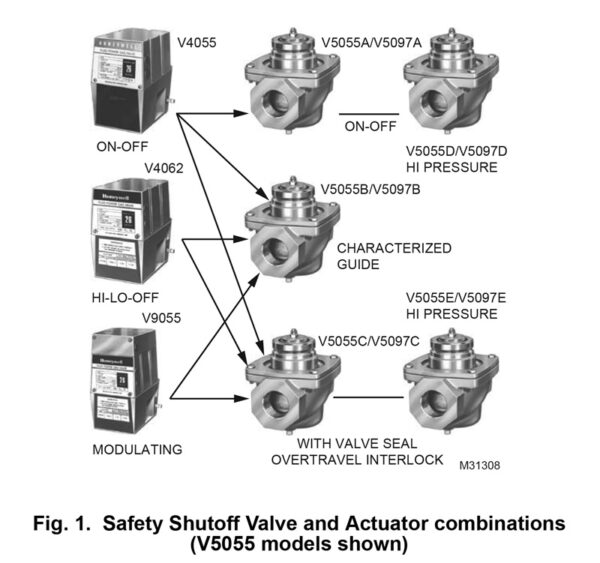

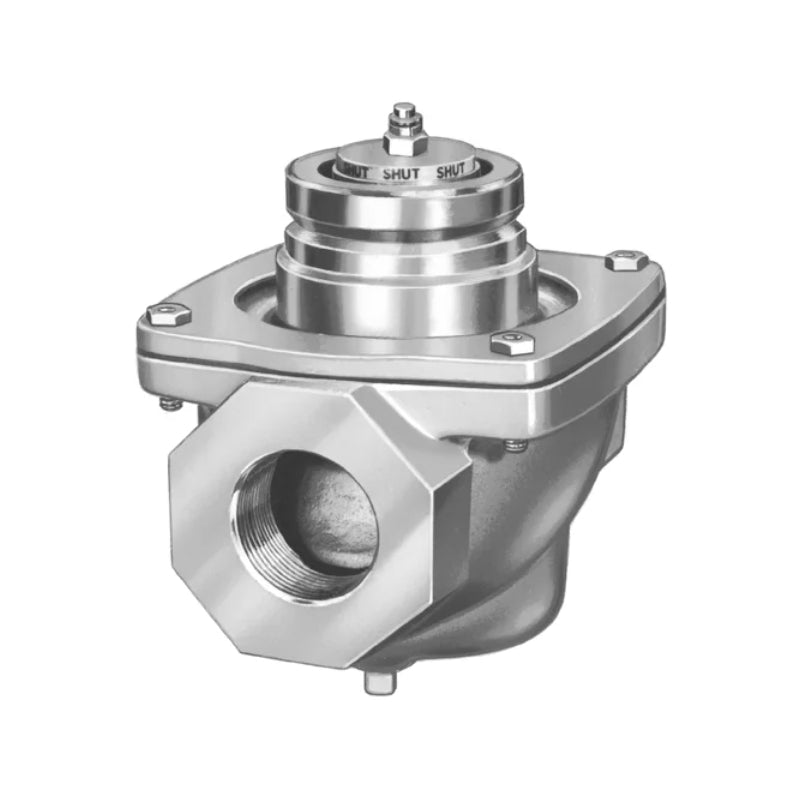

The Honeywell V4055D1076 is a fluid power actuator used for safety shut-off service. It works with Honeywell V5055 and V5097 gas valves to control gas flow in commercial and industrial burner systems.

• Fast opening time of 13 seconds at 60 Hz.
• Provides proof of closure functionality.
• Compatible with natural gas and LP gas.

Product Highlights

This actuator delivers on/off control and safety shut-off when paired with compatible Honeywell valves.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Name: Honeywell HTS

Technical Specifications

• Operating Temperature Range: -40 degrees F to +150 degrees F (-40 degrees C to +65 degrees C)
• Voltage: 120 VAC
• Maximum Operating Pressure: 15 PSI
• Pressure Rating: 5 PSI
• Auxiliary Switch: Normally Open (NO)
• Approvals: UL, CSA, FM
• Approvals, Underwriters Laboratories Inc.: Listed with V4055A, B, D, E, V4062
• Approvals, CSA: Certified General listed for USA and Canada
