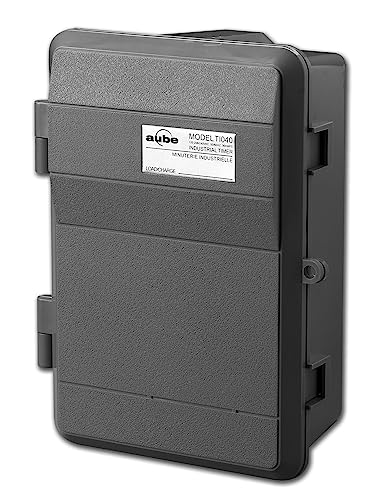

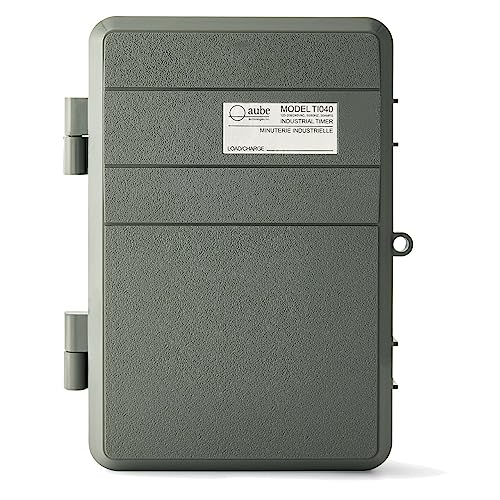

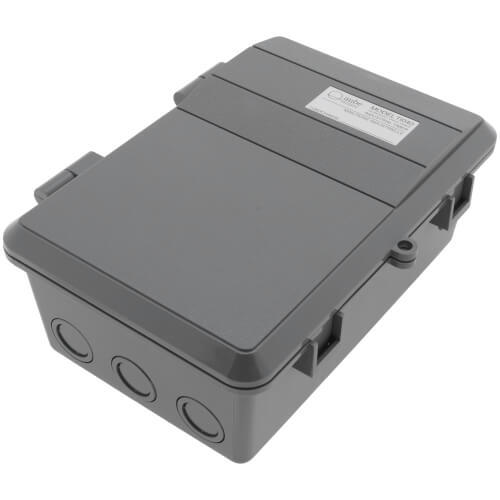

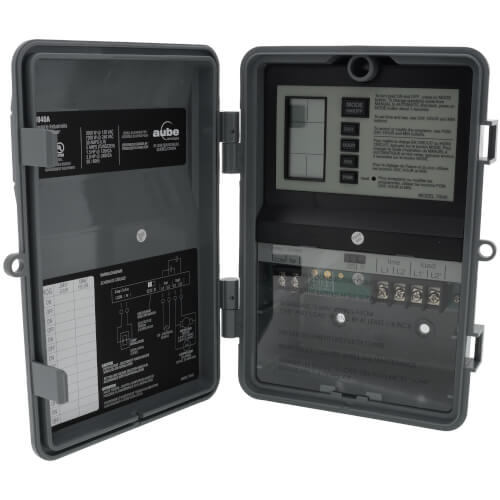

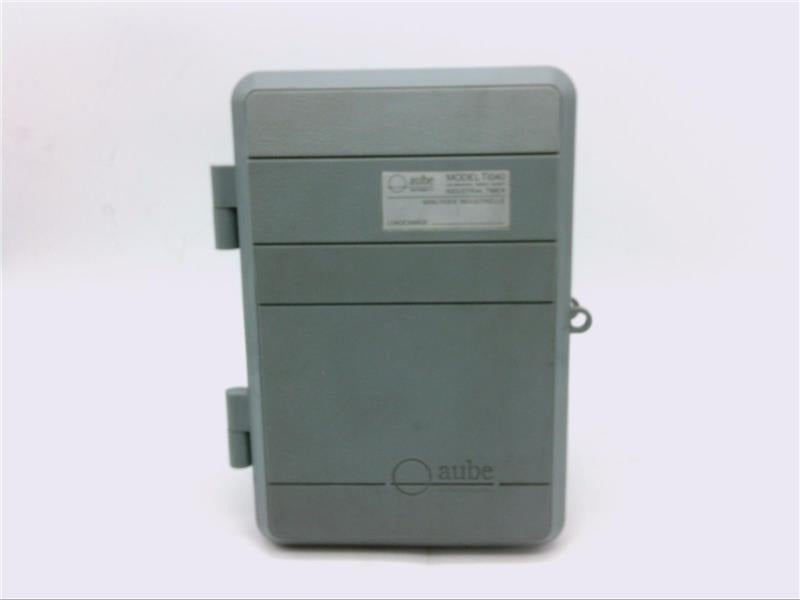

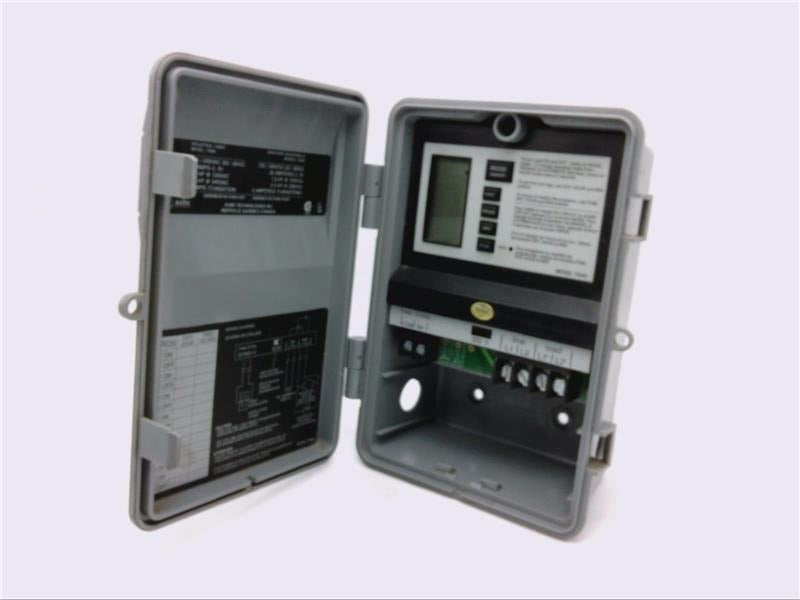

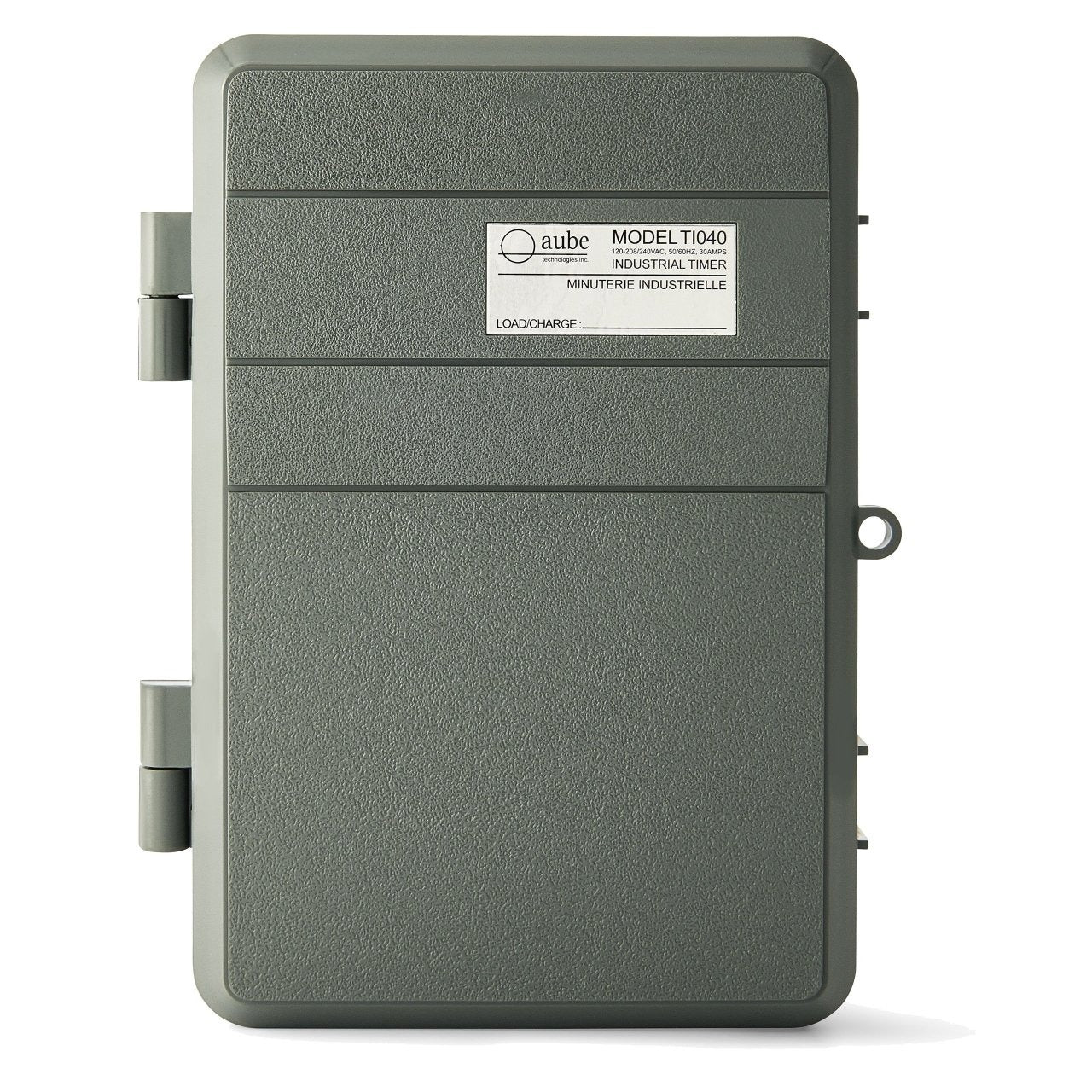

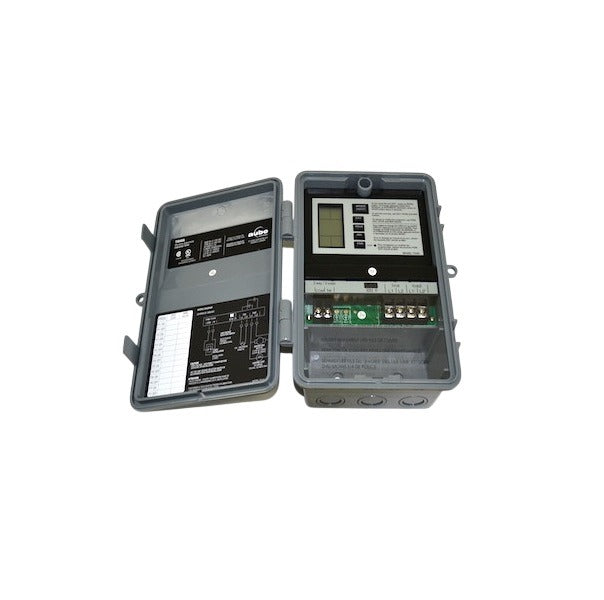

Resideo TI040 Programmable Indoor Outdoor Timer 120/240V (NEMA 3R)

Product Description

Resideo TI040 is a programmable indoor/outdoor timer that provides field-selectable 120/240 V operation and versatile scheduling for lighting, irrigation, pumps, and other electrical loads. It supports up to 10 on/off events per day, sunrise/sunset-based programming and weekly/daily scheduling. The unit includes an LCD display, manual override and temporary bypass, a lockable NEMA 3R weather-proof enclosure, 30-day program retention during power outages, and terminals for #14 to #10 AWG wiring.

• Field-selectable 120 V or 240 V operation with selectable voltage switch and LCD display for programming
• Programmable scheduling: up to 10 on/off events per day, weekly/daily options, sunrise/sunset-based programming, and 30-day program retention during power loss
• Heavy-duty lockable NEMA 3R weather-proof enclosure; rated up to 30 A resistive with motor ratings of 1.5 HP @ 120 V and 2 HP @ 240 V; terminals for #14 to #10 AWG; multiswitch (3-way) compatible

Product Highlights

Programmable 120/240V timer with NEMA 3R enclosure, up to 10 daily programs, 30 A resistive rating, motor ratings 1.5 HP/2 HP, and 30-day power-loss memory

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TI040
