Description

Product Description

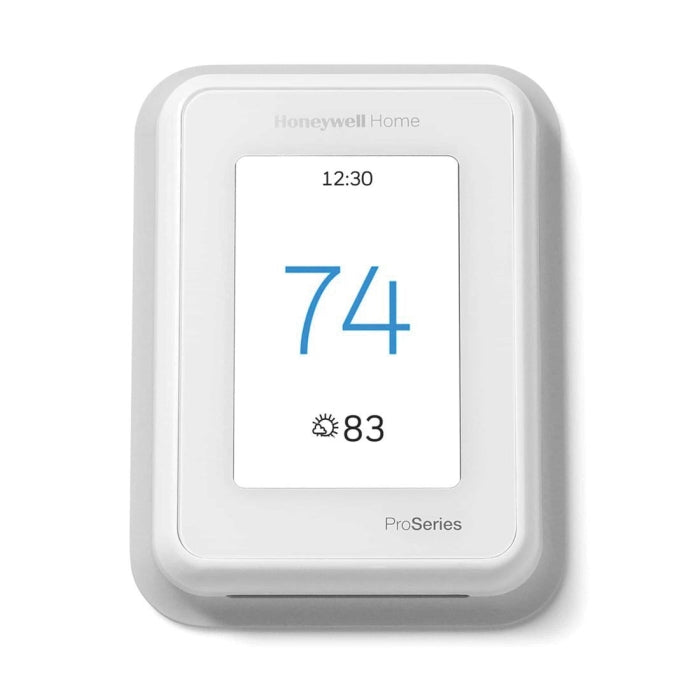

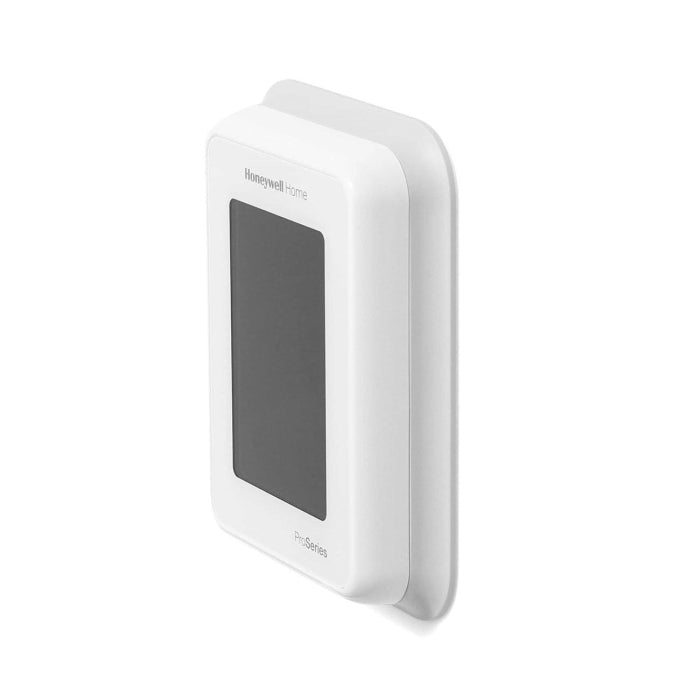

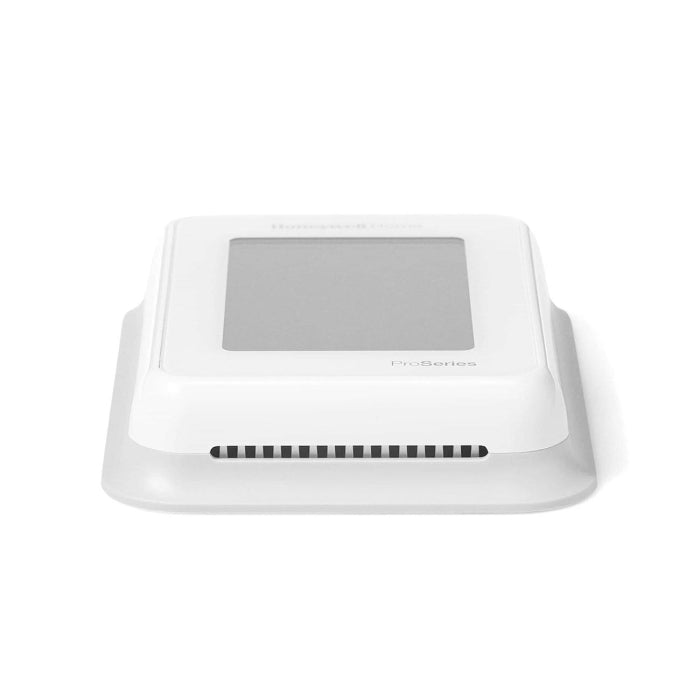

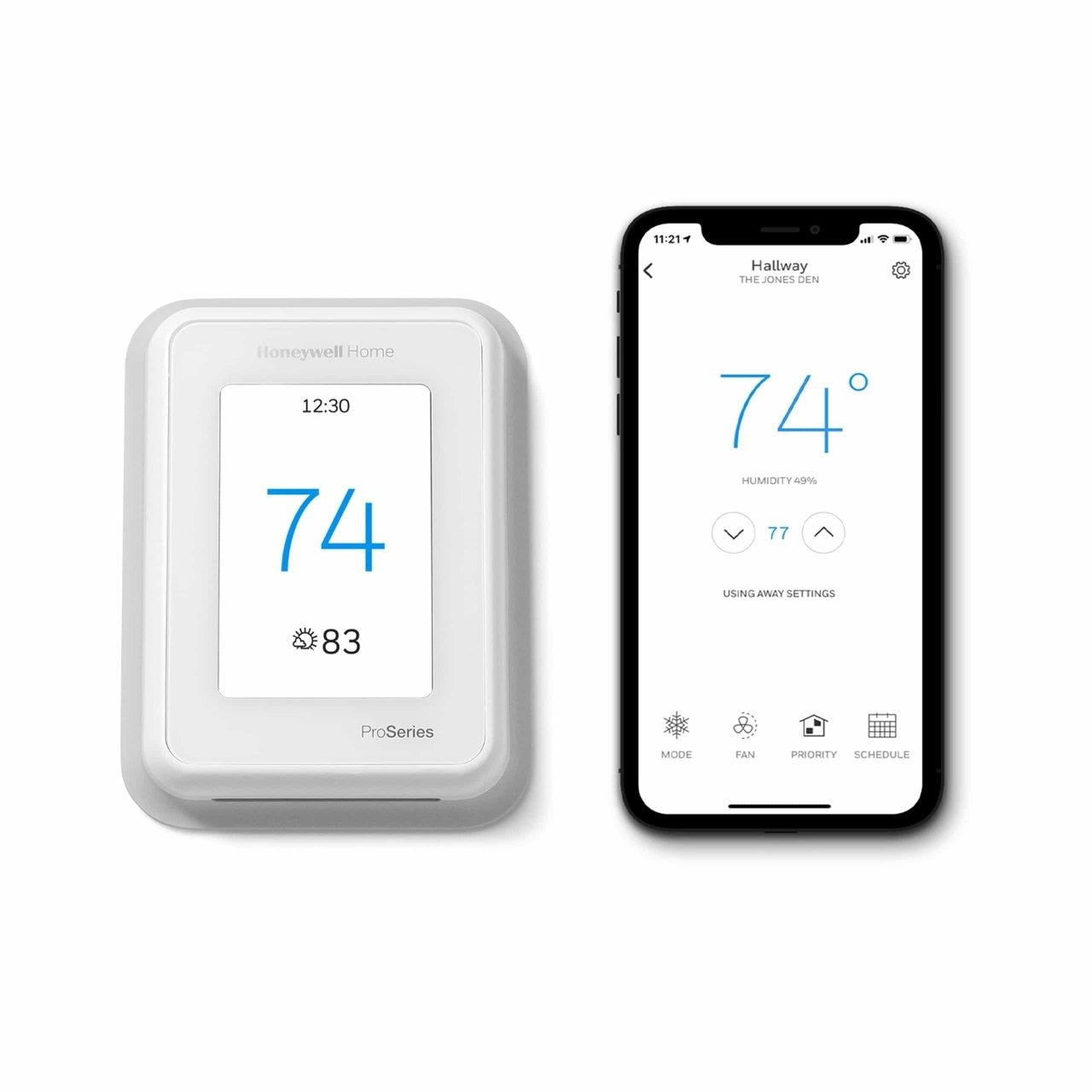

Resideo THX321WFS3001W/U is a T10+ Pro smart thermostat that provides programmable temperature control with an included RedLINK 3.0 room sensor. It supports up to 3 heat/2 cool heat pump or 2 heat/2 cool conventional systems, offers 7-day, 5-1-1 and 5-2 scheduling, and installs as a hardwired low-voltage thermostat. The unit features a color touchscreen, WiFi connectivity, and controls for humidification, dehumidification, and ventilation with compatible accessories.

Supports up to 3H/2C heat pump and 2H/2C conventional systems; programmable schedules (7-day, 5-1-1, 5-2).
Includes RedLINK 3.0 indoor sensor for room-priority control and wireless sensor support (900 MHz).
Color graphical touchscreen with WiFi (802.11 b/g/n), UWP mounting system, ENERGY STAR certified; hardwired 20–30 Vac power.

Product Highlights

T10+ Pro hardwired WiFi thermostat with RedLINK 3.0 sensor, touchscreen display, multi-stage system support, and IAQ control capability.

Product Information

Standard Information

Brand: RESIDEO
Manufacturer Part Number: THX321WFS3001W/U

Technical Specifications

Brand

RESIDEO

MPN

THX321WFS3001W/U

Model

T10+ Pro

Product Type

Programmable WiFi smart thermostat

Application/System Compatibility

24 Vac systems; Heat pump, conventional, gas, oil, electric, steam/gravity systems, dual fuel

Stages

Up to 3 Heat / 2 Cool (heat pump); Up to 2 Heat / 2 Cool (conventional)

Power Supply

Hardwired (20 to 30 Vac); battery supported

Input Voltage

20 to 30 Vac

Frequency

50 Hz, 60 Hz

Display Size

7.27 sq in

Touchscreen

Yes (color graphical)

WiFi

802.11 b/g/n (2.4 GHz)

RedLINK

Yes (900 MHz)

Radio Frequency

900 MHz

Radio Range

Up to 200 ft typical; up to 1500 ft open line-of-sight (manufacturer-quoted/typical)

Mounting Type

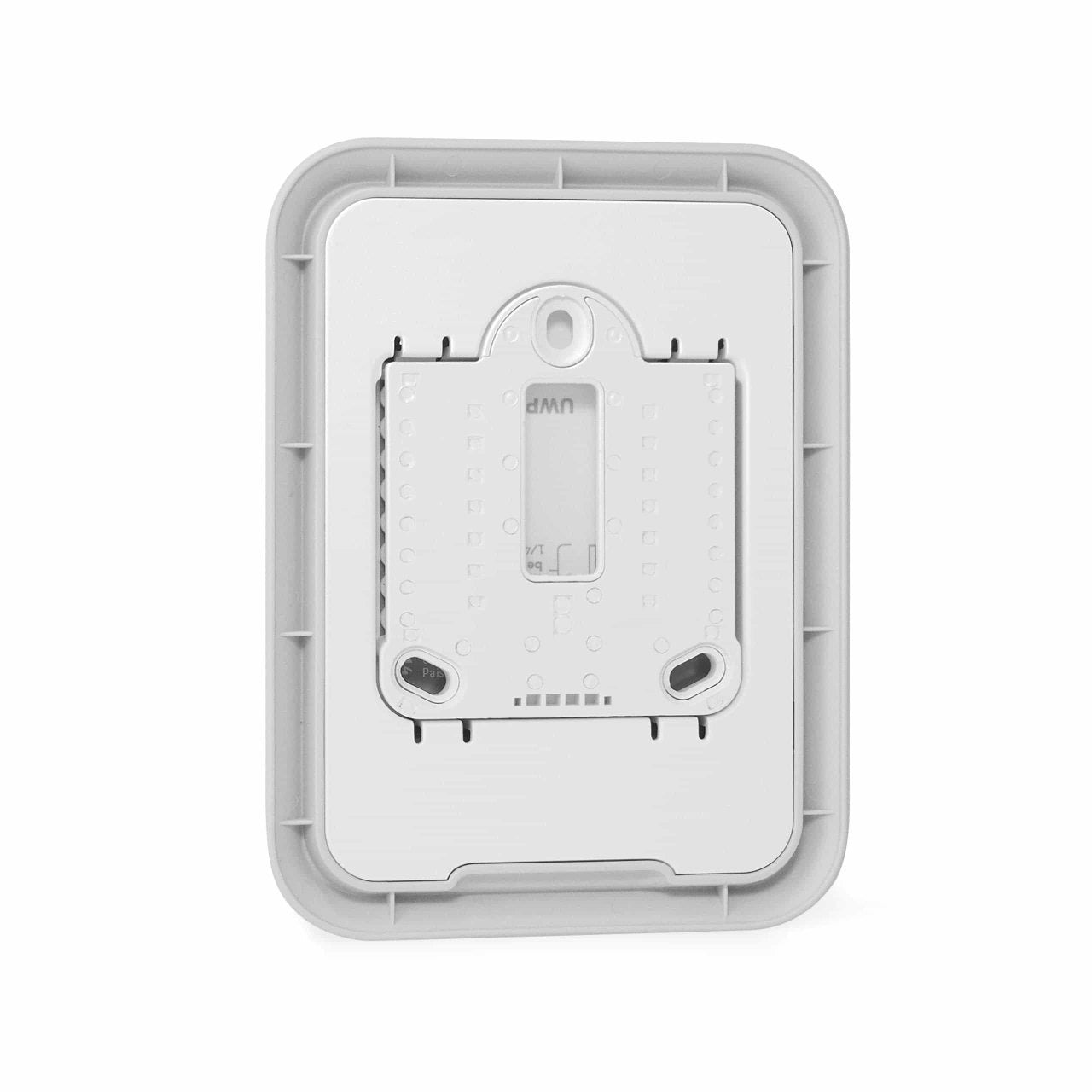

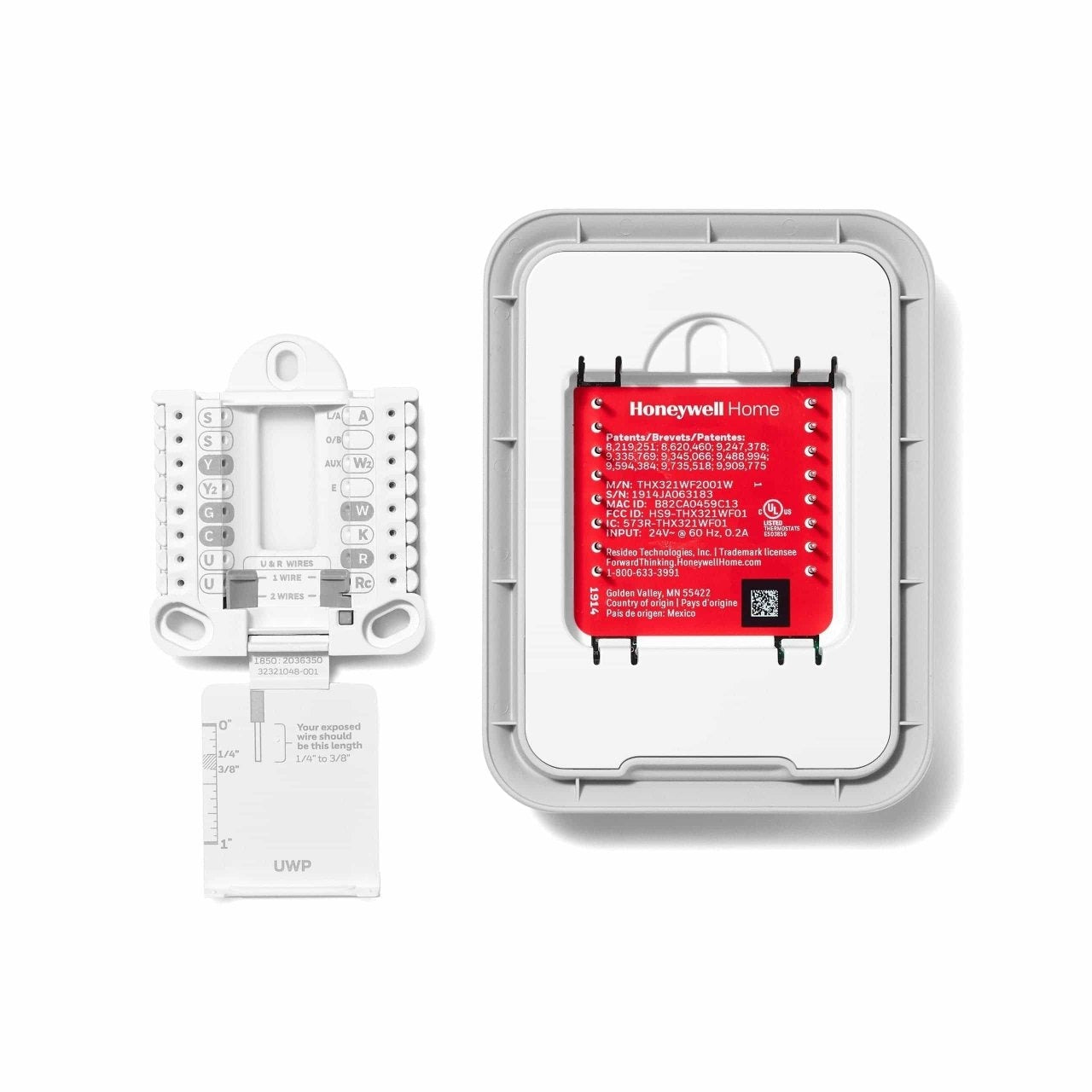

UWP mounting system

Dimensions

4.9 in H x 3.7 in W x 0.93 in D (125.4 x 94.1 x 23.68 mm)

Operating Temperature Range

37 F to 102 F (2.8 C to 39 C)

Operating Humidity Range

5% to 90% RH, non-condensing

Setpoint Temperature Range

Heat: 40 F to 90 F; Cool: 50 F to 99 F (Heat: 4.5 C to 32 C; Cool: 10 C to 37 C)

IAQ Capability

Humidification, dehumidification, ventilation (with compatible accessories)

Program Type

7-Day, 5-1-1, 5-2, 1 Week, Manual/Not Programmed

Energy Star Certified

Yes

Warranty

5 Years

Includes

T10+ WiFi thermostat, UWP mounting system, decorative cover plate, screws and anchors, professional install guide, getting started guide, RedLINK 3.0 indoor sensor

Compatible Apps

Resideo App, First Alert App

Switch Type

Relay

Terminal Designations

RC, R, C, W, O/B, Y, Y2, G, E, AUX, K, L, U, S

Communication Type

WiFi, RedLINK

Mounting Location

Wall
