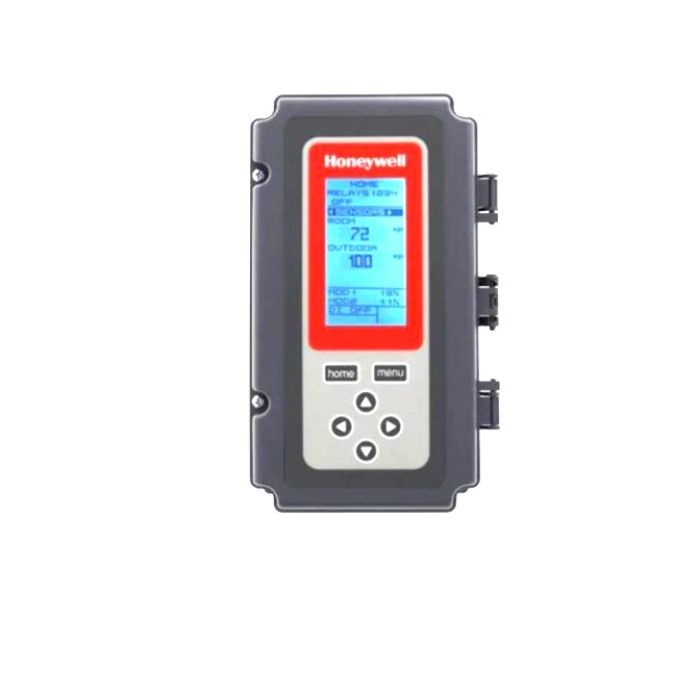

Honeywell T775M2014/U Electronic Stand-Alone Controller

Product Description

The Honeywell T775M2014/U is an electronic stand-alone controller designed for efficient heating and cooling management. This controller is equipped with a user-friendly graphical interface, making it suitable for both experienced technicians and newcomers in the HVAC field.

• Features four SPDT relay outputs and two analog outputs.
• Supports two independent modulating outputs for precise control.
• Includes a NEMA 4X enclosure for protection in harsh environments.

Product Highlights

This controller integrates an internal time clock scheduler that enhances operational efficiency, enabling modulating high or low limit control.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: T775M2014/U

Technical Specifications

• Power Supply: 24, 120, or 240 VAC
• Approvals: UL 60730-1 for US and Canada
• Operating Conditions: -40 F to 125 F (-40 C to 52 C), RH: 5% to 95% non-condensing
• Relay Outputs: Four SPDT
• Analog Outputs: Two
• Sensor Inputs: Two
